Beskrivelse
Detaljer
• Ultra-low noise discrete MIC Preamps with +48V Phantom Power
• Compressors control on first 8 MIC channels
• 3-band EQ with sweepable MID and Peak LEDs on
each MIC channels. 4-band EQ and Peak LEDs on Stereo channels.
• Built-in 24-bit DSP effect with 100 presets.
• Built-in USB Playback/Record module

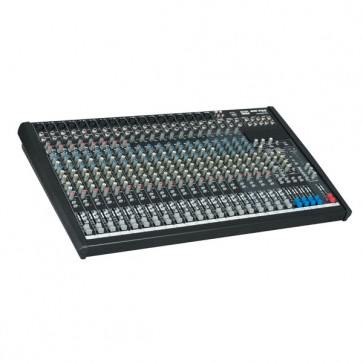

The GIG-244 CFX Mixing Console is packed with features that cannot be found in other consoles of it's size: 14 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3 band equalizer for HI, MID SWEEP and LOW controls, as well as 3 auxiliary control, build-in 24-bit DSP effect with 100 presets, highly accurate 12-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs.
• Compressors control on first 8 MIC channels
• 3-band EQ with sweepable MID and Peak LEDs on
each MIC channels. 4-band EQ and Peak LEDs on Stereo channels.
• Built-in 24-bit DSP effect with 100 presets.
• Built-in USB Playback/Record module
The GIG-244 CFX Mixing Console is packed with features that cannot be found in other consoles of it's size: 14 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3 band equalizer for HI, MID SWEEP and LOW controls, as well as 3 auxiliary control, build-in 24-bit DSP effect with 100 presets, highly accurate 12-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs.
Specifikationer
Detaljer
• Mono Channels
• Mic Input: XLR balanced
• Line input: 1/4- TRS balanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -35dBu ~ +15dBu
• LOW Cut: 100Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Stereo Channels
• Mic Input: XLR balanced
• Line input: 1/4- TRS/RCA unbalanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -20dBu ~ +20dBu
• LOW Cut: 75Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Channels EQ mono
• High: +/- 15dB @ 12kHz, Shelving
• Mid: +/- 15dB @ 100-8kHz, Sweepable
• Low: +/- 15dB @ 80Hz, Shelving
• Channels EQ stereo
• High: +/- 15dB @ 12kHz, Shelving
• Mid: +/- 15dB @ 3kHz
• Mid: +/- 15dB @ 500Hz
• Low: +/- 15dB @ 80Hz, Shelving
• Impedances
• Microphone input: 1,8K Ohm
• Other inputs: >10K Ohm
• Tape output: 1K Ohm
• All other outputs: 120 Ohm
• USB
• Record: 1 stereo pair (switchable between GRP 1-2
• and MAIN MIX)
• Playback: 1 stereo pair (switchable between Ch
• 23-24 and MAIN MIX)
• Power supply: AC 100- 240V 50Hz/60Hz
• Power consumption: 60 Watt
• Measurements: 753 x 435 x 85mm
• Weight: 9,35 Kg
• Mic Input: XLR balanced
• Line input: 1/4- TRS balanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -35dBu ~ +15dBu
• LOW Cut: 100Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Stereo Channels
• Mic Input: XLR balanced
• Line input: 1/4- TRS/RCA unbalanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -20dBu ~ +20dBu
• LOW Cut: 75Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Channels EQ mono
• High: +/- 15dB @ 12kHz, Shelving
• Mid: +/- 15dB @ 100-8kHz, Sweepable
• Low: +/- 15dB @ 80Hz, Shelving
• Channels EQ stereo
• High: +/- 15dB @ 12kHz, Shelving
• Mid: +/- 15dB @ 3kHz
• Mid: +/- 15dB @ 500Hz
• Low: +/- 15dB @ 80Hz, Shelving
• Impedances
• Microphone input: 1,8K Ohm
• Other inputs: >10K Ohm
• Tape output: 1K Ohm
• All other outputs: 120 Ohm
• USB
• Record: 1 stereo pair (switchable between GRP 1-2
• and MAIN MIX)
• Playback: 1 stereo pair (switchable between Ch
• 23-24 and MAIN MIX)
• Power supply: AC 100- 240V 50Hz/60Hz
• Power consumption: 60 Watt
• Measurements: 753 x 435 x 85mm
• Weight: 9,35 Kg
