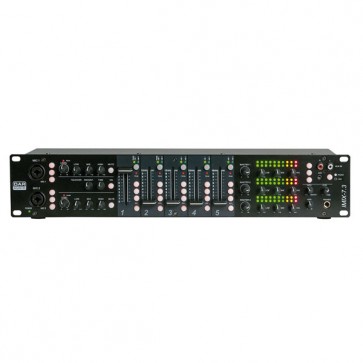

DAP IMIX-7.3 19" installationsmixer 7 kanaler 2U

Varenr: D2351
• 5 lyd kanaler & 2 mic. kanal - 15 input ialt
• High-, mid- og low eq. på hver af 3 master out
• 3 master out - kan bruges til 3 zoner
• Minijack/phono input for telefon/PC/MP3 på front
• Alle kanaler kan assignes til de 3 output
• Mikrofon m. high, mid, low, gain og level
• Minijack for telefon/PC/MP3 input på front
• Mål: 481 x 88 x 95m (DxBxH) - Vægt 2,84 kg - 19"


Professionel mixer, der med de 3 zoner kan bruges til at styre lyden i 3 forskellige rum.

Er varen på lager kan den ses i vores showroom.







Kan ses i vores udstilling hvis ikon ovenfor viser "på lager".


• Gain settings at backside
• Special front input for phone/mp3 devices
• Zone control for 3 balanced outputs
• 2 Mic, 11 Line inputs
The IMIX-7.3 is a compact installation mixer with zone control. It has exact the same functionality as the IMIX-7.1 but each input on the IMIX-7.3 can be routed to the desired output. This function makes it possible to control 3 areas with different music, sound level and EQ settings.

Input channels: 2 x Microphone, combo XLR/Jack 11 x Line, RCA 2 x Phono, RCA 1 x Phone, 3,5mm jack Output channels: 3 x Master Balanced, XLR 1 x REC output, RCA 1 x Headphones, 6.3mm Jack Master EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB Mic EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB Frequency response: 20Hz - 20Khz T.H.D.: <0.05% Dimensions: 481 x 88 x 95 mm (LxHxD) Powersupply: 230V AC, 50Hz Powerconsumption: 21Watt Weight: 2,8 Kg
Læs mere om DAP-Audio
3.745,00 DKK



Inkl. moms
  • Ring for leveringstid

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• 5 lyd kanaler & 2 mic. kanal - 15 input ialt
• High-, mid- og low eq. på hver af 3 master out
• 3 master out - kan bruges til 3 zoner
• Minijack/phono input for telefon/PC/MP3 på front
• Alle kanaler kan assignes til de 3 output
• Mikrofon m. high, mid, low, gain og level
• Minijack for telefon/PC/MP3 input på front
• Mål: 481 x 88 x 95m (DxBxH) - Vægt 2,84 kg - 19"


Professionel mixer, der med de 3 zoner kan bruges til at styre lyden i 3 forskellige rum.

Er varen på lager kan den ses i vores showroom.







Kan ses i vores udstilling hvis ikon ovenfor viser "på lager".


• Gain settings at backside
• Special front input for phone/mp3 devices
• Zone control for 3 balanced outputs
• 2 Mic, 11 Line inputs
The IMIX-7.3 is a compact installation mixer with zone control. It has exact the same functionality as the IMIX-7.1 but each input on the IMIX-7.3 can be routed to the desired output. This function makes it possible to control 3 areas with different music, sound level and EQ settings.

Input channels: 2 x Microphone, combo XLR/Jack 11 x Line, RCA 2 x Phono, RCA 1 x Phone, 3,5mm jack Output channels: 3 x Master Balanced, XLR 1 x REC output, RCA 1 x Headphones, 6.3mm Jack Master EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB Mic EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB Frequency response: 20Hz - 20Khz T.H.D.: <0.05% Dimensions: 481 x 88 x 95 mm (LxHxD) Powersupply: 230V AC, 50Hz Powerconsumption: 21Watt Weight: 2,8 Kg

Leverandør beskrivelse:
• Gain settings at backside
• Special front input for phone/mp3 devices
• Zone control for 3 balanced outputs
• 2 Mic, 11 Line inputs
The IMIX-7.3 is a compact installation mixer with zone control. It has exact the same functionality as the IMIX-7.1 but each input on the IMIX-7.3 can be routed to the desired output. This function makes it possible to control 3 areas with different music, sound level and EQ settings.

Specifikationer

Detaljer

• Input channels: 2 x Microphone, combo XLR/Jack
• 11 x Line, RCA
• 2 x Phono, RCA
• 1 x Phone, 3,5mm jack
• Output channels: 3 x Master Balanced, XLR
• 1 x REC output, RCA
• 1 x Headphones, 6.3mm Jack
• Master EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB
• Mic EQ: 80Hz, 1KHz, 12KHz, -12dB / +12dB
• Frequency response: 20Hz - 20Khz
• T.H.D.: <0.05%
• Dimensions: 481 x 88 x 95 mm (LxHxD)
• Powersupply: 230V AC, 50Hz
• Powerconsumption: 21Watt
• Weight: 2,8 Kg
