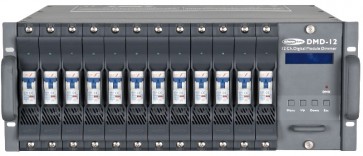

DMD-12 - 12 kanals modulopbygget dæmper 12x10A

• DMX dæmper 12x2200W m. automatsikringer
• Induktiv og restriktiv belastning
• Både DMX og 0-10V in- & output
• Display m. info read out
• Ingen stik i output (hardwired)
• Minimumsbelastning pr. kanal skal være 60watt
• Bør kun monteres af elektriker
• Mål 19" x 4Unit x 380mm (BxHxD) 25kg


• Redesigned and improved modular dimmer
• Ideal dimmer for touring and fixed installation
• Clear LCD display for all menu settings
• Strong 19 inch housing
• Variable Fan speed cooling system


• Power supply: AC 220 V - 50/60 Hz, single phase
• connection
• Power supply: AC 380 V - 50/60 Hz, 3-phase
• connection
• Output power: Max. 10 Amp each channel
• Output connector: Terminal screw connector
• Circuit breaker: 10 A
• Control signal: DMX-512, Analogue 0-10 V
• Protection: Short circuit, temperature, overload
• Dimensions: 483 x 440 x 133 mm (LxWxH)
• Weight: 25 kg

Leverandør beskrivelse:
• Redesigned and improved modular dimmer
• Ideal dimmer for touring and fixed installation
• Clear LCD display for all menu settings
• Strong 19 inch housing
• Variable Fan speed cooling system
