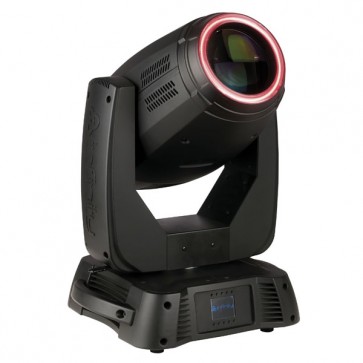

Showtec Infinity iB-16R 330W Moving beam

Varenr: 41532
• 111.000 Lux @ 15 meter
• Two prisms with overlay effect
• 2.5° to 8° zoom in beam mode, 5° to 19° zoom in
spot mode for variable beam size options
• Two gobo wheels, 1 rotating and 1 static
• Auto-Focus function
The iB-16R is a truly versatile moving head offering a beam, spot and wash effect in one. This in combination with the powerful Osram Sirius 330W lamp offering a great punch of light makes this IB-16R to the ultimate tool for the most demanding lighting professional. The fixture delivers an extreme output of 111.000 Lux @ 15m with an extremely tight beam angle of 1-4.5° in beam mode and 5-19° in spot mode. It offers two prisms (5 facet linear, and...
Se mere
Læs mere om Infinity
28.170,00 DKK



Inkl. moms
  • Ring for leveringstid

Video

Beskrivelse

Detaljer

• 111.000 Lux @ 15 meter
• Two prisms with overlay effect
• 2.5° to 8° zoom in beam mode, 5° to 19° zoom in
spot mode for variable beam size options
• Two gobo wheels, 1 rotating and 1 static
• Auto-Focus function
The iB-16R is a truly versatile moving head offering a beam, spot and wash effect in one. This in combination with the powerful Osram Sirius 330W lamp offering a great punch of light makes this IB-16R to the ultimate tool for the most demanding lighting professional. The fixture delivers an extreme output of 111.000 Lux @ 15m with an extremely tight beam angle of 1-4.5° in beam mode and 5-19° in spot mode. It offers two prisms (5 facet linear, and 8 facet) which can be overlayed and both are rotatable in both directions. Furthermore it is equipped with 2 gobo wheels and a colour wheel.

Specifikationer

Detaljer

• Lamp:
• Light Source: Osram Sirius, 330W, X8, 7500K
• Lamp Socket: E20.6
• Beam Angle: 1° to 4.5° (Beam Mode)
• 3° to 10° (Spot Mode)
• Field Angle: 2.5° to 8° (Beam Mode)
• 5° to 19° (Spot Mode)
• Electrical:
• Input voltage: 100 to 240V AC 50/60Hz
• (auto-ranging)
• Powerconsumption: 522W
• Control:
• On-Board: Battery powered full color display
• including gravity sensor
• Mode: DMX, Auto, Master/Slave
• Control protocol: DMX-512
• Control personality: Advanced 31ch / Basic 26ch
• Wireless DMX: optional available
• Optical system:
• Dimmer: 0-100% Mechanical
• Strobe: 0-20Hz
• Focus: Motorized
• Zoom: 2.5° to 8° (Beam Mode)
• 5° to 19° (Spot Mode)
• Prism 1: 8 facet rotating prism
• Prism 2: 5 facet linear rotating prism
• Frost: Yes
• Movement:
• Pan: 540°
• Tilt: 260°
• Pan/Tilt resolution: 16 bit
• Special: Pan/Tilt, Color/Gobo change blackout,
• User-selectable Pan & Tilt ranges,
• 540°/360°/180°/90°, Reverse Pan / Tilt movement.
• Gobos & Colors
• Gobo wheel 1: 9 + open (9 glass), rotating,
• interchangeable, indexing, slot-n-lock
• Gobo wheel 2: 14 + open (14 metal), continuous
• scroll at variable speed.
• Gobo function: Gobo-flow effect, Gobo shake.
• Colors: 13 + white, split colors, continuous
• scroll at variable speeds
• Color effect: Split-colors, Rainbow-flow effect
• Physical:
• Color: Black
• Housing: Metal & Flame retardant plastic
• Screw: Quick lock
• Fixture connection: XLR 3&5p Data in/out, Powercon
• input
• Dimensions: 410 x 327 x 638mm
• Weight: 25,1kg
• Certification and Safety:
• Certification: CE
• Max Ambient temp.: 45°
• Minimum distance objects: 23m
