LED Commander Pro

Varenr: 50725
• 8 Individual programmable channel displays
• Control 8 LED fixtures up to 8 channels each
• Free patchable channels
• Memory for 16 scenes and 16 chases
• 2 Aux channels to control foggers and strobes

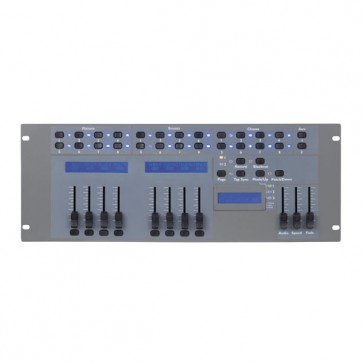

The LED Commander Pro is the successor of the LED commander. The upgrade is simple but unique and very useful. The LED commander Pro has displays above each channel fader that shows the actual channel function. Because there are many different led fixtures and all with other channel settings it is hard to remember which channel has which function. The displays above the channels are fully programmable by the user. No you can program your channel name in these displays which will be very useful during live operation. The displays show the programmed channel names and the channel value. Besides this unique function the LED commander pro also has all the benefits of the already successful LED commander. It can control 8 different group of fixtures simultaneously. With the 8 patchable channel faders you can control all functionalities of the LED par in your desired order. It has 2 auxiliary channels which are very useful for foggers or strobes. Furthermore the unit has 16 programmable scenes and 16 programmable chases.

Fixtures: 8 + 2 Aux channels Scenes: 16 Chases: 16 Run mode: Auto, Music, Manual DMX-512: 66 Channels DMX connector: 3 Pole XLR F USB: 5VDC for mini-light Audio input: RCA, 100mv - 1Vpp MIDI: In, Out, Thru MIDI connector: 5P DIN Power Supply: 9-12VDC - 1000mA Power connector: Adapter (included) Power consumption: 20W Dimensions: 482 x 156 x 75 (LxWxH) Weight: 3,1Kg
Læs mere om Showtec
2.399,00 DKK



Inkl. moms
  • Udgået

Video

Beskrivelse

Detaljer

• 8 Individual programmable channel displays
• Control 8 LED fixtures up to 8 channels each
• Free patchable channels
• Memory for 16 scenes and 16 chases
• 2 Aux channels to control foggers and strobes
The LED Commander Pro is the successor of the LED commander. The upgrade is simple but unique and very useful. The LED commander Pro has displays above each channel fader that shows the actual channel function. Because there are many different led fixtures and all with other channel settings it is hard to remember which channel has which function. The displays above the channels are fully programmable by the user. No you can program your channel name in these displays which will be very useful during live operation. The displays show the programmed channel names and the channel value. Besides this unique function the LED commander pro also has all the benefits of the already successful LED commander. It can control 8 different group of fixtures simultaneously. With the 8 patchable channel faders you can control all functionalities of the LED par in your desired order. It has 2 auxiliary channels which are very useful for foggers or strobes. Furthermore the unit has 16 programmable scenes and 16 programmable chases.

Fixtures: 8 + 2 Aux channels Scenes: 16 Chases: 16 Run mode: Auto, Music, Manual DMX-512: 66 Channels DMX connector: 3 Pole XLR F USB: 5VDC for mini-light Audio input: RCA, 100mv - 1Vpp MIDI: In, Out, Thru MIDI connector: 5P DIN Power Supply: 9-12VDC - 1000mA Power connector: Adapter (included) Power consumption: 20W Dimensions: 482 x 156 x 75 (LxWxH) Weight: 3,1Kg

Leverandør beskrivelse:
• 8 Individual programmable channel displays
• Control 8 LED fixtures up to 8 channels each
• Free patchable channels
• Memory for 16 scenes and 16 chases
• 2 Aux channels to control foggers and strobes
The LED Commander Pro is the successor of the LED commander. The upgrade is simple but unique and very useful. The LED commander Pro has displays above each channel fader that shows the actual channel function. Because there are many different led fixtures and all with other channel settings it is hard to remember which channel has which function. The displays above the channels are fully programmable by the user. No you can program your channel name in these displays which will be very useful during live operation. The displays show the programmed channel names and the channel value. Besides this unique function the LED commander pro also has all the benefits of the already successful LED commander. It can control 8 different group of fixtures simultaneously. With the 8 patchable channel faders you can control all functionalities of the LED par in your desired order. It has 2 auxiliary channels which are very useful for foggers or strobes. Furthermore the unit has 16 programmable scenes and 16 programmable chases.

Specifikationer

Detaljer

• Fixtures: 8 + 2 Aux channels
• Scenes: 16
• Chases: 16
• Run mode: Auto, Music, Manual
• DMX-512: 66 Channels
• DMX connector: 3 Pole XLR F
• USB: 5VDC for mini-light
• Audio input: RCA, 100mv - 1Vpp
• MIDI: In, Out, Thru
• MIDI connector: 5P DIN
• Power Supply: 9-12VDC - 1000mA
• Power connector: Adapter (included)
• Power consumption: 20W
• Dimensions: 482 x 156 x 75 (LxWxH)
• Weight: 3,1Kg

Download

50725_MANUAL_GB_V2.pdf
