• Patch led screens without use of a computer and Led Studio
• 802 Sendercard included
• DVI-D and HDMI input

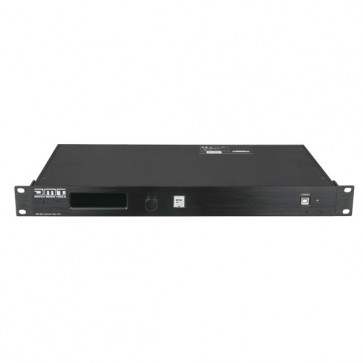

The DMT SB-803 follows up SB-801 and is the only piece of equipment required between the video source and your LED screen.The device takes a digital video (DVI or HDMI) input and converts it, so it can be sent over a single CAT-5(RJ45)cable to your LED Screen. Connections are made by Neutrik Ethercon connectors ensuring a reliable connection in any situation. Maximum 4 pcs of SB-803 can be used in cascade for higher resolution screen. The DMT SB-803 is equipped with a sendercard which is compatible with all DMT LED Screens. With SB-803 you don't have to worry about which version Led Studio to use. SB-803 let's you patch your led screen directly from the internal menu, so no need for a computer with Led Studio anymore.
• 802 Sendercard included
• DVI-D and HDMI input
The DMT SB-803 follows up SB-801 and is the only piece of equipment required between the video source and your LED screen.The device takes a digital video (DVI or HDMI) input and converts it, so it can be sent over a single CAT-5(RJ45)cable to your LED Screen. Connections are made by Neutrik Ethercon connectors ensuring a reliable connection in any situation. Maximum 4 pcs of SB-803 can be used in cascade for higher resolution screen. The DMT SB-803 is equipped with a sendercard which is compatible with all DMT LED Screens. With SB-803 you don't have to worry about which version Led Studio to use. SB-803 let's you patch your led screen directly from the internal menu, so no need for a computer with Led Studio anymore.
Specifikationer
Detaljer
• Sendercard Type: 802
• Video input: DVI-D + HDMI
• Scaling : NO
• Outputs to screen: 2 ethercon(RJ45) soft-patched
• connectors
• Power input: Powercon IN/OUT
• Setup port: USB-B,
• RS 232 connection on the back side. The RS 232 is
• used for cascade
• Screen brightness control: 16-levels adjustment on
• the front panel
• Resolutions: 1024 x 768, 1280 x 768, 1280 x 800,
• 1280 x 768, 1280 x 1024, 1366 x 768, 1440 x 900,
• 1440 x 1080, 1600 x 576, 1600 x 900, 1600 x 1000,
• 1600 x 1200, 1680 x 1050, 1728 x 1296, 1920 x
• 1080
• Power consumption: 25 watts
• Input voltage: 85-264 volts,50-60Hz
• Weight: 4.5Kg(10lbs)
• Dimensions: 48cm*26.8cm*4.4cm
• Standard rack size: 1U
• Cooling: Active by built in fan.
• Sender Card supports following resolutions
• 60HZ output: TS802(D) support capability
• No Max support Note
• Width Height Total
• 1 2048 320 655360 1 cable
• 3 1984 320 634880 1 cable
• 4 1920 320 614400 1 cable
• 5 1856 352 653312 1 cable
• 6 1792 352 630784 1 cable
• 7 1728 352 608256 1 cable
• 8 1664 384 638976 1 cable
• 9 1600 384 614400 1 cable
• 10 1536 416 638976 1 cable
• 11 1472 416 612352 1 cable
• 12 1408 448 630784 1 cable
• 13 1344 480 645120 1 cable
• 14 1280 512 655360 1 cable
• 15 1216 512 622592 1 cable
• 16 1152 512 589824 1 cable
• 17 1088 512 557056 1 cable
• 18 1024 640 655360 1 cable
• 19 896 640 573440 1 cable
• 20 832 640 532480 1 cable
• 21 768 640 491520 1 cable
• 22 704 640 450560 1 cable
• 23 640 640 409600 1 cable
• 60HZ output: TS802(D) support capability
• No Max support Note
• Width Height Total
• 1 2048 640 1310720 2 cables
• 3 1920 672 1290240 2 cables
• 4 1856 704 1306624 2 cables
• 5 1792 720 1290240 2 cables
• 6 1728 736 1271808 2 cables
• 7 1664 768 1277952 2 cables
• 8 1600 800 1280000 2 cables
• 9 1536 832 1277952 2 cables
• 10 1472 880 1295360 2 cables
• 11 1408 928 1306624 2 cables
• 12 1344 960 1290240 2 cables
• 13 1280 1024 1310720 2 cables
• 14 1216 1024 1245184 2 cables
• 15 1152 1024 1179648 2 cables
• 16 1088 1024 1114112 2 cables
• Video input: DVI-D + HDMI
• Scaling : NO
• Outputs to screen: 2 ethercon(RJ45) soft-patched
• connectors
• Power input: Powercon IN/OUT
• Setup port: USB-B,
• RS 232 connection on the back side. The RS 232 is
• used for cascade
• Screen brightness control: 16-levels adjustment on
• the front panel
• Resolutions: 1024 x 768, 1280 x 768, 1280 x 800,
• 1280 x 768, 1280 x 1024, 1366 x 768, 1440 x 900,
• 1440 x 1080, 1600 x 576, 1600 x 900, 1600 x 1000,
• 1600 x 1200, 1680 x 1050, 1728 x 1296, 1920 x
• 1080
• Power consumption: 25 watts
• Input voltage: 85-264 volts,50-60Hz
• Weight: 4.5Kg(10lbs)
• Dimensions: 48cm*26.8cm*4.4cm
• Standard rack size: 1U
• Cooling: Active by built in fan.
• Sender Card supports following resolutions
• 60HZ output: TS802(D) support capability
• No Max support Note
• Width Height Total
• 1 2048 320 655360 1 cable
• 3 1984 320 634880 1 cable
• 4 1920 320 614400 1 cable
• 5 1856 352 653312 1 cable
• 6 1792 352 630784 1 cable
• 7 1728 352 608256 1 cable
• 8 1664 384 638976 1 cable
• 9 1600 384 614400 1 cable
• 10 1536 416 638976 1 cable
• 11 1472 416 612352 1 cable
• 12 1408 448 630784 1 cable
• 13 1344 480 645120 1 cable
• 14 1280 512 655360 1 cable
• 15 1216 512 622592 1 cable
• 16 1152 512 589824 1 cable
• 17 1088 512 557056 1 cable
• 18 1024 640 655360 1 cable
• 19 896 640 573440 1 cable
• 20 832 640 532480 1 cable
• 21 768 640 491520 1 cable
• 22 704 640 450560 1 cable
• 23 640 640 409600 1 cable
• 60HZ output: TS802(D) support capability
• No Max support Note
• Width Height Total
• 1 2048 640 1310720 2 cables
• 3 1920 672 1290240 2 cables
• 4 1856 704 1306624 2 cables
• 5 1792 720 1290240 2 cables
• 6 1728 736 1271808 2 cables
• 7 1664 768 1277952 2 cables
• 8 1600 800 1280000 2 cables
• 9 1536 832 1277952 2 cables
• 10 1472 880 1295360 2 cables
• 11 1408 928 1306624 2 cables
• 12 1344 960 1290240 2 cables
• 13 1280 1024 1310720 2 cables
• 14 1216 1024 1245184 2 cables
• 15 1152 1024 1179648 2 cables
• 16 1088 1024 1114112 2 cables
