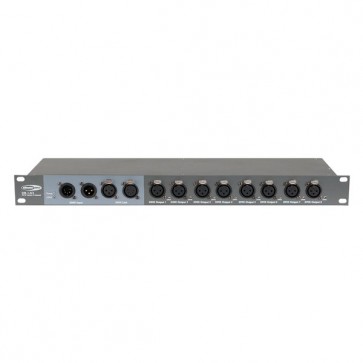

Showtec DB-1-8 - DMX splitter/booster 8 x 3pol out

• DMX booster/splitter med 1 input & 8 output
• 8 stk. 3 polet XLR output
• Både 3 og 5 polet XLR input og link
• Alle in- og output er elektronisk isoleret
• Størrelse: 19" - 1U
• M10 gevind bag på så den kan monteres på
clamp/G-krog og derved monteres i bro.
• 483x134x46 mm - 2,6 kg
DMX booster/splitter til at distribuere et DMX ud til 8 outputs. LED indikatorer på hvert output der fortæller om der er data på linien. Med link output kan flere DMX bostere linkes sammen.

Leverandør beskrivelse:
• DMX splitter for 8 outputs
• Electrical isolation between in and output
• DMX Indication LEDs on in-& outputs
• 3P XLR outputs
• M10 nut at backside for truss clamps
The DB models from Showtec are universal DMX-512 optical splitters. They are designed to distribute the incoming DMX signal, in daisy chain configurations, into multiple separate outputs with an additional -True" port. They can be mounted in any 19" rack or into the truss by the M10 nut on the rear end of the unit. It has clear LEDs to show the DMX signal status of each output and input. There are four models available, DB-1-4 with or without RDM which has 4 outputs and 3 & 5 Pole XLR connectors, and the DB-1-8 with or without RDM which has 8 outputs with 3P XLR connectors.
