• Extensive zoom range
• Solid aluminium housing
• RGB backlight glare effect

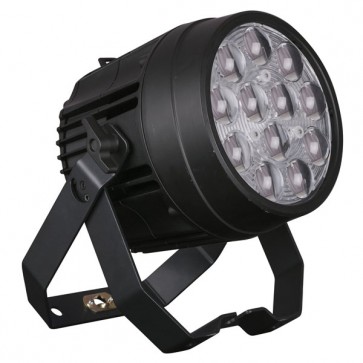

The NanoQ 12 Q4 offers an extensive wide zoom range from 10° up to 55° in combinations with full RGBW color control and a vivid back light effect. It has a compact and sturdy housing which is designed to meet the demands of the most extreme tours. The fixture has a double bracket with quick-lock connector which makes it possible to use the fixture in any position without the need of any tools. (Dedicated bracket optional available). It has full connectivity with 3 and 5 pole XLR connectors as well Blue and White Power connectors. A bright LCD displays makes it easy to control all settings or select the right preprogramed color either program.
• Solid aluminium housing
• RGB backlight glare effect
The NanoQ 12 Q4 offers an extensive wide zoom range from 10° up to 55° in combinations with full RGBW color control and a vivid back light effect. It has a compact and sturdy housing which is designed to meet the demands of the most extreme tours. The fixture has a double bracket with quick-lock connector which makes it possible to use the fixture in any position without the need of any tools. (Dedicated bracket optional available). It has full connectivity with 3 and 5 pole XLR connectors as well Blue and White Power connectors. A bright LCD displays makes it easy to control all settings or select the right preprogramed color either program.
Specifikationer
Detaljer
• Light Source
• LED System: 12 x 10W RGBW LEDs
• Backlight System: 21 x RGB 5050 SMD
• Output@2m: 27700lux (10°)
• Electrical
• Power Supply: AC 100-240V 50/60 Hz
• Power Consumption: 130W
• Control
• Control Mode: Auto/ build-in programs,
• Master/slave, DMX
• DMX channels: 6, 10, 14ch
• Optical system
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Beam Angle: 5°-60°
• Physical
• Dimensions: 204 x 256 x 286 mm
• Weight: 4,1 kg
• Housing: Di-cast powder coated Aluminium
• Color: Black
• Power Connectors: Pro Power connector
• Data Connectors: XLR 3 & 5 pole
• Cooling: Forced
• Safety
• Operation temperature: -10~40°C
• IP-Rating: IP-20
• LED System: 12 x 10W RGBW LEDs
• Backlight System: 21 x RGB 5050 SMD
• Output@2m: 27700lux (10°)
• Electrical
• Power Supply: AC 100-240V 50/60 Hz
• Power Consumption: 130W
• Control
• Control Mode: Auto/ build-in programs,
• Master/slave, DMX
• DMX channels: 6, 10, 14ch
• Optical system
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Beam Angle: 5°-60°
• Physical
• Dimensions: 204 x 256 x 286 mm
• Weight: 4,1 kg
• Housing: Di-cast powder coated Aluminium
• Color: Black
• Power Connectors: Pro Power connector
• Data Connectors: XLR 3 & 5 pole
• Cooling: Forced
• Safety
• Operation temperature: -10~40°C
• IP-Rating: IP-20
