Beskrivelse
Detaljer

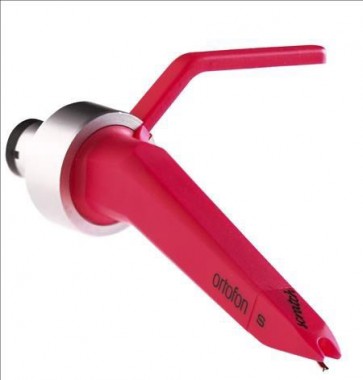

• Komplet Concorde pick-up til scratch brug
• Concorde design, montage på pickup arm
• Tracking: 3-5 - 4 gram anbefalet
• Leveres i transportæske, der kan genbruges
til transport og opbevaring. Dette er pick-up' en til scratch DJ´s. Absolut den pick-up, der holder best til det hårde sratch liv. Bruges af stort set alle anerkendte scratch DJ´s.
• Concorde design, montage på pickup arm
• Tracking: 3-5 - 4 gram anbefalet
• Leveres i transportæske, der kan genbruges
til transport og opbevaring. Dette er pick-up' en til scratch DJ´s. Absolut den pick-up, der holder best til det hårde sratch liv. Bruges af stort set alle anerkendte scratch DJ´s.
Specifikationer
Detaljer
• Output voltage at 1000Hz, 5cm/sec. - 7 mV
• Channel balance at 1kHz - 1,5 dB
• Channel separation at 1kHz - 25 dB
• Channel separation at 15 kHz - 15 dB
• Frequency range at -3dB - 20-20.000 Hz
• Frequency response - 20-15.000 Hz 3dB/-2dB
• Tracking ability at 315 Hz - 80 µm
• Compliance, dynamic lateral - 6 µm/m N
• Stylus type - Spherical
• Stylus tip radius - R 18 µm
• Tracking force range - 3,0-5,0 g (30-50 mN)
• Tracking force recommended - 4,0 g (40 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 750 Ohm
• Internal inductance - 450 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 200-600 pF
• Cartridge weight - 18,5 g
• Channel balance at 1kHz - 1,5 dB
• Channel separation at 1kHz - 25 dB
• Channel separation at 15 kHz - 15 dB
• Frequency range at -3dB - 20-20.000 Hz
• Frequency response - 20-15.000 Hz 3dB/-2dB
• Tracking ability at 315 Hz - 80 µm
• Compliance, dynamic lateral - 6 µm/m N
• Stylus type - Spherical
• Stylus tip radius - R 18 µm
• Tracking force range - 3,0-5,0 g (30-50 mN)
• Tracking force recommended - 4,0 g (40 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 750 Ohm
• Internal inductance - 450 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 200-600 pF
• Cartridge weight - 18,5 g
