• 4.5 degree high grade optics
• Full Pixel control
• Continious Pan & Tilt rotating
• 5x5 RGBW Matrix
• Selectable RGBW or CMY color mixing
• Combined Artnet & DMX contol

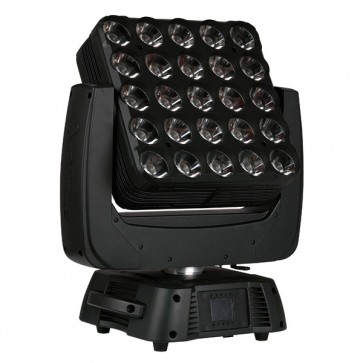

The Infinity iM-2515 offers unlimited freedom by its continuous rotating on both pan and tilt movement. This 5x5 Matrix is fully pixel controllabIe ensuring maximum creativity and control. It offers an enormous light output due to the Osram O-Star RGBW LED's in combination with the newly developed high grade optical system with a beam angle of just 4.5°. The high torque motors ensuring very fast movements and unlimited freedom of movement. Create dynamic effects, breath-taking visuals or just massive solid beams the Infinity iM-2515 is the right tool for every job.
• Full Pixel control
• Continious Pan & Tilt rotating
• 5x5 RGBW Matrix
• Selectable RGBW or CMY color mixing
• Combined Artnet & DMX contol
The Infinity iM-2515 offers unlimited freedom by its continuous rotating on both pan and tilt movement. This 5x5 Matrix is fully pixel controllabIe ensuring maximum creativity and control. It offers an enormous light output due to the Osram O-Star RGBW LED's in combination with the newly developed high grade optical system with a beam angle of just 4.5°. The high torque motors ensuring very fast movements and unlimited freedom of movement. Create dynamic effects, breath-taking visuals or just massive solid beams the Infinity iM-2515 is the right tool for every job.
Specifikationer
Detaljer
• Output:
• Lumen: 11.700
• Beam Angle: 4.5°
• Light Source: Osram Ostar 25x15W RGBW 4-in-1
• Electrical:
• Input voltage: 100-240V / 50-60Hz (auto ranging)
• Power consumption: 450W at full output
• Control:
• On Board: Battery powered full color display
• including gravity sensor
• Mode: DMX, Auto, Master/Slave
• Control protocol: DMX-512, Artnet
• Control personality: Advanced 123 ch / Basic 23ch
• / Artnet+Dmx 100+15
• Wireless DMX: optional available
• Optical system:
• Dimmer: 0-100%
• Dimmer curves: Linear, Square, I-Square, S curve
• Dimmer speed: Smooth, Fast
• Color balance: Separate RGBW adjustment
• Strobe 0-20Hz
• Movement:
• Pan: 540° and continuous
• Tilt: 270° and continuous
• Pan/Tilt resolution: 16 bit
• Special: Pan/Tilt change black out, User
• selectable Pan & Tilt ranges, 540°/360°/180°,
• Reverse Pan / Tilt movement.
• Physical:
• Color: Black
• Housing: Metal & Flame retardant plastic
• Fixture connections: XLR 3&5p Data in/out,
• Powercon in- output
• Dimensions: 366 x 485 x 586 mm
• Weight: 20 kg
• Certification and Safety:
• Certification: CE
• Max. ambient temp: 40°
• Lumen: 11.700
• Beam Angle: 4.5°
• Light Source: Osram Ostar 25x15W RGBW 4-in-1
• Electrical:
• Input voltage: 100-240V / 50-60Hz (auto ranging)
• Power consumption: 450W at full output
• Control:
• On Board: Battery powered full color display
• including gravity sensor
• Mode: DMX, Auto, Master/Slave
• Control protocol: DMX-512, Artnet
• Control personality: Advanced 123 ch / Basic 23ch
• / Artnet+Dmx 100+15
• Wireless DMX: optional available
• Optical system:
• Dimmer: 0-100%
• Dimmer curves: Linear, Square, I-Square, S curve
• Dimmer speed: Smooth, Fast
• Color balance: Separate RGBW adjustment
• Strobe 0-20Hz
• Movement:
• Pan: 540° and continuous
• Tilt: 270° and continuous
• Pan/Tilt resolution: 16 bit
• Special: Pan/Tilt change black out, User
• selectable Pan & Tilt ranges, 540°/360°/180°,
• Reverse Pan / Tilt movement.
• Physical:
• Color: Black
• Housing: Metal & Flame retardant plastic
• Fixture connections: XLR 3&5p Data in/out,
• Powercon in- output
• Dimensions: 366 x 485 x 586 mm
• Weight: 20 kg
• Certification and Safety:
• Certification: CE
• Max. ambient temp: 40°
