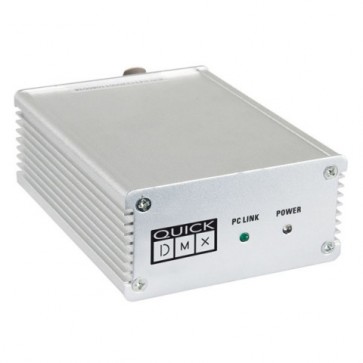

DMX PC/Mac styring - QuickDMX 512 kanaler

Varenr: 50051
• PC/Mac lysstyring m. 512 DMX kanaler via USB
• Software uden begrænsninger medfølger
• 1 scene kan downloades i boxen
• 3D visualiser, så man kan programmere "offline"
Fed PC baseret DMX lysstyring med 512 kanaler. 3D funktion, så man kan programmere uden at tilslutte lamper, macro funktion, stort bibliotek samt mulighed for selv at tilføje lamper og mm.

Til denne styring skal bruges Quick DMX software. Se under download fanen. Sweetlight software kan ikke bruges. DLT yder ikke support på software
Læs mere om Showtec
2.499,00 DKK



Inkl. moms
  • Ring for leveringstid

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• PC/Mac lysstyring m. 512 DMX kanaler via USB
• Software uden begrænsninger medfølger
• 1 scene kan downloades i boxen
• 3D visualiser, så man kan programmere "offline"
Fed PC baseret DMX lysstyring med 512 kanaler. 3D funktion, så man kan programmere uden at tilslutte lamper, macro funktion, stort bibliotek samt mulighed for selv at tilføje lamper og mm.

Til denne styring skal bruges Quick DMX software. Se under download fanen. Sweetlight software kan ikke bruges. DLT yder ikke support på software

Leverandør beskrivelse:
• Metal road proof casing
• Power & Link indication LEDs at front panel
• Unlimited nr. of different fixtures
• Full 512 DMX channels
• MIDI triggerable by "learning" mode
• Thermal protection on DMX ground
• Compatible with Mac & PC
With the "D512" interface it is possible to use Quick DMX software without any restriction for all 512 DMX channels. This interface can store one scene or chase for 512 DMX channels that will be played if connection with computer is lost. Please note that Quick DMX USB dongle only works with Quick DMX software. Download link: http://bit.ly/1pdFlGh For general help you can also go to : http://bit.ly/X4bDcv a technical forum for Quick DMX. Tutorials can be found in this link : http://bit.ly/1oHfq9m Quick DMX provides the ultimate solution for lighting control. It offers the possibility of direct control, from simple LED spots to the most complex moving light and pixel based fixtures, with a computer, the software and an interface. The computer is loaded with Quick DMX software to build and control the lighting show, by an interface via a USB port. The software is designed to be user-friendly and can easily be used by even those whose knowledge of DMX and light programming is limited. We offer a unique software, which is free to download from our web site download page. The software is available for Windows and MacOS. All software upgrades are free. THE SOFTWARE The software contains several views: Editor, Pixels, Live, Stand Alone. Each view has its own dedicated tabs to have direct access to all necessary functions and settings. Declare your lighting equipment in Editor > Fixtures. The library contains personality files for the most common fixtures (Spots, Bars, Moving heads, Color changer, Strobes, etc ...). This library is regularly updated to stay current with new fixture releases. If the light you are using is not included, it is easy to add and configure new ones. In V8 you are able to re-patch your fixtures without losing previous made scenes and generators. With Editor > Steps you can create scenes. The view manages many functionality's like:
• DMX values per fixture
• RGB color picker
• Chase step overview and editor
• Time and fade mode per channel
• 2D fixture view
• Fixtures grouping
In Generator, you can build complex lighting scenes within a few mouse clicks, it can handle pan/tilt movements, colors, gobo and effects, for a group of moving lights, with delay effects. It has preset shapes dedicated for dimmers, movements and colors. The V8 generator has several major improvements like:
• Edit your fixture order to create your desired
shape over your fixtures
• Possibility to split a multiple pan/tilt
fixtures and create shapes within one fixture
• Group RGB / CMY channels within a fixture to
easily create a color shape With Pixels it's easy to create chaser, rainbow, text effects or upload GIFs to use as template for your animated pixel show. Just add your devices with the correct horizontal and vertical pixels assign the color range and position on screen like the real setup. Pixels will do all calculations and generate all DMX values. In Live, you can play and customize the show depending of your needs (pages, buttons, presets). Buttons can be made for colors, effects movements but can also trigger a complete light scene or timeline multimedia file. While operating in live it's possible to overrule with the Editor. Live in V8 is improved and can also play generator and pixel files. With 3DView you can display the stage in 3 dimensions and it shows the lights moving in real time, from any point of view. Set stage size and place your objects and lighting fixtures. The program has a bank of basic objects (speakers, truss, music instruments, ...). You can also import your own objects. Set position of each object (or fixture). It is possible to set these parameters on a group of objects. Set textures, luminosity, smoke level for more realism. Timeline is a synchronized multimedia show editing software. It is able to play multiple file formats (video, picture, audio and light scenes). Drop the files into the timelines and slide them in the desired time. The possible applications are:
• basic -sound and light". The readable audio
files are wav, mp3, ogg and wma format.
• -video and light" on plasma screen or video
projector. The readable picture files are bmp, jpg, png, giff. The readable video files are avi, mpg, mpeg, mov, wmv. Overview of the main new features in QDMX V8:
• Fixture based programming, true DMX patching
• Pallets management
• Live can play generator and pixel files directly
without first converting to a scene file.
• Master faders in live can either be patched on
speed or on dimmer
• Multi RGB / Pan-Tilt fixtures management in
Steps and Generator

Specifikationer

Detaljer

• • Stand Alone: Yes (one scene or chase)
• • Operating System : Windows and Mac OSX
• • External power supply : USB power adapter 5VDC
• (not included)
• • DMX Connectors: 3-pin
• • Weight: 0.2kg
• • Size: 4.3 x 3.2 x 1.5in (108 x 80 x 37mm)

Download

50051_QUICK_DMX_7_1_78.zip
