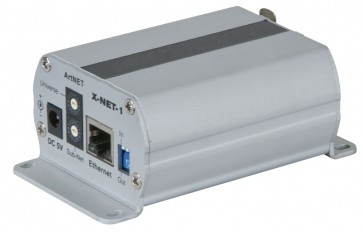

Artnet til DMX/RDM omformer

Varenr: 50802
• Bidirektionel Artnet til DMX/RDM omformer
• Konfigureres via DIP-switches
• Solidt aluminiumshus
• RJ45, XLR han & hun tilslutning
• Artnet, DMX512 (1990) & RDM protokol
• Dimentioner: 110 x 67,5 x 42,3 mm - 185 gram


Power Input: DC5V, 350mA Housing: Aluminum Extrusion Data in/out: RJ45 connector for ethernet 3pin XLR connectors for DMX/RD? Input/output Protocols: Artnet, DMX-512 (1990) & RDM protocol Protecting Rate: IP20 Operating Temperature: -10degrees to +50 degrees Storage Temperature: -20degrees to +70 degrees Dimensions: 110 x 67,5 x 42,3 mm Weight: 185 g
Læs mere om Showtec
2.499,00 DKK



Inkl. moms
  • Udgået

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• Bidirektionel Artnet til DMX/RDM omformer
• Konfigureres via DIP-switches
• Solidt aluminiumshus
• RJ45, XLR han & hun tilslutning
• Artnet, DMX512 (1990) & RDM protokol
• Dimentioner: 110 x 67,5 x 42,3 mm - 185 gram


Power Input: DC5V, 350mA Housing: Aluminum Extrusion Data in/out: RJ45 connector for ethernet 3pin XLR connectors for DMX/RD? Input/output Protocols: Artnet, DMX-512 (1990) & RDM protocol Protecting Rate: IP20 Operating Temperature: -10degrees to +50 degrees Storage Temperature: -20degrees to +70 degrees Dimensions: 110 x 67,5 x 42,3 mm Weight: 185 g

Leverandør beskrivelse:
• Bidirectional Artnet to DMX/RDM convertor
• Dip switches for selecting working mode
• Compact size
The Node 1 is a small but versatile node. It converts DMX/RDM to artnet or artnet to DMX/RDM. So it can work bidirectional. It is packed in a strong but compact housing. The Node 1 is a great but versatile tool for the modern light designer.

Specifikationer

Detaljer

• Power Input: DC5V, 350mA
• Housing: Aluminum Extrusion
• Data in/out: RJ45 connector for ethernet 3pin XLR
• connectors for DMX/RDM Input/output
• Protocols: Artnet, DMX-512 (1990) & RDM protocol
• Protecting Rate: IP20
• Operating Temperature: -10degrees to +50 degrees
• Storage Temperature: -20degrees to +70 degrees
• Dimensions: 110 x 67,5 x 42,3 mm
• Weight: 185 g

Download

50802_MANUAL_GB_V1.pdf
