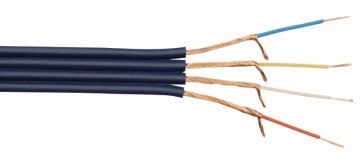

AV-84 AV kabel 4-vejs blå - 100 mtr.

• Conductor drains Ø mm: OFC 20 x 0,12
• Conductor insulation: PE red + transparent +
• yellow + blue
• Conductor insulation: 1,3 (Ø in mm)
• 1st shield: OFC twisted 32 x 0,12
• 2nd shield: -
• Outer isolation: PVC dark blue
• Outer isolation: 4 x 4 (Ø in mm)
• Conductor resistance: 80 Ohm/Km
• Shield resistance: 50 Ohm/Km
• Cap. Inner conduct. Shield/Inner conduct.: 160
• pF/m
• Working temperature: -20~60 °C (min./max.)
• Working Voltage overflash: 30V
• Nom Impedance: 35 Ohm
• Attenuation:
• 10 MHz: 0,02480 / 90 MHz: 0,28000 / 100 MHz:
• 0,28530 / 220 MHz: 0,55350 / 470 MHz: 1,33130 /
• 770 MHz: 2,21180 / 1000 MHz: 3,0271
