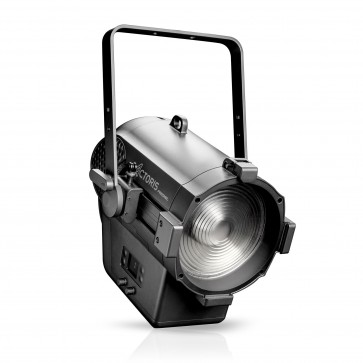

Træd ind i næste generation af belysningsteknologi med Actoris Fresnel fra ADB by Claypaky. Designet til broadcast, film og teater, er det en essentiel tilføjelse til vores anerkendte Multispectral range, der sætter nye standarder for belysningskvalitet og farvepræcision. Med en kraftfuld 6-farvet RGBAL + Royal Blue LED-motor og en imponerende CRI på op til 95 leverer dette armatur enestående farvenøjagtighed og betagende, livagtige fløjlsbløde nuancer. Uanset om du søger et blødt wash eller dynamiske spot-effekter, sikrer Actoris Fresnel alsidighed, fejlfri dæmpning og uovertruffen kontrol med en række tilpassede muligheder.
Actoris Fresnels nøglefunktioner i fokus:
- Næste niveau farvepræstation: Oplev rig, høj-fidelity belysning med 6-farvet RGBAL + Royal Blue LED-motor. Med en høj CRI på 95 sikrer Actoris Fresnel levende, naturtro farver til teater, broadcast og film.
- Blødkantet perfektion: Dens premium Fresnel-linse leverer en jævn, diffus vask med en justerbar zoom på 16°–80°, der tilpasser sig ubesværet fra tætte spots til bredt dækkede områder.
- Dynamisk hvid & farvekonsistens: Med Dynamisk Hvid (2500K–10000K) og Plankcurve CCT-nøjagtighed opnås perfekte hvide med grøn/lilla korrektion. Derudover sikrer CloudIO On-Field Farvekalibrering, at dit udstyr forbliver perfekt matchet over tid.
- Hurtig, fleksibel & pålidelig: Det har aldrig været nemmere at opsætte dit lys. Det eksklusive Pointing Mode forenkler justering, mens Standalone Mode lader dig gemme looks uden en konsol. Designet til professionelle med et let magnesiumhus, glidende beslag for balance og dobbelt Ethernet til problemfri integration.
- Fejlfri dæmpning & komplet kontrol: Med 24-bit valgbar dæmpning nyder du ultra-jævne fades uden flicker. Tilpas din lysstråle med barndoors, gelholdere, snoots og soft panels for ultimativ kontrol.
Klar til at opleve ægte fløjlsbløde vasker til alle farveskalaer? Kontakt os i dag for mere information.
Specifikationer
Detaljer
- LIGHT SOURCE
- Source type:
- LED (Red + Green + Blue + Amber + Lime + Royal Blue)
- Power:
- 370 W
- Colour Temperature:
- 2500 to 10.000K - with perfect Plank-curve CCT
- CRI:
- Up to 95
- PHOTOMETRIC DATA
- Zoom range:
- 16°- 80°
- Lumen output:
- Up to 12.750 Lumen output (integrating shere)
- Front lens: Ø 200 mm
- NOISE LEVEL
- Fixed presets:
- Auto mode: 34.9 dB
- 35 dB: 35.0 dB
- 30 dB: 30.0 dB
- 27 dB: 26.7 dB
- 25 dB: 24.7 dB
- Fanless: 23.9 dB
- CONTROL and CONNECTIONS
- Personalities: 4 modes + 1 stand alone with 33 / 17 / 9 / 1 DMX control parameters
- Protocols:
- DMX, Art-Net, RDM, sACN, Webserver
- Connectors:
- Locking 5 pin XLR IN/THRU
- RJ45 IN /OUT
- Power con:
- PowerCon True1 IN/OUT
- Web Server:
- Built In
- CloudIO:
- Fully compatible, On-field calibration for color consistency
- DYNAMIC EFFECTS
- Colours:
- Color control mode RGBAL + ROYAL BLUE
- Tungsten mode, to replicate the behavior of a tungsten lamp during dimming from 0 to 100% and vice versa;
- Tint correction: ± green/magenta adjustments;
- Flicker-free, thanks to PWM frequency adjustment
- Color control with Advanced, Standard, White and Single-channel modes
- Color temperature adjustment
- Wide color gamut and extended spectrum, including deep blue and deep red
- Combined fixture calibration ensures colors consistency despite changes in temperature and over time
- Wavelength binning selection and 100% fixture calibration ensures color repeatability fixture-to-fixture
- Dimmer/Shutter:
- High resolution electronic dimmer, 24 bit, 5 curves
- HARDWARE and SOFTWARE
- Long life-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- HOUSING
- Aluminum and steel structure with plastic covers
- One handle for transportation
- IP20 protection rate
- Built-in bracket
- Working in any position
- Optional safety chain
- ELECTRICAL
- Operating Voltage:
- 100-240V, 50 / 60 Hz
- Max Power consumption:
- 570W (5.7A) @ 100V
- THERMAL SPECIFICATION
- Max ambient temperature:
- 45°C (113°F)
- Min ambient temperature:
- 20°C (-4°F)
- Max temperature of the external surface:
- 90°C (194°F)
- Total heat dissipation:
- 1400 BTU/hr ±10% / 1476 kJ/hr ±10%
- SAFETY SPECS
- Minimum distance of illuminated objects: 0.2 meters (8’')
- Minimum distance from flammable materials: 0.2 meters (8”)
- Protection:
- Forced ventilation with axial fans
- T6.3A fuse 250V – 5x20 mm (External main fuse)
- T6.3A fuse 250V – 5x20 mm (External fuse)
- COMPLIANCE
- CE Marking (in conformity to the following):
- 2014/35 EU Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU Electromagnetic compatibility of equipment (EMC)
- 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
- UKCA: conforms to UK Regulations:
- S.I. 2016 N. 1101
- S.I. 2016 N. 1091
- S.I. 2012 N. 3032
- S.I. 2021 N. 745
- cMETus Listed:
- UL 1573:2003
- CSA C22.2 N. 166: 2015
- PACKAGING
- Carton box + Polystyrene
- Carton box
- Flight case
- WEIGHT - SIZE
- Weight:
- 11 Kg (24,25 lbs)
- Dimensions:
- 339 x 515 x 339 mm
- 13.35 x 20.28 x 13.35 in
- ACCESSORIES
- ETL Power cord: CAB02B/802 (included)
- Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
- Pole bracket: AA2050000102 (Optional)
- Barndoor: AA2051000102 (Optional)
- Soft box: AA2053000102 (Optional)
- Snoot: AA2054000102 (Optional)
- Foam shell: AL2700C41100F (Optional)
- Clamp: C21070 (Optional)
- Safety chain: 105041/001 (Optional)
