Ny

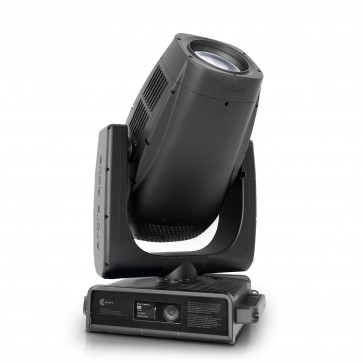

ClayPaky Arolla Aqua

Varenr: CP-CL3027
  • Lyskilde: custom 900W hvid LED-motor (7000 K)
  • Lysudbytte: 40,000 lm
  • Zoomområde: 5.5°-50° (9:1) linear zoom
  • Effekter: 16-bit CMY farveblanding; Lineær CTO; Six-farve wheel (including high CRI filter); 7 HD udskiftelige roterende goboer; 8 HD udskiftelige static gobos; Go-Bright Technology: no light loss or farve shift when gobos are inserted into the beam; Animation wheel; Four-sided rotating prism; 16-blade motorized iris; Indramningssystem: four focal planes, +/- 60° rotation and makrokanalstyring; Soft edge frost and flood frost filters; 24-bit digital dimmer with 4 brugervalgte dimmerkurver; Digital stop-strobe effect
116.053,75 DKK



Inkl. moms
  • Kontakt os

Video

Beskrivelse

Detaljer

Imagine a moving-head fixture so cool that it sets a new standard for professionals who wantførsteklasses ydeevne, compactness, weather reliabilityeven on the open sea, and an unbeatable cost-performance ratio. In a world where your wishes become reality, Arolla Aqua is the lighting genie you’ve been dreaming of. Arolla Aqua isn’t just powerful and economical; it’s a creative treasure chest. Rotating gobos, animation wheels, a framing system, and a versatile farve section grant endless possibilities to bring your lighting visions to life.

Why choose Arolla Aqua:

  • Compact Design: In the world of lighting design, size and power are critical considerations. Arolla Aqua combines kraftfuld ydeevne with a compact form, making it the ideal choice for many setups.
  • Superior performance: Arolla Aqua provides lighting designers with a high-power yet lightweight solution. This enables precise control over the lighting environment, fostering creativity and versatility.
  • Performance-to-cost Ratio: With an exceptional cost-to-performance ratio, it sets a new standard for efficiency, allowing designers to achieve their artistic vision without compromising on quality.
  • IP66 rating – Shield Family: Arolla Aqua boasts an impressive IP66 rating, ensuring its resilience in various weather conditions. This feature grants lighting designers the freedom to explore creative possibilities in both indoor and outdoor settings.
  • Go-Bright Technology: It ensures consistent brilliance with no light loss or farve shifts, providing lighting designers with a broad palette of options to craft visually stunning and dynamic lighting compositions, so your farver stay vibrant and true.
  • Wide range of effects: The fixture boasts an effects section with two gobo wheels, a four-sided prism, and a 16-blade motorized iris, enabling a wide range of creative lighting possibilities to create mesmerizing effects. Plus, it comes with a soft-edge frost filter, flood frost effect, and a super-precise digital dimmer to set the mood just right.
  • Engineered for the Sea, Built to Perform: Arolla Aqua is available with Marine Shield, Claypaky’s proprietary treatment engineered for cruise ships and coastal environments. Thanks to this special protection, the fixture’s IP66-rated aluminum body withstands the relentless effects of salty air and sea spray, guarding against corrosion and ensuring flawless, long-term performance on board (Arolla Aqua MG version code CL3047)

Arolla Aqua is the perfect synergy of advanced technology, performance, and kreativ alsidighed. Because thebest compromise is no compromise.

Specifikationer

Detaljer

  • LYSKILDETYPE: 900W White LED Engine
  • CRI: 70+ with selectable filter for CRI 88+
  • Colour Temperature: 6500K
  • Forventet lampelevetid: 40.000 hrs
  • *It may vary afhængigt af forskellige faktorer, as brugstype og miljø
  • FOTOMETRISKE DATA: Zoomområde: 5.5°- 50°
  • 40360 Lumenudbytte (Integrating Sphere)
  • Frontlinsens diameter: 140mm
  • Høj effektivitet optical system
  • STØJNIVEAU: Theatre fan mode: 40.0 dBA
  • SLN fan mode: 42.3 dBA
  • Constant fan mode: 50.2 dBA
  • Auto fan mode: 50.3 dBA
  • STYRING OG FORBINDELSER: Personligheder: Single mode with 38/41 control channels
  • Integrated Wireless DMX system as standard (Wireless Solution / Lumen Radio)
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Effekt connector: PowerCon True1 IN/OUT
  • Built In Web Server
  • DYNAMISKE EFFEKTER: Farver
  • Linear CMY farveblanding: Lineær CTO
  • Fixed farve wheel with 6 dichroic farver
  • Goboer: 1 Static gobo wheel with 8 replaceable gobos
  • 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
  • Ext diam.26.95mm
  • Image diam. 20.5mm
  • Thickness 1.1mm
  • Indramningssystem: 4 blades with +/- 60° rotation of the full system
  • “Total Curtain" effect allowing the full mørklægning with each single blade
  • Built In macros: Frost
  • Linear heavy frost 5° for wash effect
  • Light frost 1° for soft diffusion
  • Rotating Effekter: Aluminum animationshjul with continuous rotation in both direction at variable speed
  • 4 Facets prism with rotation in both direction at variable speed
  • Iris: Motorized with variable pulse and random effects
  • Bevægelse: Tilt: 270° - 16bit
  • Pan: 540° - 16bit
  • Automatic repositioning: P/T Smooth speed selectable by Function channel
  • Mekanisk pan/tilt-lås til sikker transport og service
  • Lyskegle: Motorized Zoom and Focus
  • Dimmer/lukker: Høj opløsning elektronisk dimmer - 24 bit
  • 5 selectable by Function channel
  • Lukker- og stroboeffekt
  • HARDWARE OG SOFTWARE: Selvopladende batteri med lang levetid
  • Baggrundsbelyst grafisk sort/hvid LCD-display: Firmware-upload fra et andet armatur
  • Firmwareopgradering via webserver: Diagnostik
  • DMX-overvågning: Fjernadgang via RDM
  • CloudIO compatibility
  • KABINET: Magnesium and steel structure with plastic covers
  • To sidehåndtag til transport: IP66-beskyttelsesgrad
  • ARBEJDSPOSITION: Kan arbejde i alle positioner
  • Ophængssystem: with fast-lock omega clamps (1/4 turn) on the base
  • Valgfri sikkerhedskæde
  • ELEKTRISK: Driftsspænding: 100-240V, 50/60 Hz
  • Strømforsyning: Elektronisk autorange med aktiv PFC
  • Maks. strømforbrug: 1100VA
  • TERMISKE SPECIFIKATIONER: Maks. omgivelsestemperatur 45°C (113°F)
  • Min. omgivelsestemperatur -20°C (-4°F)
  • Maks. temperatur på den udvendige overflade 90°C (194°F)
  • Samlet varmeafledning: 4782 BTU/hr ±10% / 5040 kJ/hr ±10%
  • SIKKERHEDSSPECIFIKATIONER: Minimumsafstand til belyste objekter 2.5 meters (8’ 2”)
  • Minimumsafstand til brandbare materialer 0.2 meters (8”)
  • Fuse T6.3A – 250V
  • Termisk beskyttet strømforsyning (overheating and cooling failure)
  • Tvungen ventilation med aksialventilatorer
  • OVERENSSTEMMELSE: CE-mærkning (in conformity to the following)
  • 2014/35 EU Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU Elektromagnetisk kompatibilitet for udstyr (EMC)
  • 2011/65/EU Begrænsning af anvendelsen af visse farlige stoffer (RoHS)
  • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
  • UKCA: conforms to UK Regulations
  • S.I. 2016 N. 1101
  • S.I. 2016 N. 1091
  • S.I. 2012 N. 3032
  • S.I. 2021 N. 745
  • cMETus Listed
  • UL 1573:2003
  • CSA C22.2 N. 166: 2015
  • EMBALLAGE: Papkasse + Polystyren
  • Papkasse + Skumindlæg: Flightcase + Skumindlæg (2 positions)
  • VÆGT - STØRRELSE: 38.7 Kg (85.3 lbs)
  • 325x450mm (base dimension) – 750mm with vertical head (h)
  • Distance between two fixtures 700mm
  • TILBEHØR: Omega clamps: 2x183102-805 (included)
  • Effekt cord: CAB0NL-802 (included)
  • Skumindlæg: F21340-001 (optional)
  • Flightcase 2 positions: CF1024 (optional)
  • Sikkerhedskæde: 105041-001 (optional)
