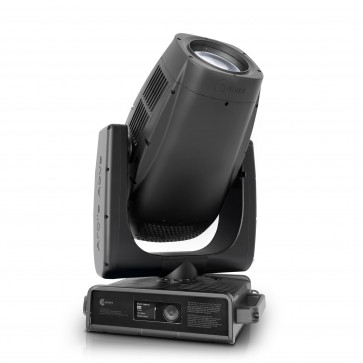

Den unikke LED wash lampe til høj CRI og fejlfri hvide farver.
Hvorfor du vil elske Arolla Aqua Wash HC:
- Høj CRI op til 94: Oplev ægte farvegengivelse, som er afgørende for anvendelser som tv-udsendelser, teater eller modeshows, hvor hver detalje tæller.
- Specialtilpasset hvid LED 960W: Opnå fejlfrit hvidt med præcis kontrol over magenta- og grønne skift takket være vores eksklusive TrueCurveTM teknologi.
- Overlegen farvemiksning: Opnå levende, glidende overgange med høj kvalitets farvemiksning, der forbedrer hver effekt og en fantastisk dyb rød.
- Dynamisk fleksibilitet: Justerbar zoom og strålevinkler giver dig mulighed for at tilpasse din belysning til rummets nøjagtige behov. Fra en snæver 6° til 49° vask (PC-linse) eller 6,4° til 58° (Fresnel-linse).
- IP66-klassificering: Bygget til at modstå elementerne, Arolla Aqua Wash HC er perfekt til udendørs arrangementer og leverer enestående ydeevne under alle vejrforhold (Shield Family).
- Internt Barndoor-system på 2 fokusplaner: Få ultimativ kontrol over din belysning med dette system, der muliggør præcis lysformning.
- 160 mm (6,3 in) PC-frontlinse & 180 mm (7,1 in) Fresnel-frontlinse: Leverer enestående output og jævn lysfordeling over hele strålen.
Tag dine belysningsdesigns til nye højder med Arolla Aqua Wash HC. Dens enestående output, farvetrohed og alsidige funktioner gør den til det perfekte valg for enhver professionel belysningsanvendelse. Oplev den perfekte balance mellem kraft og præcision med Arolla Aqua Wash HC, hvor hver farve skinner klart, hver nuance gengives ensartet, og hvert hvidt harmonerer med fejlfri præcision.
Specifikationer
Detaljer
- LIGHT SOURCE
- Source type: White LED (6500 K) + Calibration of the white (TrueCurve TM.)
- Power: 960W
- Colour Temperature: 6400K
- CRI: Up to 94
- LED life expectancy: 20.000 L70
- It may vary depending on various factors, such as the type of use and environment
- PHOTOMETRIC DATA
- Zoom range with PC Lens:
- Beam: 6.1°
- Field: 49°
- Zoom range with Fresnel lens:
- Beam: 6.4°
- Field: 58.1°
- Lumen Output with PC lens: 31.318 lm
- Lumen Output with Fresnel lens: 27.368 lm
- PC lens: Ø 160 mm
- Fresnel lens: Ø 180 mm
- Optical system: high efficiency
- NOISE LEVEL
- Fixed preset:
- Auto mode: 46,7 dB
- Constant mode: 46,8 dB
- Silent mode: 34,8 dB
- Theatre mode: 35,1 dB
- CONTROL and CONNECTIONS
- Personalities: 1 mode with 30 control channels
- Protocols: DMX, Art-Net, sACN, CRMX (TiMo FX by Lumen Radio)
- Connectors: Locking 5 pin XLR IN/OUT, RJ45 IN/OUT
- Power connector: PowerCon True1 IN/OUT
- Web server: Built-in
- CloudIO: Fully compatible
- DYNAMIC EFFECTS
- Colours:
- CMY color mixing (16-bit);
- 1 fixed color wheel with 6 dichroic colors;
- Linear CTO 2700K – 6500K
- Strobe:
- Electronic strobe
- Barndoor system:
- Internal 2 focal planes
- Frost:
- 1 manually interchangable 60°
- Movement:
- Tilt: 270° - 16bit
- Pan: 540° - 16bit
- Accuracy:
- Resolution: ± 0,22° (±0° 13′ 12″)
- Range: 0,44° (0° 26′ 24″)
- Automatic repositioning
- Mechanical Pan/Tilt lock for safe transportation and maintenance
- Dimmer/Shutter:
- Electronic control (24-bit) with 5 selectable dimming curves
- HARDWARE and SOFTWARE
- Display graphic LCD blacklit B/W display;
- Firmware upload from another fixture,
- Firmware upgrade via Web Server;
- Diagnostic;
- DMX monitoring;
- Remote access through RDM
- HOUSING
- Aluminium and steel structure with plastic covers
- Two-side handles for transportation
- IP66 protection rate
- Working in any position
- Hanging system with fast-lock Omega clamps (1/4 turn) on the base
- Optional safety chain
- Special:
- Sun safe protection
- ELECTRICAL
- Operating Voltage: 100-240V, 50/60 Hz
- Power supply: electronic auto range with active PFC
- MAX power consumption: 1580W
- THERMAL SPECIFICATION
- Max ambient temperature: 45°C (113°F)
- Min ambient temperature: -20°C (-4°F)
- MAX temperature of the external surface: 90°C (194°F)
- Total heat dissipation: 5397 BTU/hr ±10% / 5688 kJ/hr ±10%
- SAFETY SPECIFICATIONS
- Minimum distance of illuminated objects: 2.5 m (8'2'' In)
- Minimum distance from flammable materials: 0.2 m (8'' In)
- Protections:
- External Mains Fuse T 16A 250V - 6,2 x 32mm
- External Fuse (to disconnect battery during flights transportation) T 6,3A 250V - 5x20mm
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- COMPLIANCE:
- CE Marking (in conformity to the following):
- 2014/53/EU Radio Equipment Directive (RED)
- 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
- UKCA: conforms to UK Regulations:
- S.I. 2017 N. 1206
- S.I. 2012 N. 3032
- S.I. 2021 N. 745
- cMETus Listed:
- UL 1573:2003
- CSA C22.2 N. 166: 2015
- PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell (2 position)
- WEIGHT - SIZE
- Weight:
- 36,0 Kg (79,4 lbs).
- Dimensions without handles:
- 325 x 450 x 765 mm
- 12,80 x 17,72 x 30,1 In
- Distance between two fixtures: 650 mm (25,6 In)
- ACCESSORIES
- Omega braket: 2 x 183102/805 (included)
- ETL Power cord: CAB02B/802 (included)
- Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
- Fresnel kit:CA30720000102 (optional)
- PC lens: CA30700000102 (optional)
- Flight case 2 position: CF1044F (optional)
- Safety Chain: 105041/001 (optional)
- Clamp: C21070 (Optional)
