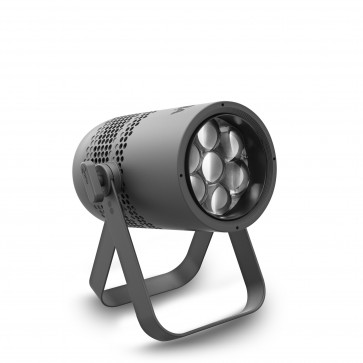

First in a series of specialized models for the theatrical sector, this product features an RGBWW LED light source, that produces warm color temperatures perfect to match any complexion or scenery on stage through its replication of natural pastel colors and CRI rating greater than 90. The color temperature can also be digitally adjusted between 2500K through 6500K.
Specifikationer
Detaljer
- LIGHT SOURCE
- Source type:
- ParLED: 7x Osram 40W RGBWW LED
- ParLED RGBW: 7x Osram 40W RGBW LED
- LED life expectancy:20.000Hrs L70*
- *It may vary depending on various factors, as type of use and environment
- PHOTOMETRIC DATA
- Zoom:
- 4° - 53°
- Lumen output:3380Lm (integrating sphere)
- Front lens: Ø 150 mm
- Optical system.: High efficiency
- NOISE LEVEL
- Controlled by: Able to control linearly the speed of the fans
- Fixed presets:
- RnR mode:* 44.6 dBA
- Boost mode:* 36.6 dBA
- Theatre mode:* 31.5 dBA
- Silent mode:* 28.0 dBA
- Fanless mode:* 24.6 dBA
- * Dimmer at 100%
- CONTROL and CONNECTIONS
- Personalities:
- 2 modes with 16 / 17 control channels
- Protocols:
- DMX, Art-Net, RDM, sACN
- Connectors:
- Locking 5 pin XLR IN/THRU
- RJ45 IN
- Power connectors.:
- PowerCon True1 IN/OUT
- Web server:
- Built-in
- CloudIO:
- Fully compatible
- DYNAMIC EFFECTS
- Colors:
- Color mixing 16 bit
- Linear CTO from 8000K to 2500K (Actoris ParLED RGBW)
- Linear CTB from 2500K to 7500K (Actoris ParLED)
- Preset macro colors
- Beam:
- Motorized zoom
- Dimmer / Shutter:
- High resolution electronic dimmer - 24 bit, 5 curves
- Electronic strobe 25f/sec
- HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- HOUSING
- Steel structure with plastic components
- Two built-in brackets designed to stand on the floor
- IP20 protection rate
- Working in any position
- Hanging system: built-in brackets
- Optional safety chain
- ELECTRICAL
- Operating Voltage: 100-240V, 50/60 Hz
- In/Out MAX:8 (3) fixtures @ 200-240Vac (@ 100-120Vac)
- Power Supply: Electronic auto range with active PFC
- MAX power consumption:326W
- THERMAL SPECIFICATION
- Max ambient temperature
- 45°C (113°F)
- Min ambient temperature
- -20°C (-4°F)
- Max temperature of the external surface:
- 90°C (194°F)
- Total heat dissipation:
- 1100 BTU/hr ±10% / 1170 kJ/hr ±10%
- SAFETY SPECS
- Minimum distance of illuminated objects:
- 0.2 meters (18)
- Minimum distance from flammable materials:
- 0.2 meters (8)
- Protections:
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- COMPLIANCE
- CE Marking (in conformity to the following):
- 2014/35/EU Low voltage directive (LVD)
- 2014/30/EU - Electromagnetic compatibility of equipment (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- UKCA conforms to UK regulations:
- S.I. 2016 N. 1101
- S.I. 2016 N. 1091
- S.I. 2012 N. 3032
- S.I. 2010 N. 2617
- cMETus Listed
- UL 1573: 2003
- CSA C22.2 N.166: 2015
- PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell (8 position)
- WEIGHT - SIZE
- Weight:
- 5.7 Kg (12.6 lbs)
- Dimensions without handles:
- 341 x 325 x 275 mm
- 13.42 x 12.79 x 10.83 In
- Dimensions with handles:
- 400 mm
- ACCESSORIES
- ETL Power: CAB02B/802 (Included)*
- * Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
- Gel Frame / Barndoors holder: AA2017000102 (Optional)
- Gel frame: AA2018000102 (Optional)
- (only in connection with Gel Frame / Barndoors Holder AA2017000102)
- Barndoors: AA2019000102 (Optional)
- (only in connection with Gel Frame / Barndoors Holder AA2017000102)
- Frost filter 5°: AA2021000102 (Optional)
- (only in connection with Gel Frame / Barndoors Holder AA2017000102 and Gel Frame AA2018000102)
- Frost filter 2°: AA2020000102 (Optional)
- (only in connection with Gel Frame / Barndoors Holder AA2017000102 and Gel Frame AA2018000102)
- Egg crate: CA3002000100 (Optional)
- Foam shell: F21332/801 (Optional)
- Flight case (8 positions): CF1017F (Optional)
- Safety Chain: 105041/003 (Optional)
- Clamp: C21070 (Optional)
