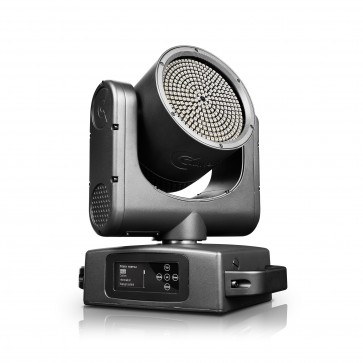

Træd ind i fremtiden med Mini-B Sparky Aqua—en ægte game-changer inden for kompakte, lette mini moving-heads! Dette IP66-klassificerede armatur skaber opsigt, og med god grund: gør dig klar til at blive hypnotiseret af de kraftfulde strobe-effekter fra Mini-B Sparky Aqua!
Lad os dykke ned i detaljerne:
- Robust design, kraftfuld ydeevne: Mini-B Sparky Aqua går ikke på kompromis med holdbarhed og lysstyrke. Dens high-output RGBW SMD LEDs, arrangeret i 10 individuelt kontrollerbare koncentriske cirkler, skaber intense farver, der fordeles jævnt over en bred 120° floodlight. Uanset om det er indendørs eller udendørs, leverer denne lille armatur fantastiske visuelle effekter, fra kalejdoskopiske displays til kraftige strobe-effekter.
- Hurtige bevægelser, præcise stråler: Takket være rammer Mini-B Sparky Aqua sit mål hver gang. Perfekt til liveoptrædener, events og dynamiske lys-shows, det er som at have en adræt danser på scenen. Fra blide fadinger til dramatiske sweeps, den har bevægelserne.
- Elegant design, problemfri integration: Mini-B Sparky Aquas kompakte profil passer overalt – i truss, overhead rigs eller diskrete steder. Moderne design møder topklasse ydeevne.
- Kreativitet frigivet: Vores Advanced Layer Management system giver dig mulighed for at flette effekter problemfrit. Baggrundsfarve, indbyggede makroer og eksternt videoindhold – fortryllende muligheder lige ved hånden.
- Rock scenen, oplys baggrunde: Mini-B Sparky Aqua kan levere vibrerende lyseffekter, der efterlader publikum fortryllede.
Uanset om du planlægger et stort arrangement, en teaterproduktion eller en tema-installation, lover denne armatur at levere uovertruffen ydeevne og pålidelighed. Gør dig klar til at blive hypnotiseret!
Specifikationer
Detaljer
- LIGHT SOURCE
- Source type: LED RGBW (330 pcs x 1W)
- LED life expectancy: 50,000Hrs (L70*)
- It may vary depending on various factors, as type of use and environment
- PHOTOMETRIC DATA
- Aperture: 120°
- Lumen Output: 14000 Lm (integrating sphere)
- Front Lens: Ø 188 mm
- Optical system: High efficiency
- NOISE LEVEL
- Fixed presets:
- Auto: 51,2 dB
- Silent: 41 dB
- Theatre: 49,1 dB
- Constant: 51.2 dB
- CONTROL and CONNECTIONS
- Personalities:
- Main engine: 5 modes with 14 / 18 / 28 / 36 / 30 control channels
- Pixels engine : 2 modes with 30 / 40 control channels
- Protocols: DMX, Art-Net, RDM, sACN, webserver
- Connectors:
- Locking 5 pin XLR IN/OUT
- RJ45 IN/OUT
- Power connectors: PowerCon True 1 IN/OUT
- CloudIO: Fully compatible
- Built In Web Server
- DYNAMIC EFFECTS
- Colors:
- RGBW color mixing - 16 bit
- Linear CTO 2700K to 8000K
- Advanced layers management (color, internal shape, pixel mapping)
- individual control of 10 LEDs areas (ring);
- Pre-programmed shape selection of static and dynamic patterns
- Movement:
- Tilt: 220° (16 bit)
- Pan: 540° (16 bit)
- Strobe:
- Electronic strobe from 1 to 25 f/sec
- Dimmer/Shutter:
- High speed electronic dimmer - 16 Bit, 5 curves
- High speed electronic shutter and strobe
- HARDWARE and SOFTWARE
- Long life self charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- HOUSING
- Magnesium housing
- Two side handles for transportation
- IP66 protection rate
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
- Optional safety chain
- ELECTRICAL
- Operating Voltage: 100–240 V, 50/60 Hz
- Power supply: Electronic auto range with active PFC
- Max Power consumption: 340W
- THERMAL SPECIFICATION
- Max ambient temperature 45°C (113°F)
- Min ambient temperature -20°C (-4°F)
- Max temperature of the external surface 90°C (194°F)
- Total heat dissipation: 1161 BTU/hr ±10% / 1224 kJ/hr ±10%
- SAFETY SPECS
- Minimum distance of illuminated objects: 0.2 m (8’’)
- Minimum distance from flammable materials: 0.2 meters (8”)
- Protections:
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with fans and heatsink
- Fuse T10 - 250V + battery use T10A 250V
- COMPLIANCE
- CE Marking (in conformity to the following):
- 2014/ 35 EU Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU Electromagnetic compatibility of equipment (EMC)
- 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
- UKCA: conforms to UK Regulations:
- S.I. 2016 N. 1101
- S.I. 2016 N. 1091
- S.I. 2021 N. 745
- cMETus Listed:
- UL 1573: 2003
- CSA C22.2 N. 166: 2015
- PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell (6 positions)
- WEIGHT - SIZE
- Weight: 12,194 Kg (26,88 lbs)
- Base dimensions: 332 x 200 mm (13.07 x 7,87 In)
- Height with vertical head:
- 373 mm (14,68 In)
- 420 mm (16.53 In) with top hat
- Distance between two fixture: 400 mm
- ACCESSORIES
- Omega bracket: 1 x 433060-801 (Included)
- Top-hat: CA3066000102 (Included)
- ETL Power: CAB02B-802 (Included)
- Cord 1.5 m (bare end with IP65 PowerConTrue1 connector)
- Flight case ( 6 pos): CF1036F (Optional)
- Foam shell: F21339-001 (Optional)
- Safety Chain: 105015-802 (Optional)
- Clamp: C21070 (Optional)
- PowerCon True1 connector: CON00O ( Optional)
