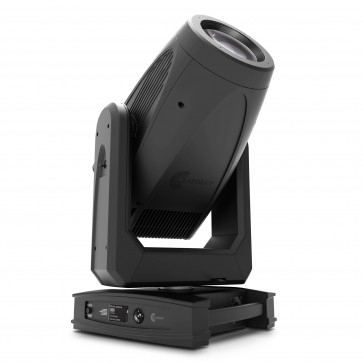

Rhapsodya fremstår som en banebrydende, lavstøjs multi-spektral RGBAL LED-armatur, omhyggeligt designet til forskellige anvendelser såsom turnéer, live events, teater og TV-produktion, og styret af en specialudviklet intern firmwarealgoritme.
Det er en videreudvikling af Sinfonya, især med fokus på kvaliteten af optik og farvestyring, samt den hviskende stille drift selv ved fuld effekt. Rhapsodya har et imponerende nyt produktdesign, der er stilrent og moderne, med dobbelt effekt i forhold til Sinfonya.
Udover de innovative funktioner, som den deler med Sinfonya, såsom ACCUFRAMETM, et indramningssystem med dobbelt fokale planer, der opnår en forbløffende 40 gange større præcision sammenlignet med konventionelle indramningssystemer, og TONEDOWNTM, som sikrer næsten lydløs drift med blot 27 dB, Absolute Position-kontrol til avancerede PAN & TILT-funktioner samt LINEGUARD, et nyt frostsystém med to par knive, giver Rhapsodya et teknologisk løft takket være de nye funktioner: AccuTune, en præcis kontrol over multicolor LED-motoren takket være en ny algoritme for levende og rige farver optimeret til både scene og TV.
COLORSTRING, er en individuel LED-kontrol for et højt niveau af grafik- og farveeffekter, der gør dig i stand til at skabe indviklede og dynamiske belysningsdisplay.
Desuden er armaturet udstyret med et avanceret Proprietær Optisk System, der tilbyder et imponerende zoomområde fra 6,2° til 63,3°.
Rhapsodya er mere end bare et armatur; det er din backstagepartner, din stjerne på scenen og din roadies drøm. Udforsk dets enestående funktioner og oplev fremtiden inden for belysningsinnovation.
Specifikationer
Detaljer
- LIGHT SOURCE TYPE
- LED RGBAL
- Power: 1200W
- CRI: Up to 94
- Colour Temperature: 2500 to 10.000K
- Lamp life expectancy: 40.000 Hrs
- It may vary depending on various factors, as type of use and environment
- PHOTOMETRIC DATA
- Zoom range: 6,2° to 63,3°
- 24.000 Lumen Output (Integrating Sphere)
- Front lens diameter: 180mm
- Optical system: 14 high efficiency lenses
- NOISE LEVEL
- Controlled by:
- Able to control linearly fans speed
- Fixed presets: 27dBA/ 30dBA / 35dBA
- Fanless mode: with reduced output
- CONTROL and CONNECTIONS
- Personalities: Three (3) modes with 63 / 55 / 48 control channels + separate control of the engine string (20 channels)
- Control Protocol: DMX, Art-Net, RDM, sACN, CRMX lumen Radio (Optional)
- Connectors:
- Locking 5 pin XLR IN/THRU
- 2 xRJ45 IN/OUT
- Power connector: PowerCon True1 IN
- Web Server: built-in
- CloudIO:
- Fully compatible
- On-field calibration for color consistency
- DYNAMIC EFFECTS
- Colours:
- RGBAL control
- Virtual CTO
- +/- Green correction
- Adjustable CRI
- Digital Color Filters
- Gobos:
- 2 rotating gobo wheels with 6 HD Indexable and replaceable gobos: Ext diam. 32.8 mm Image diam. 27 mm Thickness 1.1mm
- Framing system:
- 4 blades with +/- 60° rotation of the full system, 2 focal planes
- “Total Curtain" effect allowing the full blackout with each single blade
- Frost:
- Linear heavy frost 5° for wash effect (Fixed)
- Light frost 1° for soft diffusion (interchangeble)
- Rotating Effects:
- 1 Aluminum animation wheel with continuous rotation in both direction at variable speed - XY movement
- 1 Four-Facet prism with rotation in both directions at variable speed
- Iris:
- 16 blades motorized with variable pulse and random effects
- Movement:
- Tilt: 270° - 16bit
- Pan: 540° - 16bit
- Accuracy: Resolution ± 0.12° (± 0° 7' 12") Range 0.24° (0° 14' 24")
- Absolute position
- Automatic repositioning
- Mechanical Pan/Tilt lock for safe transportation and maintenance
- Tilt safety brake system
- Beam:
- Motorized Zoom and Focus
- Autofocus
- Dimmer/Shutter:
- High speed electronic shutter and Strobe
- High resolution dimmer 24 bit, 3 curves
- HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- HOUSING
- Aluminum and steel structure with plastic covers
- Two side handles for transportation
- IP20 protection rate
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
- Optional safety chain
- ELECTRICAL
- Operating Voltage: 100-120 / 200-240V, 50/60 Hz
- Power Supply: Electronic auto range with active PFC
- Max Power consumption: 1600W
- THERMAL SPECIFICATION
- Max ambient temperature 40°C (104°F)
- Min ambient temperature -20°C (-4°F)
- Max temperature of the external surface 40°C (104°F)
- Total heat dissipation: 5294 BTU/hr ±10% / 5580 kJ/hr ±10%
- SAFETY SPECIFICATIONS
- Minimum distance of illuminated objects 2 meters (6’7”)
- Minimum distance from flammable materials 0.2 meters (8”)
- Bipolar circuit breaker with thermal protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- COMPLIANCE
- CE Marking:(in conformity to the following)
- 2014/53/EU - Radio Equipment Directive (RED)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- UKCA: conforms to UK Regulations:
- S.I. 2017 N.1206
- S.I. 2012 N.3032
- S.I. 2021 N.745
- cETLus LISTED:
- UL 1573:2003
- CSA C22.2 N.166:2015
- PACKAGING
- Green/Total carton box
- Flight case + Foam shell (1 position)
- WEIGHT - SIZE
- 48.1 Kg (106.04 lbs)
- Base dimension 452 x 407 mm 17,79 x 16,02 in
- Height with vertical head (h) 859 mm 33,82 in
- Distance between two fixtures 850mm
- ACCESSORIES
- Omega clamps: 2x183102-805 (included)
- Power cord: ETL Power cord Cord 1.5 mt. ( bare end with IP65 PowerConTrue1 connector): CAB0TF-802 (included)
- Flight case 1 positions: CF1028 (Optional)
- Safety Chain: 105041-003 (optional)
- Clamp: C21070 (Optional)
