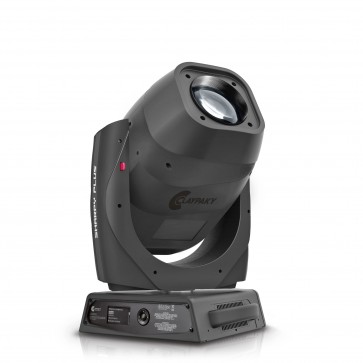

Sharpy Plus er den første ægte 100% HYBRID-enhed, i stand til at være både en perfekt beam light og en perfekt spotlight. Den er egnet til enhver lejlighed med en ekstraordinær lysydelse, som sikrer betydelige besparelser gennem lavere strømforbrug.
Sharpy Plus har to uafhængige driftsmåder. I BEAM-tilstand forstærkes de luftbårne effekter af den måde, hvorpå Sirius-lampen er konstrueret. Den er i stand til at levere en ekstraordinær lysstyrke (over 300.000 lux på 10 meters afstand), hvilket den optiske enhed forstærker gennem et markant hot spot. I SPOT-tilstand diffunderes lyset mere jævnt, hvilket betyder, at visuelle effekter kan projiceres med fremragende ensartethed.
Dens 3° til 36° (1:9) zoom dækker hele området lineært, både i spot-tilstand og beam-tilstand. Denne funktion gør Sharpy Plus unik på markedet.
Sharpy Plus har ingen konkurrent. Med sit brede udvalg af effekter og høje lysstyrke overgår den alle lys i samme kategori og kommer meget tæt på lys med højere wattstyrke, men til en langt mere attraktiv pris.
Specifikationer
Detaljer
- LIGHT SOURCE TYPE
- 330W X8 HRI Sirius Osram Arc Lamp
- Colour Temperature: 8000K ±300
- Lamp life expectancy: 1500 hrs
- It may vary depending on various factors, as type of use and environment
- PHOTOMETRIC DATA
- Zoom range: 3°- 36°
- 12000 Lumen Output
- Front lens diameter: 135mm
- High efficiency optical system
- NOISE LEVEL
- Auto fan mode:49.0 dBA
- CONTROL and CONNECTIONS
- Personalities: Single mode with 31 control channels
- Control Protocol: DMX, Art-Net, RDM, sACN.
- DMX and RDM connectors: Locking 5 pin XLR IN/OUT
- Ethernet port: RJ45 IN
- Power connector: Power Con True1 IN
- Built In Web Server
- DYNAMIC EFFECTS
- Colours:
- Linear CMY colour mixing
- 5 colors on 3 wheels (2 CTO filters)
- Gobos:
- 1 Static gobo wheel with 18 gobos, 6 beam reducers (down to 0.5°)
- 1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos
- Ext diam.15.9mm
- Image diam. 12mm
- Thickness 1.1mm
- Frost:
- Linear soft edge frost filter
- Rotating Effects
- Aluminum animation wheel with continuous rotation in both direction at variable speed
- 4 Facets prism with rotation in both direction at variable speed
- 8 Facets prism with rotation in both direction at variable speed
- Movement:
- Tilt: 270° - 16bit
- Pan: 540° - 16bit
- Accuracy: Resolution ± 0,28° (Range 0,56°)
- Automatic repositioning
- Fast/Standard speed selectable by Function channel
- Mechanical Pan/Tilt lock for safe transportation and maintenance
- Beam:
- Motorized Zoom and Focus
- Dimmer/Shutter:
- High resolution Dimmer - 16 bit
- High speed Shutter and Strobe
- HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- CloudIO compatibility
- HOUSING
- Aluminum and steel structure with plastic covers
- Two side handles for transportation
- IP20 protection rate
- WORKING POSITION
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
- Optional safety chain
- ELECTRICAL
- Operating Voltage: 100-240V, 50/60 Hz
- Power Supply: Electronic auto range with active PFC
- Max Power consumption: 540VA
- THERMAL SPECIFICATION
- Max ambient temperature 40°C (104°F)
- Min ambient temperature -10°C (14°F).
- Max temperature of the external surface 90°C (194°F)
- Total heat dissipation: 1845 BTU/hr ±10% / 1944 kJ/hr ±10%
- SAFETY SPECS
- Fuse T6.3A – 250V
- Minimum distance of illuminated objects 8 meters (26’ 3”)
- Minimum distance from flammable materials 0.2 meters (8”)
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- COMPLIANCE
- CE marking: In conformity with the European Directives:
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- UKCA: conforms to UK legislation
- cETLus Listed / cMETus Listed
- PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell (2 positions)
- WEIGHT - SIZE
- 23.0 Kg (50.7 lbs)
- 307x375mm (base dimension) – 635mm with vertical head (h)
- Distance between two fixtures 500mm
- ACCESSORIES
- Omega clamps: 2x183102/805 (included)
- Power cord: CAB02B/802 (included)
- Foam shell: F21312/001 (optional)
- Flight case: CF1000F (optional)
- Safety Chain: 105041/003 (optional)
- Frost assembly 5°: 371081/802 (optional)
- Linear Prism assembly: 371020/803 (optional)
