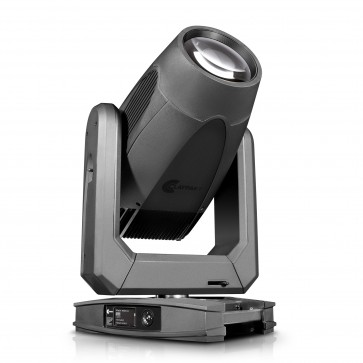

Sinfonya Profile 600 er en unik, lavstøjs LED-baseret armatur, designet og udviklet udelukkende til teatermarkedet. Eksklusive funktioner omfatter TONEDOWNTM for lav støjdrift (27dB), ACCUFRAMETM (nyt indramningssystem med 2 fokalplaner: 40 gange mere præcist end traditionelle indramningssystemer), nyt proprietært optisk system (med et imponerende zoomområde på 5° til 60°); fem-farvet LED-lysmotor (RGBAL) styret af en særlig, internt udviklet firmwarealgoritme; den nye ColorMatch kalibrering, der synkroniserer farvetemperaturerne med andre armaturer; Absolute Position til avanceret PAN & TILT-kontrol; LINEGUARD, et nyt frostsystem med to par blændere. Sinfonya Profile 600 er den sande næste generation af belysning til teatre.
Teatre har brug for armaturer med lav støj, meget høj lys kvalitet samt kontrol og præcision ved repositionering. Vi er begejstrede for at introducere den første i en helt ny familie af LED-armaturer designet og fremstillet eksklusivt til teatermarkedet.
Den nye Sinfonya-serie fra Claypaky imødekommer alle særlige krav og leverer helt nye ydelsesniveauer, som ikke tidligere var mulige.
Sinfonya Profile 600 er stilfuld og fuldt pakket med teknologi. Det, der gør Sinfonya anderledes, er dens fremragende kerne teknologi, som tilbyder uendelige muligheder for teaterdesignere takket være forskellige funktioner, der er specielt udviklet til teaterproduktioner.
Specifikationer
Detaljer
- LIGHT SOURCE
- Source type:
- LED RGBAL
- Power:
- 600 W
- Color temperature:
- 2500 to 10000K
- CRI:
- Up to 95
- Lamp life expectancy: 40.000 Hrs L70
- It may vary depending on various factors, as type of use and environment
- PHOTOMETRIC DATA
- Zoom range:
- 5° - 60°
- Lumen Output:
- 12.050 Lm (Integrating Sphere)
- Front lens diameter:
- Ø 165 mm
- Optical system:
- 14 high efficiency lenses
- NOISE LEVEL
- Controlled by:
- Able to control linearly the speed of the fans
- Fixed Preset:
- 27 / 30 / 35 dBA
- Fanless mode:
- With reduced output
- CONTROL and CONNECTIONS
- Personalities:
- 3 modes with 58 / 49 / 43 control channels
- Protocols:
- DMX, Art-Net, sACN, RDM
- CRMX (Lumen Radio) (Optional)
- Connectors:
- Locking 5 pin XLR IN/OUT RJ45 IN
- Power connectors:
- PowerCon True1 IN/OUT
- Web server:
- Built-in
- CloudIO:
- Fully compatible
- On-field calibration for color consistency
- DYNAMIC EFFECTS
- Colours:
- RGBAL control
- Virtual CTO
- Digital color filters
- ± green correction
- Adjustable CR
- Gobos:
- 1 rotating gobo wheels with 6 HD Indexable and replaceable gobos
- Ext Diam. 32.8 mm
- Image diam. 23 mm
- Thickness 1.1 mm
- Framing system:
- 4 blades with ± 45° rotation of the full system, 2 focal planes
- “Total Curtain" effect allowing the full blackout with each single blade
- Frost:
- Light frost 1° for soft diffusion (Interchangeable)
- Heavy frost 5° for wash effect (Fixed)
- Rotating Effects:
- 1 aluminium animation wheel with continuous rotation in both direction at variable speed - XY movement
- 1 four-facet prism with rotation in both directions at variable speed
- Iris:
- 16 blades motorized with variable pulse and random effects
- Movement:
- Tilt: 270° - 16bit
- Pan: 540° - 16bit
- Accuracy: Resolution ±0.06° (± 0° 3’ 36’’) Range 0.12° (0° 7' 12")
- Absolute position
- Automatic repositioning
- Mechanical Pan/Tilt lock for safe transportation and maintenance
- Beam:
- Motorized Zoom and Focus
- Dimmer/Shutter:
- High resolution electronic Dimmer - 24 bit 4 curves
- High speed electronic Shutter and Strobe
- HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- HOUSING
- Aluminum and steel structure with plastic covers
- Two side handles for transportation
- IP20 protection rate
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
- Optional safety chain
- ELECTRICAL
- Operating Voltage:
- 100-120 / 200-240V, 50/60 Hz
- Power Supply:
- Electronic auto range with active PFC
- Max Power consumption: 7
- 770VA
- THERMAL SPECIFICATION
- Max ambient temperature:
- 45°C (113°F)
- Min ambient temperature:
- 20°C (-4°F)
- Max temperature of the external surface:
- 40°C (104°F)
- Total heat dissipation:
- 2220 BTU/hr ±10% / 2340 kJ/hr ±10%
- SAFETY SPECS
- Minimum distance of illuminated objects:
- 2 m (6’7’’)
- Minimum distance from flammable materials:
- 0.2 meters (8”)
- Protection:
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- COMPLIANCE
- CE Marking (in conformity to the following):
- 2014/53/EU - Radio Equipment Directive (RED)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- UKCA: conforms to UK Regulations:
- S.I. 2017 N. 1206
- S.I. 2012 N. 3032
- S.I. 2010 N. 2617
- cETLus LISTED:
- UL 1573:2003
- CSA C22.2 N. 166
- PACKAGING
- Green/Total carton box
- Carton box + Foam shell
- Flight case + Foam shell (2 positions)
- WEIGHT - SIZE
- Weight:
- 36,8 Kg (81,1 lbs)
- Base dimension:
- 425 x 417 mm
- 16,73 x 16,42 in
- Height with vertical head (h):
- 796 mm
- 31,34 in
- Distance between two fixtures:
- 700 mm
- ACCESSORIES
- Omega braket: 183102/805 (included)
- ETL Power cord: CAB02B/802 (included)
- Cord 1.5 m (bare end with IP65 PowerConTrue1 connector)
- Top hat: CA3019000102 (Included)
- Kit LR WDMX: KIT03J/801 (Optional)
- Handle: CA3021000102 (Optional)
- Gel holder: CA3022000102 (Optional)
- Frost (10°): CA30670000102 (Optional)
- Foam shell: F21327-001 (Optional)
- Flight case (2 pos): CF1012 (Optional)
- Safety Chain: 105041-003 (Optional)
- Clamp: C21070 (Optional)
