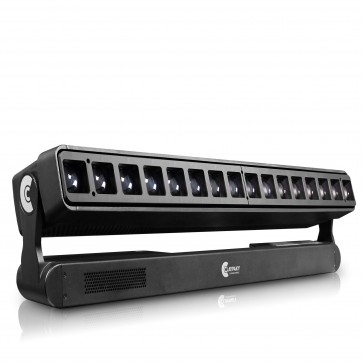

Tambora Batten er en højtydende LED-bjelkearmatur med avancerede pixelkortlægningsfunktioner og en unik “trelags” udvælgelse, som du kan arrangere problemfrit på række eller i en matrix for fantastiske lyseffekter.
Behovet for en højtydende, funktionsrig batten-armatur er nu opfyldt med Claypaky Tambora Batten. Drevne af seksten Osram 40W RGBW LED'er – de samme LED'er, der driver HY B-EYE og MINI-B armaturerne – giver dette armatur dynamisk kontrol over hver enkelt LED-celle til dynamiske pixelmapping-effekter. Brugere kan styre hver LED's farve, dæmpning og strobefrekvens individuelt eller i fællesskab. Flere barer kan arrangeres sømløst i en linje eller matrix, mens afstanden mellem armaturerne opretholdes for ensartethed side om side og ovenfra og ned.
Tambora Batten tilbyder lineær zoomkontrol fra 4° til 50°, og enhedens cellers tilt har en rækkevidde på over 220°, hvilket gør den meget alsidig. Den har også et hvidt farvetemperaturområde fra 2500-8000K, beam edge blødgøringskontrol for bløde, ensartede vask, og en unik "tre lag"-valg i avanceret tilstand. Med denne funktion kan operatøren vælge at bruge tre niveauer af effekter samtidig. Du kan samtidig vælge en baggrundsfarve, en indbygget intern sekvens og videoindhold fra en ekstern kilde – og hurtigt og nemt skifte mellem alle lagene.
Tilgængelig i Round eller Square linsekonstruktion, er Tambora Batten et alsidigt lysinstrument, der imødekommer mange behov for inline- eller matrixbelysningsapplikationer til en fremragende pris-til-ydeevne-forhold.
Specifikationer
Detaljer
- LIGHT SOURCE TYPE
- 16x 40W RGBW Osram LEDs
- Colour Temperature: 8000K to 2500K
- LED life expectancy: 50000Hrs L70
- It may vary depending on various factors, as type of use and environment
- PHOTOMETRIC DATA
- Zoom range: 4°- 53°
- 9934 Lumen Output
- Round: 16x Round lenses diameter: 52mm / Square: 16x Square lenses: 47x47mm
- High efficiency optical system
- NOISE LEVEL
- Auto: 40.5 dBA
- Constant: 43.5dBA
- Silent: 36.7 dBA
- Theatre: 36.2dBA
- CONTROL and CONNECTIONS
- Personalities: 5 modes with 13/17/27/29/35 control channels – Pixel Engine: 48 and 64 channels
- Control Protocol: DMX, Art-Net, RDM
- Arkaos Kling-Net protocol already included in the firmware
- DMX and RDM connectors: Locking 5 pin XLR IN/OUT
- Ethernet port: RJ45 IN
- Power connector: PowerCon True1 IN/OUT
- Built In Web Server
- DYNAMIC EFFECTS
- Individual LED control for each parameter
- White CT emulation 2500-8000K
- Beam edge softening control (in wash mode)
- Exclusive parallel beam consisting of an array of individually controllable micro-beams
- RGBW color mixing system
- Shape effects
- 16bit resolution with 5 different dimmer curves
- Electronic strobe/stop from 1 to 25 f/sec
- Pixel mapping control
- Unique “three layers” selection (Just in Advanced mode)
- Movement:
- Tilt: 220° - 16bit
- Fast/Normal speed selectable by Function channel
- Mechanical Tilt lock for safe transportation and maintenance
- HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- HOUSING
- Aluminum and steel structure with plastic covers
- IP20 protection rate
- WORKING POSITION
- Working in any position
- Hanging system: with fast-lock clamp
- Optional safety chain
- ELECTRICAL
- Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 4(2) fixtures @ 200-240Vac (@ 100-120Vac)
- Power Supply: Electronic auto range with active PFC
- Max Power consumption: 660VA
- THERMAL SPECIFICATION
- Max ambient temperature 45°C (113°F)
- Min ambient temperature -10°C (14°F)
- Max temperature of the external surface 90°C (194°F)
- Total heat dissipation: 2220 BTU/hr ±10% / 2340 kJ/hr ±10%
- SAFETY SPECS
- Minimum distance of illuminated objects 0.5 meters (1’ 8”)
- Minimum distance from flammable materials 0.2 meters (8”)
- Fuse T10A – 250V
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- COMPLIANCE
- CE Marking (in conformity to the following):
- 2014/35/EU – Low Voltage Directive (LVD)
- 2014/30/EU – Electromagnetic Compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- UKCA conforms to UK regulations:
- S.I. 2016 N. 1101
- S.I. 2016 N. 1091
- S.I. 2012 N. 3032
- S.I. 2010 N. 2617
- cMETus LISTED:
- UL 1573:2003
- CSA C22.2 N.166:2015
- PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell (2 positions)
- WEIGHT - SIZE
- 15.5 Kg (34.2 lbs)
- 111 x 1000 mm (base dimension) – 291 mm with vertical head (h)
- Distance between two fixtures: 1000mm
- ACCESSORIES
- Hanging Clamp: 389100/801 (included)
- Standing Clamps: 2x 389101/801 (included)
- Power cord: CAB02B/802 (included)
- Safety Chain: 105015/801 (optional)
- Foam shell: F21325/001 (optional)
- Flight case: CF1007F (optional)
- Round lenses assembly: CA3010000102 (optional)
- Square lenses assembly: CA3011000102 (optional)
- Frost 2°: CA3018000102 (optional)
- Frost 5°: CA3012000102 (optional)
- Frost 10°: CA3013000102 (optional)
- Frost 20°: CA3014000102 (optional)
- Frost 10°/60°: CA3015000102 (optional)
- Aligned Floor bracket: CA3016000102 (optional)
