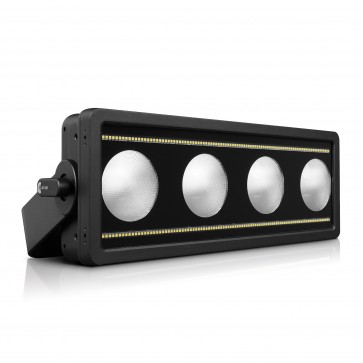

Tambora Flash er en hybrid armatur, der kan fungere både som strobo, wash og blinder, specifikt designet med en modulopbygning til brug i line array for at tilbyde nye kreative muligheder til lysdesignere.
Efter den store succes med deres serie af LED-bars har Claypaky udvidet Tambora-familien yderligere og introduceret Tambora Flash.
Strobo-sektionen er baseret på to rækker af meget kraftige hvide LED'er og en stor spredningsvinkel, som er i stand til at tilføre et markant og effektfuldt lys til enhver produktion.
Blinder- og wash-funktionerne opnås ved hjælp af 4 store centrale RGBWW LED-reflektorer på hver 100W, som kan styres individuelt i hver funktion via Advanced Layer Management. De varm-hvide LED'er giver den klassiske "varme" effekt, som kendetegner traditionelle blindere. Blinder-effekten kan dog også skabes med farvede LED'er, hvilket giver en mere dramatisk visuel effekt end normalt.
Både strobo- og blinder-effekterne er så visuelt kraftfulde, at de kan opleves tydeligt ved koncerter og live-events i fuldt dagslys – selv i direkte sollys.
Tambora Flash er udviklet til at kunne kombinere flere armaturer både horisontalt og vertikalt for at skabe klynger, der konceptuelt minder om line-array-systemer inden for lyd. Basisenheden er velegnet til mindre venues, men det modulære design gør det muligt hurtigt at sammenkoble flere enheder til større installationer i arenaer, koncertsale og stadioner.
Claypaky Tambora Flash tilbyder to hurtige koblingssystemer samt mulighed for justering af hvert enkelt armatur i klyngen med en vinkel på 30°, så systemet kan tilpasses enhver anvendelse.
Den avancerede mekanik og den nemme sammenkobling af matrix-armaturer gør Tambora Flash til et alsidigt og brugervenligt system.
Tambora Flash har en IP66-beskyttelsesgrad, hvilket sikrer optimal drift og pålidelighed ved udendørs brug.
Specifikationer
Detaljer
- LIGHT SOURCE
- Source type :
- LED RGBWW with 31° reflectors
- 2 lines cold white strobe LEDs split into 16 areas (120° beam angles)
- Power: 100W (x4)
- Color temperature:: 6000 K CCT (cold white strobe LEDs lines)
- CRI: Up to 70
- LED life expectancy: 50.000Hrs L70
- It may vary depending on various factors, as type of use and environment
- PHOTOMETRIC DATA
- Zoom:
- 31°: Beam Mode
- 45°: Field Mode
- Lumen output: 8458 Lm (integrating sphere)
- Front lens: Ø 85 mm (x4)
- Optical system.: High efficiency
- NOISE LEVEL
- Controlled by: Able to control linearly the speed of the fans
- Fixed presets:
- Silent mode: 36,7 dBA
- Theatre mode: 36,7 dBA
- Constant mode: 49,2 dBA
- Auto mode: 49,3 dBA
- CONTROL and CONNECTIONS
- Personalities:
- Main engine: 5 modes with 16 / 20 / 34 / 42 / 36 control ch.
- Pixels engine: 2 modes with 12 / 16 control ch.
- Strobe engine: 1 mode with 16 control ch.
- Protocols:
- DMX, Art-Net, RDM, sACN
- Connectors:
- Locking 5 pin XLR IN/THRU
- RJ45 IN/OUT
- Power connectors.:
- PowerCon True1 IN/OUT
- Web server:
- Built-in
- CloudIO:
- Fully compatible
- DYNAMIC EFFECTS
- Colors:
- Advanced layers management (color, internal shape, pixel mapping + strobe)
- Pixel mapping and strobe split into 8 different areas per line (Tot. 16)
- Individual LED control of four central RGBWW LEDs with reflectors
- Pre-programmed shape selection of static and dynamic patterns, adjustable in color, speed, direction, fade and strobe
- Red shift
- Dimmer / Shutter:
- High resolution electronic dimmer - 24 bit, 5 curves
- Electronic strobe 25f/sec
- Strobe shape, speed, fade duration ranging from 1Hz to 25Hz
- HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- HOUSING
- Magnesium housing
- IP66 protection rate
- Working in any position
- Advanced mechanics for horizontal and vertical combination
- Hanging system: with fast-lock Omega clamps (1/4) turn on the base
- Adjustable angle from 0° to 20°
- Optional safety chain
- ELECTRICAL
- Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 1(0) fixtures @ 200-240Vac (@ 100-120Vac)
- In/Out MAX: 1 (0) fixtures @200-240Vac (@100-120Vac)
- Power Supply: Electronic auto range with active PFC
- MAX power consumption: 1150VA @230Vac 50Hz
- THERMAL SPECIFICATION
- Max ambient temperature
- 45°C (113°F)
- Min ambient temperature
- 20°C (-4°F)
- Max temperature of the external surface:
- 90°C (194°F)
- Total heat dissipation:
- 3928 BTU/hr ±10% / 4140 kJ/hr ±10%
- SAFETY SPECS
- Minimum distance of illuminated objects:
- 0.5 meters (1’ 8”)
- Minimum distance from flammable materials:
- 0.2 meters (8”)
- Protections:
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- COMPLIANCE
- CE Marking (in conformity to the following):
- 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU – Electromagnetic compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- UKCA conforms to UK regulations:
- S.I. 2016 N. 1101
- S.I. 2016 N. 1091
- S.I. 2012 N.3032
- S.I. 2021 N. 745
- cMETus Listed
- UL 1573:2003
- CSA C22.2 N.166: 2015
- PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell (4 position)
- WEIGHT - SIZE
- Weight:
- 10.4 Kg (22.9 lbs).
- Dimensions without handles:
- 497 x 180 x 186 mm
- 19,56 x 7,08 x 7,32 In
- Dimensions with handles:
- 537 x 180 x 244 mm
- 21,14 x 7,08 x 9,60 In
- ACCESSORIES
- Omega bracket: 183102-805 (Included)
- ETL Power: CAB02B-802* (Optional)
- Cord 1.5 m (bare end with IP65 PowerConTrue1 connector)
- Connecting Bracket Kit: 3038000102 (Optional)
- Aliscaf holder: CA3031000102 (Optional)
- Ground Supporter Straight: CA3044000102 (Optional)
- Ground Supporter Inclined: CA3043000102 (Optional)
- Ground Stander: CA3042000102 (Optional)
- Foam shell: F21350/001 (Optional)
- Flight case: (4 position): CF1020F (Optional)
- Safety Chain: 105041-003 (Optional)
- Barndoor: CA3064000102 (Optional)
- Top Hat: CA3065000102 (Optional)
- Frost filters: (Optional)
- 10°: CA3054000102
- 15°: CA3055000102
- 20°: CA3056000102
- 30°: CA3057000102
- 40°: CA3058000102
- 50°: CA3059000102
- 80°: CA3060000102
- Neutral: CA3061000102
- 60° x 10°: CA3062000102
- 10° x 60°: CA3063000102
