Indlevende kraftfulde effekter til din kreativitet

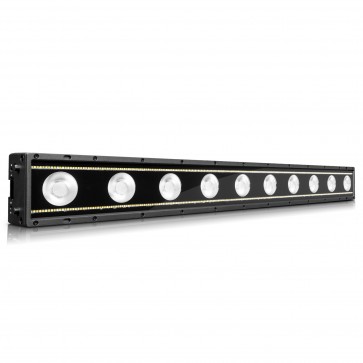

Dyk ned i, hvad der adskiller Tambora Glare
- Multi-funktionel hybridbar: Med to strobelyslinjer, hver med 25 segmenter af WW/CW LED'er, skaber Tambora Glare elektrificerende rytmiske pulser til energifyldte shows. Dens 10 x 50W RGBA LED'er leverer rige, varme nuancer med præcis farveblanding, mens red-shift teknologien efterligner gløden fra tungsten for fantastiske dæmningseffekter.
- Præcis kontrol & problemfri integration: Single-pixel mapping sikrer præcise, dynamiske visuelle effekter, mens Advanced Layer Management lader dig blande farver, indbyggede makroer og eksternt videocontent. Konfigurer nemt i horisontale eller vertikale arrays med modulære tilbehør og magnetiske filtre som frost og neutral density. Den kan kombineres med Tambora Stormy Linear for en visuel familiefølelse og stærk effekt.
- Bygget til alle miljøer: Designet til indendørs og udendørs brug, tåler dets IP66-klassificerede kabinet støv og vand. Det lette, modulære design (mindre end 14 kg) muliggør nem opsætning og transport, med et indbygget låsesystem for sikker montering.
- Fejlfri ydeevne, uanset sted: Tambora Glare garanterer sømløs pixelspacing, glidende overgange og dristige, høj-synlige effekter – selv i store lokaler eller på kamera. Uanset om det er til TV, turné eller EDM, leverer den den ønskede ydeevne.
Kontakt os for at opleve Tambora Glare i aktion!
Specifikationer
Detaljer
- LIGHT SOURCE
- Source type:
- RGBA LEDs 10x50W (Blinder Engine)
- 2 (Lines) x 125CW+125WW x1W Leds for each line (Strobe Engine)
- Color temperature: 2500K - 8000K
- LED life expectancy:
- 50.000 Hrs L70
- It may vary depending on various factors, as type of use and environment
- PHOTOMETRIC DATA
- Aperture:
- RGBA LEDs: 22°
- CW and WW LED strobe: 120°
- Lumen output:
- 19.874 Lumen output (integrating sphere)
- Optical system:
- High efficiency
- NOISE LEVEL
- Fixed presets:
- Silent mode: 32.0 dB
- Theatre mode: 32.2 dB
- Constant mode: 38.3 dB
- Auto mode: 38.2 dB
- CONTROL and CONNECTIONS
- Personalities:
- Main engine: 19 / 41 / 52 control channels
- Pixel engine: 40 control channels
- Strobe engine: 50 / 50 / 50 / 100 control channels
- Protocols:
- DMX, Art-Net, RDM, sACN
- Connectors:
- Locking 5 pin XLR IN/THRU
- RJ45 IN /OUT
- Power con:
- PowerCon True1 IN/OUT
- Web Server:
- Built In
- CloudIO:
- Fully compatible
- DYNAMIC EFFECTS
- Colours:
- 10 pcs 4-in-1 RGBA LEDs
- 500 pcs Cold+Warm white LEDs split into 50 areas
- Advanced layers management (color, internal shape, pixel mapping + strobe)
- White CT emulation 2500 – 8000 K
- RGBA and strobe shape effect
- Red shift
- Frost:
- Neutral Density filter (Optional)
- White filter 60° (Optional)
- Dimmer/Shutter:
- High resolution electronic dimmer, 24 bit, 5 curves
- Electronic strobe 0,3 to 25 f/sec
- HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- HOUSING
- Magnesium structure
- One side handles for transportation
- IP66 protection rate
- Built-in mechanical horizontal alignment system
- Working in any position
- Accessories for vertical alignment (optional)
- Optional safety chain (optional)
- ELECTRICAL
- Operating Voltage:
- 100 - 240V, 50 / 60 Hz
- Power Supply:
- Electronic auto range with active PFC
- Max Power consumption:
- Max 480W @100V 4,8A
- THERMAL SPECIFICATION
- Max ambient temperature:
- 45°C (113°F)
- Min ambient temperature:
- 20°C (-4°F)
- Max temp. of ext. surface:
- 90°C (194°F)
- SAFETY SPECS
- Min. dist. of illum. objs:
- 0.2 m (8’’)
- Min. dist. from flamm. mat.:
- 0,2 m 8 in
- Protections:
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- T10A 50V 5x20 mm – External mains fuse
- T6.3A 250V 5x20mm – External fuse
- COMPLIANCE
- CE Marking (in conformity to the following):
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU – Electromagnetic compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- UKCA conforms to UK regulations:
- S.I. 2016 N. 1101
- S.I. 2016 N. 1091
- S.I. 2012 N. 3032
- S.I. 2021 N. 745
- cMETus Listed:
- UL 1573:2003
- CSA C22.2 N.166: 2015
- PACKAGING
- Carton box + polystyrene
- Carton box + Foam shell
- Flight case + Foam shell
- WEIGHT - SIZE
- Weight:
- 13.5 Kg (29.76 lbs)
- Dimensions:
- 1000 x 198 x 106 mm
- 39.4 x 7.79 x 4.2 in
- ACCESSORIES
- Omega bracket A: 445006/801 (Included)
- Adjust. Bracket: 445005/801 (Included)
- Handle bracket: VOL011/001 (Included) x2
- ETL Power: CAB02B/802 (Included)
- Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
- Flight case (4 pos.): CF1037F (Optional)
- Clear side for strobe frost filters (Optional):
- Transparent 10°: CA2005000102
- Transparent 20°: CA2006000102
- Transparent 30°: CA2007000102
- Middle black: CA2008000102
- Interchangable with T. Glare frost filters (Optional):
- 10°: CA2009000102
- 20°: CA2010000102
- 30°: CA2011000102
- Black: CA2012000102
- Base plate + hang adapter: CA2013000102 (Optional)
- Stand plate: CA2014000102 (Optional)
- Hang adapter: CA2015000102 (Optional)
- Square base plate + hang adapter: CA2016000102 (Optional)
- Square base plate: CA2017000102 (Optional)
- Floor stander assembly: CA3078000102 (Optional)
- Reinforced assembly: CA3079000102 (Optional)
- Parallel con. bracket ass.: CA3080000102 (Optional)
- Vertical bracket assembly: CA3081000102 (Optional)
- Safety chain: 105041/003 (Optional)
- Clamp: C21070 (Optional)
- Omega bracket: 183102/805 (Optional)
