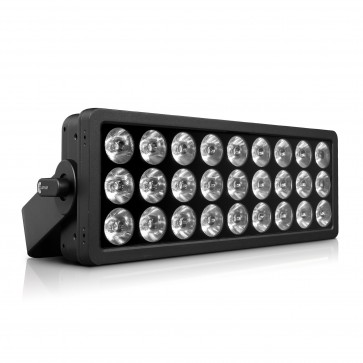

Volumetriske effekter tages til det ekstreme!
Alsidig og nem at bruge
Denne kompakte kraftkarl kan bruges i netværk, scenekanter, lodrette eller vandrette arrays eller flyvende barer. Dens design er kompatibelt med Tambora Flash og Stormy, hvilket muliggør kreative kombinationer for imponerende visuelle effekter.
Dynamisk kontrol
Med avanceret lagstyring skabes flere effekter samtidig. Mix og match tre effekters lag, skift problemfrit mellem baggrundsfarver, makrosekvenser og eksternt videoindhold for dynamiske og engagerende shows.
Dramatisk visuel effekt
Tambora Rays’ høje output og langt kastet fokuseret smal stråle skaber dramatiske luftige effekter til at fremhæve nøgleøjeblikke. Den 7° smalle strålevinkel kan ændres med valgfrie tilbehør som frostfiltre og barndoors for præcis kontrol.
Fremragende ydeevne og pålidelighed
Det topmoderne optiske design sikrer fremragende ydeevne, præcision og enestående farvekvalitet. Bygget til at holde, er Tambora Rays en del af den IP66-klassificerede Shield-familie, hvilket gør den vandtæt, støvtæt og vedligeholdelsesfri til både indendørs og udendørs brug.
Bygget til at holde
Energibesparende og nem at vedligeholde, reducerer Tambora Rays betydeligt driftsomkostningerne. Ideel til TV-studier, turnéer og teatermiljøer tilføjer dens slanke design og avancerede pixelmapping-kapaciteter et karakteristisk præg til dine opsætninger.
Tambora Rays tilbyder fremragende eventbelysning til både indendørs og udendørs anvendelser. Med professionel ydeevne, fremragende pålidelighed og stor værdi skinner den virkelig.
Specifikationer
Detaljer
- LIGHT SOURCE
- Source type: 27 LEDs RGBW W x 40W
- CRI: Up to 80
- LED life expectancy: 50.000 Hrs L70
- It may vary depending on various factors, as type of use and environment
- PHOTOMETRIC DATA
- Lumen Output: 23702 Lm (Integrating Sphere)
- Beam angle:
- 13,7° : 10%
- 7,1° : 50%
- Optical system: HIgh efficiency
- NOISE LEVEL
- Controlled by: Able to control linearly the speed of the fans
- Fixed presets:
- Auto: 46.3 dB
- Silent: 32.5 dB
- Theatre: 32.2 dB
- Constant: 51.4 dB
- CONTROL and CONNECTIONS
- Personalities:
- Main engine: 3 modes with 10 / 32 / 26 control channels
- Pixels engine : 2 modes with 108 control channels
- Protocols:
- DMX, Art-Net, sACN, RDM, Webserver
- Connectors:
- Locking 5 pin XLR IN/OUT
- RJ45 IN/OUT
- Power connector:
- PowerCon True1 IN/OUT
- Web Server:
- Built In
- CloudIO:
- Fully compatible
- DYNAMIC EFFECTS
- Colours:
- Advanced layers management (color, internal shape, pixel mapping (3 x 9)
- Linear CTO 2700K to 8000K
- Individual control of 27 LEDs
- Pre-programmed shape selection of static and dynamic patterns,and dynamic patterns, adjustable in color, speed, direction, fade and strobe
- Strobe:
- Electronic strobe from 1 to 30 f/sec
- Dimmer/Shutter:
- High resolution electronic dimmer 16Bit 5 curves
- HARDWARE and SOFTWARE
- Long life self charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- HOUSING
- Magnesium housing
- IP66 protection rate
- Working in any position
- Advanced mechanics for horizontal and vertical combination
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
- Optional safety chain
- ELECTRICAL
- Operating Voltage: 100–240V, 50/60 Hz
- Power Supply: Electronic auto range with active PFC
- Max Power consumption:
- 720 W @100V 7,2A
- 700 W @240V 3,2A
- THERMAL SPECIFICATION
- MAX Ambient temperature:
- 45°C (113°F)
- Min Ambient temperature:
- 20°C (-4°F)
- MAX temperature of the external surface:
- 90°C (194°F)
- Total heat dissipation:
- 2460 BTU/hr ±10% / 2592 kJ/hr ±10%
- SAFETY SPECS
- Minimum distance of illuminated objects:
- 0,5 m (1’8’’)
- Minimum distance from flammable materials:
- 0.2 meters (8”)
- Protections:
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- External mains fuse T 10A 250V
- External fuse for battery T3A 250V
- COMPLIANCE
- CE Marking (in conformity to the following):
- 2014/35 EU Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU Electromagnetic compatibility of equipment (EMC)
- 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
- UKCA: conforms to UK Regulations:
- S.I. 2016 N. 1101
- S.I. 2016 N. 1091
- S.I. 2012 N. 3032
- S.I. 2021 N. 745
- cMETus Listed:
- UL 1573:2003
- CSA C22.2 N. 166: 2015
- PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell
- WEIGHT - SIZE
- Weight:
- 10,44 Kg
- 23,02 lbs
- Dimensions without handle:
- 497 x 180 x 186 mm
- 19,56 x 7,08 x 7,32 In
- Dimensions with handle:
- 537 x 180 x 244 mm
- 21,14 x 7,08 x 9,61 In
- ACCESSORIES
- Omega bracket: 183102-805 (Included)
- ETL Power: CAB02B-802 (Optional)
- Cord 1.5 m (bare end with IP65 PowerConTrue1 connector)
- Connecting Bracket Kit: 3038000102 (Optional)
- Aliscaf holder: CA3031000102 (Optional)
- Ground Supporter Straight: CA3044000102 (Optional)
- Ground Supporter Inclined: CA3043000102 (Optional)
- Ground Stander: CA3042000102 (Optional)
- Snoot: CA3076000102 (Optional)
- Flash inter. Aliscaff: CA3077000102 (Optional)
- Foam shell: F21350-001 (Optional)
- Flight case (4 position): CF1020F (Optional)
- Safety Chain: 105041-003 (Optional)
- Barndoor: CA3064000102 (Optional)
- Top Hat: CA3065000102 (Optional)
- Frost filters: (Optional)
- 10°: CA3054000102
- 15°: CA3055000102
- 20°: CA3056000102
- 30°: CA3057000102
- 40°: CA3058000102
- 50°: CA3059000102
- 80°: CA3060000102
- Neutral: CA3061000102
- 60° x 10°: CA3062000102
- 10° x 60°: CA3063000102
- Safety chain: 105041/003 (Optional)
- Clamp: C21070 (Optional)
