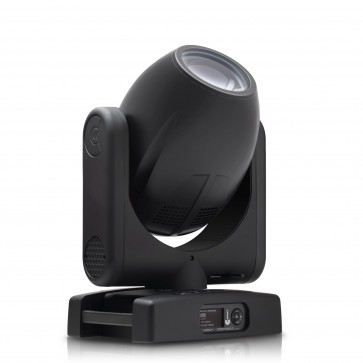

Som den første og eneste IP66-klassificerede laser moving head på markedet kombinerer Xtylos Aqua ekstraordinære farvedynamikker og laserpræcision med omfattende vejrbeskyttelse. Den integrerede ventilator eliminerer kondens på frontlinsen, hvilket sikrer konstant output og stråleydelse under alle forhold. Det trådløse DMX-system, som er integreret som standard, tilføjer yderligere fleksibilitet til komplekse installationer.
Xtylos Aqua fås med Marine Shield, Claypakys behandling udviklet til krydstogtskibe og kystmiljøer. Marine Shield forlænger armaturens modstandsdygtighed over for det marine miljø og giver målrettet beskyttelse mod saltholdig luft og korrosion, så dets fulde spektrum af levende, mættede farver fungerer fejlfrit om bord, uden kompromis med output eller pålidelighed over tid. Uanset om det lyser op på krydstogtskibsscener, udendørs dæk eller kystnære arenaer, er Xtylos Aqua en naturlig løsning til marine installationer.
Udstyret med to gobo-hjul (et roterende med syv gobos, et statisk med tolv), et prismehjul med tre prismer og et sekstenfladet prisme på en dedikeret kanal giver Xtylos Aqua designere et bredt udvalg af kreative værktøjer. Dens stråleåbning spænder over et ekstremt smalt 1° til 7°, kan reduceres til 0,5° med strålereducere – perfekt til knivskarpe luftbårne effekter, der fanger publikum både indendørs og udendørs, fra teater og tv til turnéer, globale sportsbegivenheder og mere.
Specifikationer
Detaljer
- LIGHT SOURCE TYPE
- Source type: tailor-made laser engine, enclosed in a sealed module
- Source power: 250W
- Solid, flat field, saturated, ultra-concentrated light beam without any visible hotspots
- Long lasting light source (20000 hours) with minimal decay
- It may vary depending on various factors, as type of use and environment
- PHOTOMETRIC DATA
- Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
- Total lumen output: 2900 lm
- Front lens diameter: 150 mm
- High efficiency optical system
- NOISE LEVEL
- 54.2 dBA
- CONTROL and CONNECTIONS
- Personalities: Single mode with 31 control channels
- Integrated Wireless DMX system as standard (Wireless Solution)
- Control Protocol: DMX, Art-Net, RDM, sACN
- DMX and RDM connectors: Locking 5 pin XLR IN/OUT
- Ethernet port: RJ45 IN
- Power connector: PowerCon True1 IN/OUT
- Built In Web Server
- DYNAMIC EFFECTS
- Colours:
- RGB laser based system with derating to preserve laser diodes
- Linear virtual CTO 2500K – 6500K
- Gobos:
- 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
- Ext diam. 25.9mm (cut @ 25mm)
- Image diam. 11mm
- Thickness 0.5mm
- 1 Static gobo wheel with 12 gobo slots: 5 gobo and 7 beam reducers
- Rotating Effects:
- Rotating Prisms disk: Convex plane, Pyramid 6 facets, Linear 6 facets, Frost
- 16 Facets prism with rotation in both direction at variable speed
- Movement:
- Tilt: 248° - 16bit
- Pan: 540° - 16bit
- Accuracy: Resolution ± 0.63° (Range 1.26°)
- Automatic repositioning
- Fast/Normal speed selectable by Function channel
- Mechanical Pan/Tilt lock for safe transportation and maintenancee
- Beam:
- 1° aperture – beam mode
- Motorized Focus – 16bit
- Dimmer/Shutter:
- Very precise 0-100% digital dimmer, dimmer Resolution: 24 bit
- High speed electronic Shutter and Strobe
- HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
- CloudIO compatibility
- HOUSING
- Aluminum and steel structure with plastic covers
- Two side handles for transportation
- IP66 protection rate
- Marine Grade protection
- WORKING POSITION
- Working in any position
- Hanging system: with fast-lock omega clamps (1/4 turn) on the base
- Optional safety chain
- ELECTRICAL
- Operating Voltage: 100-240V, 50/60 Hz
- Power Supply: Electronic auto range with active PFC
- Max Power consumption: 400VA
- Mains Out: Max 1600VA
- THERMAL SPECIFICATION
- Max ambient temperature 40°C (104°F)
- Min ambient temperature -20°C (-4°F)
- Max temperature of the external surface 60°C (140°F)
- Total heat dissipation: 1366 BTU/hr ±10% / 1440 kJ/hr ±10%
- SAFETY SPECS
- Minimum distance of illuminated objects 10 meters (32’ 10”)
- Minimum distance from flammable materials 0.2 meters (8”)
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans and heat sink
- Fuse T6A – 250V
- COMPLIANCE
- In conformity with the European Directives
- 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU - Electromagnetic Compatibility (EMC)
- 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
- cMETus Listed
- PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell (2 positions)
- WEIGHT - SIZE
- 30.4 Kg (67.2 lbs).
- 390x294mm (base dimension) – 608mm with vertical head (h)
- Distance between two fixtures 400mm
- ACCESSORIES
- Omega clamps: 2x183102/805 (included)
- ETL Mains cable, 1.5mt. (Bare Ends / IP65 PowerConTrue1 connector): CAB0NL/802 (included)
- Flight case + Foam shell: CF1011F (optional)
- CRMX antenna extension: ANT004 (optional)
- Safety Chain: 105041/001 (optional)
- Clamp: C21070 (optional)
