Beskrivelse
Detaljer
• Servo-balanced XLR Inputs & Outputs
• Simple and effective design
• Output Mute switches
• Linkwitz-Riley 24dB Octave filters

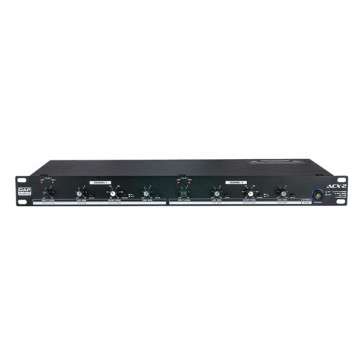

The ACX-2 is a stereo 2-way or mono 3-way active crossover. The standard 19" rugged rack mountable housing and high quality finish, good selection of high end components and great sound characteristics results in a road proof active crossover.
• Simple and effective design
• Output Mute switches
• Linkwitz-Riley 24dB Octave filters
The ACX-2 is a stereo 2-way or mono 3-way active crossover. The standard 19" rugged rack mountable housing and high quality finish, good selection of high end components and great sound characteristics results in a road proof active crossover.
Specifikationer
Detaljer
• Input Connectors: XLR
• Input impedance: 20 KOhm balanced
• Output connectors: XLR
• Output impedance: 300 Ohm balanced
• S/N Rate (A weight): >95 dB
• Freq. response: 3 Hz - 40 kHz (+/-0.3 dB)
• THD: < 0.004% typ. @ +4 dBu, 1KHz
• Crossover freq. range: 80 Hz - 10 kHz
• Phase correct range: 0°-180°
• Dynamic range: 115 dB
• Filter type: Linkwitz-Riley, 24dB Octave
• Controls: input levels, output levels, crossover
• frequency, mute switch
• Indicators: input clip LED
• Power: 230V AC, 50Hz
• Dimensions: 483 x 192 x 44 mm (LxWxH)
• Weight: 2,66 kg
• Input impedance: 20 KOhm balanced
• Output connectors: XLR
• Output impedance: 300 Ohm balanced
• S/N Rate (A weight): >95 dB
• Freq. response: 3 Hz - 40 kHz (+/-0.3 dB)
• THD: < 0.004% typ. @ +4 dBu, 1KHz
• Crossover freq. range: 80 Hz - 10 kHz
• Phase correct range: 0°-180°
• Dynamic range: 115 dB
• Filter type: Linkwitz-Riley, 24dB Octave
• Controls: input levels, output levels, crossover
• frequency, mute switch
• Indicators: input clip LED
• Power: 230V AC, 50Hz
• Dimensions: 483 x 192 x 44 mm (LxWxH)
• Weight: 2,66 kg
