• 4000W Total RMS Power Class-D amplifiers
• CELESTION high-driver inside
• Ultra lightweight, rugged and compact design
• DSP allows you to personalize your sound
• Dual input for making your mix

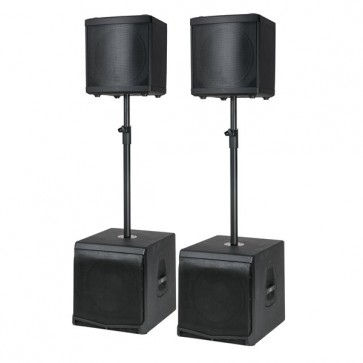

Set contains: 2x D3223 DLM-12A Top 2x D3224 DLM-12SA Sub 2x D8450 Distance tube 35mm The DLM series is our new solution for all entertainers who need a very lightweight and compact speaker system which is very rugged and roadproof. Due to the efficient Class-D power amplifier and build-in DSP protection system, it is almost impossible to deform your sound when normally used. High-end components, including a CELESTION high-driver, give lots of sound pressure and a very high detailed sound. If you want to have a more personalized sound, this is no problem for the DLM. Just add the optional USB control module and now it is possible to adjust the Gain, Equalizer, Low- & High-pass filter by simply using the interface on your laptop
• CELESTION high-driver inside
• Ultra lightweight, rugged and compact design
• DSP allows you to personalize your sound
• Dual input for making your mix
Set contains: 2x D3223 DLM-12A Top 2x D3224 DLM-12SA Sub 2x D8450 Distance tube 35mm The DLM series is our new solution for all entertainers who need a very lightweight and compact speaker system which is very rugged and roadproof. Due to the efficient Class-D power amplifier and build-in DSP protection system, it is almost impossible to deform your sound when normally used. High-end components, including a CELESTION high-driver, give lots of sound pressure and a very high detailed sound. If you want to have a more personalized sound, this is no problem for the DLM. Just add the optional USB control module and now it is possible to adjust the Gain, Equalizer, Low- & High-pass filter by simply using the interface on your laptop
Specifikationer
Detaljer
• DLM-12A: 2-way Active Speaker system
• Coverage: 90° conical
• Transducer: 12" Woofer, 2.5" voice coil
• Driver: 1" Exit Compression CELESTION Driver,
• 1.75" Voice Coil
• Active Crossover 1.85kHz-DSP Processed with 24dB
• slope
• Digital Presets: NORMAL / USER
• Frequency response: 45Hz-20kHz (-10dB)
• Max SPL @ 1m: 128dB
• Power Amp: High power 500W Low + 500W High
• Input 1: (MIC/Line) with Combo XLR/Jack
• Input 2: Combo XLR/Jack and RCA
• Mix Output: Male XLR balanced
• USB Control (optional): Gain/EQ/ Trim / high pass
• filter,and low pass filter and bandpass filter
• External Control: Volume Control
• Phase Switch
• Power ON
• Clip Limiter
• USB PORT for optional USB control
• Electric Protection:
• Thermal/Convection-Fan/Overload/Digital
• Lim./Compressor
• Handling: One standard 35mm metal pole-mount plus
• one handle on top
• Enclosure: 15mm poplar plywood cabinet & ABS
• High-strength top and bottom protectors
• Dimensions (HxWxD): 414x388x365mm
• Weight: 18,7Kg
• DLM-12SA: 12" Active Subwoofer Speaker system
• Transducer: 12" Woofer, 3" voice coil
• Active Crossover: 60Hz - 120Hz-DSP Processor
• Digital Presets: NORMAL/ USER
• Frequency Response: 35Hz - 200Hz (-10dB)
• Max SPL @1m: 128dB
• Power Amp: High power Class D 1000W
• Inputs: Female XLR balanced differential(stereo
• left/ right)
• Input Level: Line -4dBu
• Full range Output: Male XLR balanced
• High Pass Output: Male XLR balanced
• USB Control (optional): Gain/EQ/ Trim / high pass
• filter,and low pass filter and bandpass filter
• External Control: Volume Control
• Phase Switch
• Power ON
• Clip Limiter
• USB PORT for optional USB control
• Electric Protection:
• Thermal/Convection-Fan/Overload/Digital
• Lim./Compressor
• Handling: One standard 35mm metal pole-mount plus
• two handles
• Enclosure: 15mm poplar plywood cabinet.
• Dimensions (HxWxD): 439x417x512mm
• Weight: 18,7Kg
• Coverage: 90° conical
• Transducer: 12" Woofer, 2.5" voice coil
• Driver: 1" Exit Compression CELESTION Driver,
• 1.75" Voice Coil
• Active Crossover 1.85kHz-DSP Processed with 24dB
• slope
• Digital Presets: NORMAL / USER
• Frequency response: 45Hz-20kHz (-10dB)
• Max SPL @ 1m: 128dB
• Power Amp: High power 500W Low + 500W High
• Input 1: (MIC/Line) with Combo XLR/Jack
• Input 2: Combo XLR/Jack and RCA
• Mix Output: Male XLR balanced
• USB Control (optional): Gain/EQ/ Trim / high pass
• filter,and low pass filter and bandpass filter
• External Control: Volume Control
• Phase Switch
• Power ON
• Clip Limiter
• USB PORT for optional USB control
• Electric Protection:
• Thermal/Convection-Fan/Overload/Digital
• Lim./Compressor
• Handling: One standard 35mm metal pole-mount plus
• one handle on top
• Enclosure: 15mm poplar plywood cabinet & ABS
• High-strength top and bottom protectors
• Dimensions (HxWxD): 414x388x365mm
• Weight: 18,7Kg
• DLM-12SA: 12" Active Subwoofer Speaker system
• Transducer: 12" Woofer, 3" voice coil
• Active Crossover: 60Hz - 120Hz-DSP Processor
• Digital Presets: NORMAL/ USER
• Frequency Response: 35Hz - 200Hz (-10dB)
• Max SPL @1m: 128dB
• Power Amp: High power Class D 1000W
• Inputs: Female XLR balanced differential(stereo
• left/ right)
• Input Level: Line -4dBu
• Full range Output: Male XLR balanced
• High Pass Output: Male XLR balanced
• USB Control (optional): Gain/EQ/ Trim / high pass
• filter,and low pass filter and bandpass filter
• External Control: Volume Control
• Phase Switch
• Power ON
• Clip Limiter
• USB PORT for optional USB control
• Electric Protection:
• Thermal/Convection-Fan/Overload/Digital
• Lim./Compressor
• Handling: One standard 35mm metal pole-mount plus
• two handles
• Enclosure: 15mm poplar plywood cabinet.
• Dimensions (HxWxD): 439x417x512mm
• Weight: 18,7Kg
