• High level of reliability due to full protection circuit
• Ultra lightweight (7,6Kg)
• PFC Digital Power Supply

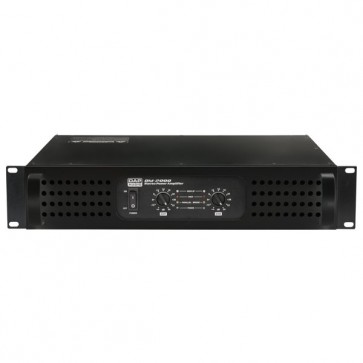

The Dap Audio DM-series amplifier are built from latest technology components and systems ensuring a very lightweight amplifier with enough power for most applications. The 2 available models are configurable in stereo/parallel/bridge mode, making different power levels from 300W till 2000W available.
• Ultra lightweight (7,6Kg)
• PFC Digital Power Supply
The Dap Audio DM-series amplifier are built from latest technology components and systems ensuring a very lightweight amplifier with enough power for most applications. The 2 available models are configurable in stereo/parallel/bridge mode, making different power levels from 300W till 2000W available.
Specifikationer
Detaljer
• Stereo Mode: 2x 1000W @ 4 Ohm (RMS)
• (Both Channels Drive) 2x 500W @ 8 Ohm (RMS)
• Bridge Mode: 1x 1900W @ 8 Ohm (RMS)
• Input sensitivity: 0,9 - 1,1V
• Input Impedance: 20K? balanced or 10K? Unbalanced
• Frequency Response: 20 - 45,000 Hz, -1 dB THD+N: <
• 0.05%
• Damping Factor at 8 Ohm: > 180
• Slew Rate: > 40 V/µS
• Input CMRR: > 60 dB
• Crosstalk 20 - 20,000 Hz: > 70 dB
• Signal to Noise Ratio: > 99 dB A-weighted
• Power Circuitry: PFC-Switching Power Amp CLASS-D
• Protections: Short circuit, open circuit, thermal,
• ultrasonic and RF protection
• Input Connectors: RCA and XLR Combo
• Output connectors: 2x Speakon + binding posts
• Dimensions: 483 x 431 x 89mm
• Power Supply: 110-120VAC or 220-240VAC, 50/60Hz
• Weight: 7,6Kg
• (Both Channels Drive) 2x 500W @ 8 Ohm (RMS)
• Bridge Mode: 1x 1900W @ 8 Ohm (RMS)
• Input sensitivity: 0,9 - 1,1V
• Input Impedance: 20K? balanced or 10K? Unbalanced
• Frequency Response: 20 - 45,000 Hz, -1 dB THD+N: <
• 0.05%
• Damping Factor at 8 Ohm: > 180
• Slew Rate: > 40 V/µS
• Input CMRR: > 60 dB
• Crosstalk 20 - 20,000 Hz: > 70 dB
• Signal to Noise Ratio: > 99 dB A-weighted
• Power Circuitry: PFC-Switching Power Amp CLASS-D
• Protections: Short circuit, open circuit, thermal,
• ultrasonic and RF protection
• Input Connectors: RCA and XLR Combo
• Output connectors: 2x Speakon + binding posts
• Dimensions: 483 x 431 x 89mm
• Power Supply: 110-120VAC or 220-240VAC, 50/60Hz
• Weight: 7,6Kg
