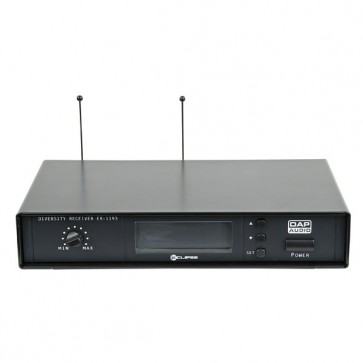

DAP ER-1193 1-kanals UHF modtager m 193 frekvenser

Varenr: D145082B
• 1-kanals UHF modtager med 193 frekvenser
• Frekvens 822-846MHz som nemt vælges på fronten
• Passer til DAP EB193 og DAP EM193 sendere
• Rækker ca. 100 mtr - afhængig af forhold
• Mål 211 x 152 x 40 (1U); (BxDxH) - Vægt 1,5 kg
Meget fleksibel UHF modtager med 193 valgfrie frekvenser.


• 193 selectable Frequencies.
• True diversity, minimum dropouts
• PLL synthesised technology
• Compact half-rack metal housing
• Lock functionality
• Designed for EM-193 / EB-193
The DAP ER-1193 is an one channel true diversity receiver. It has a clear display with all important information directly on screen. It can be used in combination with the DAP EM-193 handheld or EB-193 beltpack. The lock functionality avoids accidental modification of frequency sensitivity or power-off. It has a half rack metal housing which makes it possible to mount 2 receivers in 1HE with the optional rack mount adapter D1453.

Frequency Preparation: PLL Synthesised Control Frequency Stability: ±0.005% S/N Ratio: >100 dB Display: LCD Display Contents: Frequency, Antenna A/B, Mute display, RF/AF Level Meter, battery indicator Controls: Power On/Off, Frequency Up/down Frequency Scan, Audio Level Audio Output Level: -12 dB AF Output Impedance: 600 Ohm Squelch: Pilot Tone & Noise Mute Operation Voltage: 12-18 VDC, 500 mA Output Connector: XRL Balanced/ 6,3 mm Unbalanced Dimension: 211 x 152 x 40 mm (LxWxH)
Læs mere om DAP-Audio
2.379,00 DKK



Inkl. moms
  • Ring for leveringstid

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• 1-kanals UHF modtager med 193 frekvenser
• Frekvens 822-846MHz som nemt vælges på fronten
• Passer til DAP EB193 og DAP EM193 sendere
• Rækker ca. 100 mtr - afhængig af forhold
• Mål 211 x 152 x 40 (1U); (BxDxH) - Vægt 1,5 kg
Meget fleksibel UHF modtager med 193 valgfrie frekvenser.


• 193 selectable Frequencies.
• True diversity, minimum dropouts
• PLL synthesised technology
• Compact half-rack metal housing
• Lock functionality
• Designed for EM-193 / EB-193
The DAP ER-1193 is an one channel true diversity receiver. It has a clear display with all important information directly on screen. It can be used in combination with the DAP EM-193 handheld or EB-193 beltpack. The lock functionality avoids accidental modification of frequency sensitivity or power-off. It has a half rack metal housing which makes it possible to mount 2 receivers in 1HE with the optional rack mount adapter D1453.

Frequency Preparation: PLL Synthesised Control Frequency Stability: ±0.005% S/N Ratio: >100 dB Display: LCD Display Contents: Frequency, Antenna A/B, Mute display, RF/AF Level Meter, battery indicator Controls: Power On/Off, Frequency Up/down Frequency Scan, Audio Level Audio Output Level: -12 dB AF Output Impedance: 600 Ohm Squelch: Pilot Tone & Noise Mute Operation Voltage: 12-18 VDC, 500 mA Output Connector: XRL Balanced/ 6,3 mm Unbalanced Dimension: 211 x 152 x 40 mm (LxWxH)

Leverandør beskrivelse:
• 193 selectable Frequencies.
• True diversity, minimum dropouts
• PLL synthesised technology
• Compact half-rack metal housing
• Lock functionality
• Designed for EM-193 / EB-193
The DAP ER-1193 is an one channel true diversity receiver. It has a clear display with all important information directly on screen. It can be used in combination with the DAP EM-193 handheld or EB-193 beltpack. The lock functionality avoids accidental modification of frequency sensitivity or power-off. It has a half rack metal housing which makes it possible to mount 2 receivers in 1HE with the optional rack mount adapter D1453.

Specifikationer

Detaljer

• Frequency Preparation: PLL Synthesised Control
• Frequency Stability: ±0.005%
• S/N Ratio: >100 dB
• Display: LCD
• Display Contents: Frequency, Antenna A/B, Mute
• display, RF/AF Level Meter, battery indicator
• Controls: Power On/Off, Frequency Up/down
• Frequency Scan, Audio Level
• Audio Output Level: -12 dB
• AF Output Impedance: 600 Ohm
• Squelch: Pilot Tone & Noise Mute
• Operation Voltage: 12-18 VDC, 500 mA
• Output Connector: XRL Balanced/ 6,3 mm Unbalanced
• Dimension: 211 x 152 x 40 mm (LxWxH)

Download

Ingen download tilgængelig
