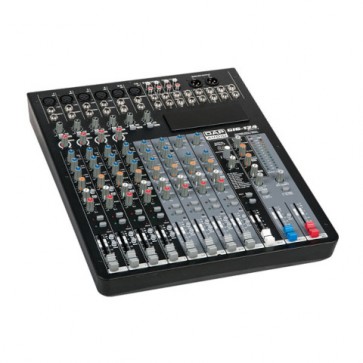

DAP GIG-124CFX- 12 kanals mixer m DSP

Varenr: D2285
• 12 kanals PA-mixer
• 12 indbygget DSP og digitale effekter
• High-, mid-, low-, balancejust. på hver kanal
• 4 stereo & 6 balancerede mono m. phantom inputs
• 1 send/return
• Output VU meter
• USB for MAC/PC tilslutning
• Mål 416 x 340 x 93m (BxDxH) - Vægt 3,96 kg

Læs mere om DAP-Audio
3.295,00 DKK



Inkl. moms
  • På lagerPå lager

Kan ses i vores butik

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• 12 kanals PA-mixer
• 12 indbygget DSP og digitale effekter
• High-, mid-, low-, balancejust. på hver kanal
• 4 stereo & 6 balancerede mono m. phantom inputs
• 1 send/return
• Output VU meter
• USB for MAC/PC tilslutning
• Mål 416 x 340 x 93m (BxDxH) - Vægt 3,96 kg



Leverandør beskrivelse:
• Ultra-low noise discrete MIC Preamps with +48V Phantom Power
• Compressors control on first MIC channels
• 3-band EQ and Peak LEDs on each MIC channels.
2-band EQ and Peak LEDs on Stereo channels.
• Built-in 24-bit DSP effect with 100 presets.
• Optional expandable with USB or Bluetooth player


The GIG-124 CFX Mixing Console is packed with features that cannot be found in other consoles of it's size: 6 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3-band equalizer for HI, MID and LOW controls, as well as 2 auxiliary control, build-in 24-bit DSP effect with 100 presets, highly accurate 12-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs.

Specifikationer

Detaljer

• Mono Channels
• Mic Input: XLR balanced
• Line input: 1/4- TRS balanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -35dBu ~ +15dBu
• LOW Cut: 75Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Stereo Channels
• Mic Input: XLR balanced
• Line input: 1/4- TRS/RCA unbalanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -20dBu ~ +20dBu
• LOW Cut: 75Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Channels EQ
• High: +/- 15dB @ 12kHz
• Mid: +/- 15dB @ 2,5kHz
• Low: +/- 15dB @ 80Hz
• Impedances
• Microphone input: 1,8K Ohm
• Other inputs: >10K Ohm
• Tape output: 1K Ohm
• All other outputs: 120 Ohm
• Power supply: AC 100- 240V 50Hz/60Hz
• Power consumption: 40 Watt
• Measurements: 416 x 340 x 93mm
• Weight: 3,96 Kg
