• Built-in DSP & Dynamics
• Microphone, Instrument & Line input
• Mix possibility with link output
• 2 Sound presets

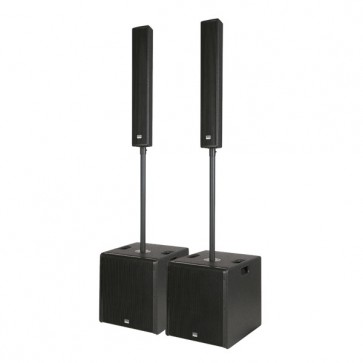

The DAP Live mini is an active plug and play column speaker system for speech, Dj and small live performances. The set contains 2 active subs, 2 column speakers, 2 distance tubes and 2 speakon cables. The 2 passive columns are equipped with 8 pcs 3,5" speakers. Because of the coupling of 8 speakers in a compact array housing this system gives an optimal sound coverage with a direct and clear sound. Another advantage of the Live mini is its weight and size. With only 20Kg on the active sub and 7 kg on the column this set can be transported and set up by one person. The active sub has a built-in DSP with 2 sound presets and a limiter network that protects the complete system. The sub also has an integrated mini mixer which allow you to mix a microphone with an instrument or line signal.
• Microphone, Instrument & Line input
• Mix possibility with link output
• 2 Sound presets
The DAP Live mini is an active plug and play column speaker system for speech, Dj and small live performances. The set contains 2 active subs, 2 column speakers, 2 distance tubes and 2 speakon cables. The 2 passive columns are equipped with 8 pcs 3,5" speakers. Because of the coupling of 8 speakers in a compact array housing this system gives an optimal sound coverage with a direct and clear sound. Another advantage of the Live mini is its weight and size. With only 20Kg on the active sub and 7 kg on the column this set can be transported and set up by one person. The active sub has a built-in DSP with 2 sound presets and a limiter network that protects the complete system. The sub also has an integrated mini mixer which allow you to mix a microphone with an instrument or line signal.
Specifikationer
Detaljer
• Subwoofer:
• System: 1x 12" compact vented active PA subwoofer
• Amplifier Output Low: 350 Watt RMS @ 4 Ohm
• Amplifier Output High: 350 Watt RMS @ 4 Ohm
• Freq. Response (-6 dB): 40 - 500 Hz
• Sensitivity 1W @1 m: 96dB
• Input 1: (MIC/Line) Combo XLR/Jack
• Input 2: (Instrument/Line) Combo XLR/Jack, RCA
• Mix Output: Male XLR balanced
• Speaker output: Speakon
• Control: Volume Control
• Power ON
• 2 Sound presets
• Electric Protection:
• Thermal/Convection-Fan/Overload/Digital
• Lim./Compressor
• Adapter: 35mm metal pole-mount
• Enclosure: 15mm Plywood scratch resistant paint,
• metal grill with foam, rubber feet
• Cooling: Temperature controlled fan
• Dimensions (HxWxD): 430 x 450 x 480mm
• Weight: 20,5Kg
• Input voltage: 230V, 50/60Hz
• Power consumption: 600W
• Satellites:
• System: 8x 3.5" passive column satellite speaker
• Power Handling: 240W
• Nominal impedance: 4 Ohm
• Freq. Response (-6 dB): 140 - 20,000 Hz
• Sensitivity 1W @1 m: 97dB
• Coverage: 80° Horizontal
• Input: Speakon
• Adapter: 35mm metal pole-mount
• Enclosure: 15mm Plywood scratch resistant paint,
• metal grill with foam
• Dimensions (HxWxD): 130 x 760 x 103mm
• Weight: 6,95Kg
• Included accessories: 2x Distance tube, 2x 3m
• Speakercable
• System: 1x 12" compact vented active PA subwoofer
• Amplifier Output Low: 350 Watt RMS @ 4 Ohm
• Amplifier Output High: 350 Watt RMS @ 4 Ohm
• Freq. Response (-6 dB): 40 - 500 Hz
• Sensitivity 1W @1 m: 96dB
• Input 1: (MIC/Line) Combo XLR/Jack
• Input 2: (Instrument/Line) Combo XLR/Jack, RCA
• Mix Output: Male XLR balanced
• Speaker output: Speakon
• Control: Volume Control
• Power ON
• 2 Sound presets
• Electric Protection:
• Thermal/Convection-Fan/Overload/Digital
• Lim./Compressor
• Adapter: 35mm metal pole-mount
• Enclosure: 15mm Plywood scratch resistant paint,
• metal grill with foam, rubber feet
• Cooling: Temperature controlled fan
• Dimensions (HxWxD): 430 x 450 x 480mm
• Weight: 20,5Kg
• Input voltage: 230V, 50/60Hz
• Power consumption: 600W
• Satellites:
• System: 8x 3.5" passive column satellite speaker
• Power Handling: 240W
• Nominal impedance: 4 Ohm
• Freq. Response (-6 dB): 140 - 20,000 Hz
• Sensitivity 1W @1 m: 97dB
• Coverage: 80° Horizontal
• Input: Speakon
• Adapter: 35mm metal pole-mount
• Enclosure: 15mm Plywood scratch resistant paint,
• metal grill with foam
• Dimensions (HxWxD): 130 x 760 x 103mm
• Weight: 6,95Kg
• Included accessories: 2x Distance tube, 2x 3m
• Speakercable
