Beskrivelse
Detaljer

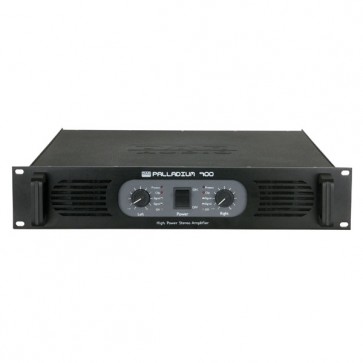

• DAP Audio professionel 2U/19" forstærker
• 2 x 525W/4 ohm - 2 x 325W/8ohm
• Brokoblet 1 x 1050W/8 ohm
• Dobbelt blæserkøling - clip limiter
• Mål: 48 x 40 x 9cm (BxDxH) - Vægt 15 kg
Robust og gennemprøvet forstærker, der kan tåle at blive brugt.
Leverandør beskrivelse:
• Affordable and reliable power
• Over 12 years of proven quality
• Advanced protection circuits
• Natural sound quality
The Palladium amplifier range has proven itself for many years. They give real and save power to your speakers. With already more than 12 years of production and experience the palladium is equipped with the best amplification and protection circuits. They are available in the original silver vintage look or black housing. If you need reliability, real and safe power in an affordable price range the Palladium amplifier range is what you need.
• 2 x 525W/4 ohm - 2 x 325W/8ohm
• Brokoblet 1 x 1050W/8 ohm
• Dobbelt blæserkøling - clip limiter
• Mål: 48 x 40 x 9cm (BxDxH) - Vægt 15 kg
Robust og gennemprøvet forstærker, der kan tåle at blive brugt.
Leverandør beskrivelse:
• Affordable and reliable power
• Over 12 years of proven quality
• Advanced protection circuits
• Natural sound quality
The Palladium amplifier range has proven itself for many years. They give real and save power to your speakers. With already more than 12 years of production and experience the palladium is equipped with the best amplification and protection circuits. They are available in the original silver vintage look or black housing. If you need reliability, real and safe power in an affordable price range the Palladium amplifier range is what you need.
Specifikationer
Detaljer
• Output Power, 1000 Hz, THD+N at 1%,
• Both Channels Driven:
• Stereo mode: 8 Ohm: 2x 350 Watt RMS
• 4 Ohm: 2x 525 Watt RMS
• 2 Ohm: Not Allowed
• Bridge mode: 8 Ohm: 1050 Watt RMS
• 4 Ohm: Not Allowed
• Frequency Response: 20 - 45,000 Hz, -1 dB
• THD+N: < 0.05%
• Intermodulation Distortion: < 0.01%
• Damping Factor at 8 Ohm: > 250
• Slew Rate: > 40 V/µS
• Input CMRR: > 60 dB
• Crosstalk 20 - 20,000 Hz: > 60 dB
• Signal to Noise Ratio: > 105 dB A-weighted
• Input Sensitivity: 1 V~, +2.2 dBu
• Max. Input Voltage: +22 dBu
• Input Impedance: 20 kOhm Balanced
• 10 kOhm Unbalanced
• Protection: Clip Limiter (Fixed)
• Short Circuit
• Input Overload
• Output Overload
• DC Voltage
• High Temperature
• Output Modes (Select.): Stereo / Parallel / Bridge
• Cooling: Dual Speed Fan
• Airflow: Front to Back
• Input / Link Connector: XLR / Jack
• Output Connector: 2x Speakon,
• 2 Pair Bindings Posts
• Groundlift Switch: Yes
• Dimensions (LxWxH): 483 x 430 x 89 mm
• Net Weight: 15,32 kg
• Power Supply: 200 - 240 V~, 50 Hz
• Main Fuse: 10AT, 5 x 20 mm
• Power Consump. (2 x 4 Ohm): 1650 Watt
• Both Channels Driven:
• Stereo mode: 8 Ohm: 2x 350 Watt RMS
• 4 Ohm: 2x 525 Watt RMS
• 2 Ohm: Not Allowed
• Bridge mode: 8 Ohm: 1050 Watt RMS
• 4 Ohm: Not Allowed
• Frequency Response: 20 - 45,000 Hz, -1 dB
• THD+N: < 0.05%
• Intermodulation Distortion: < 0.01%
• Damping Factor at 8 Ohm: > 250
• Slew Rate: > 40 V/µS
• Input CMRR: > 60 dB
• Crosstalk 20 - 20,000 Hz: > 60 dB
• Signal to Noise Ratio: > 105 dB A-weighted
• Input Sensitivity: 1 V~, +2.2 dBu
• Max. Input Voltage: +22 dBu
• Input Impedance: 20 kOhm Balanced
• 10 kOhm Unbalanced
• Protection: Clip Limiter (Fixed)
• Short Circuit
• Input Overload
• Output Overload
• DC Voltage
• High Temperature
• Output Modes (Select.): Stereo / Parallel / Bridge
• Cooling: Dual Speed Fan
• Airflow: Front to Back
• Input / Link Connector: XLR / Jack
• Output Connector: 2x Speakon,
• 2 Pair Bindings Posts
• Groundlift Switch: Yes
• Dimensions (LxWxH): 483 x 430 x 89 mm
• Net Weight: 15,32 kg
• Power Supply: 200 - 240 V~, 50 Hz
• Main Fuse: 10AT, 5 x 20 mm
• Power Consump. (2 x 4 Ohm): 1650 Watt
