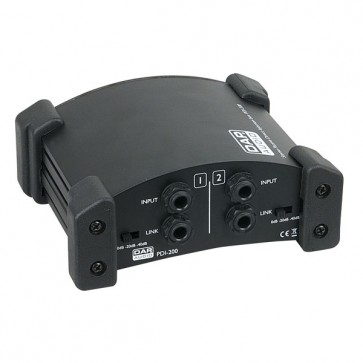

DAP PDI-200 Passive stereo direct

Varenr: D1944
• Road proof housing with rubber feet
• Low distortion
• No power supply needed
• 0, 20 ,40db attenuation settings
The PDI-200 is a two-channel passive direct injection box. It converts your HI-Z signal into a LO-Z signal. You do not need a battery or phantom power for this direct box. It has very wide applications, great for keyboard signals, acoustic & electric guitar signals and any other instrument signals that need to be plugged into a snake on stage.

Input: 6,3mm Jack Link: 6,3mm Jack Output: XLR Male Input Impedance: 50,000 Ohms Output Impedance: 500 Ohms Frequency Response: 30 - 50,000 Hz (1 dB) THD at 400 Hz: 0.003% Fixed Natural Attenuation: 20 dB Attenuation Settings: 0, 20, 40 dB Crosstalk at 1 kHz at 0 dBu: -96 dBu Dimensions: 140 x 110 x 55 mm Weight: 1.1 kg
Læs mere om DAP-Audio
359,38 DKK



Inkl. moms
  • Ring for leveringstid

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• Road proof housing with rubber feet
• Low distortion
• No power supply needed
• 0, 20 ,40db attenuation settings
The PDI-200 is a two-channel passive direct injection box. It converts your HI-Z signal into a LO-Z signal. You do not need a battery or phantom power for this direct box. It has very wide applications, great for keyboard signals, acoustic & electric guitar signals and any other instrument signals that need to be plugged into a snake on stage.

Input: 6,3mm Jack Link: 6,3mm Jack Output: XLR Male Input Impedance: 50,000 Ohms Output Impedance: 500 Ohms Frequency Response: 30 - 50,000 Hz (1 dB) THD at 400 Hz: 0.003% Fixed Natural Attenuation: 20 dB Attenuation Settings: 0, 20, 40 dB Crosstalk at 1 kHz at 0 dBu: -96 dBu Dimensions: 140 x 110 x 55 mm Weight: 1.1 kg

Leverandør beskrivelse:
• Road proof housing with rubber feet
• Low distortion
• No power supply needed
• 0, 20 ,40db attenuation settings
The PDI-200 is a two-channel passive direct injection box. It converts your HI-Z signal into a LO-Z signal. You do not need a battery or phantom power for this direct box. It has very wide applications, great for keyboard signals, acoustic & electric guitar signals and any other instrument signals that need to be plugged into a snake on stage.

Specifikationer

Detaljer

• Input: 6,3mm Jack
• Link: 6,3mm Jack
• Output: XLR Male
• Input Impedance: 50,000 Ohms
• Output Impedance: 500 Ohms
• Frequency Response: 30 - 50,000 Hz (1 dB)
• THD at 400 Hz: 0.003%
• Fixed Natural Attenuation: 20 dB
• Attenuation Settings: 0, 20, 40 dB
• Crosstalk at 1 kHz at 0 dBu: -96 dBu
• Dimensions: 140 x 110 x 55 mm
• Weight: 1.1 kg
