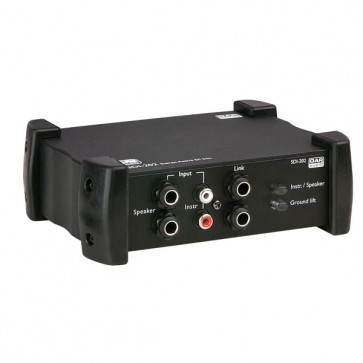

DAP SDI-202 Stereo aktiv DI box

Varenr: D1947
• Jack & RCA inputs
• 9V power supply ore 18-48V phantom power
• Ground lift
• Instrument & speaker inputs
The SDI-202 is a multi-purpose unit and can be powered by an 9V battery or mixer with phantom power. The instrument mode has a high impedance which makes it possible to connect an instrument with high output impedances, like an electric guitar or acoustical guitars with a piezo-ceramic pick-up element. But this mode also allows you to connect electric devices with an unbalanced output like keyboards or Dj mixers without balanced outputs. The RCA input is ideal for these kind of setups. It also has a speaker mode which allows you to connect guitar amplifiers direct with the SDI-202. The SDI-202 balanced outputs will give a clean signal at a low level which makes long runs of cable possible. The SDI-202 will provide an even frequency response on any input signal connected with the benefit of cancellation of interference, hums and buzzes. The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.

Frequency Response: 10Hz-40KHz Noise Level: < -105db Distortion (THD): < 0.005% at 1khz, 0dbu output Inputs: 6,3 TRS Jack, RCA Link out: 6,3 TRS Jack Output: XLR Male balanced Power supply: 9V Battery or 18 - 48V DC (phantom) Input Impedance instrument: 1Meg Input Impedance speaker: 47 kOhm Max input level instrument: +9dBu / 2.18V Max input level speaker: +39dBu / 69V Dimensions: 53 x 158 x 135 mm (HxWxD) Weight: 0,7 Kg
Læs mere om DAP-Audio
855,00 DKK



Inkl. moms
  • Ring for leveringstid

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• Jack & RCA inputs
• 9V power supply ore 18-48V phantom power
• Ground lift
• Instrument & speaker inputs
The SDI-202 is a multi-purpose unit and can be powered by an 9V battery or mixer with phantom power. The instrument mode has a high impedance which makes it possible to connect an instrument with high output impedances, like an electric guitar or acoustical guitars with a piezo-ceramic pick-up element. But this mode also allows you to connect electric devices with an unbalanced output like keyboards or Dj mixers without balanced outputs. The RCA input is ideal for these kind of setups. It also has a speaker mode which allows you to connect guitar amplifiers direct with the SDI-202. The SDI-202 balanced outputs will give a clean signal at a low level which makes long runs of cable possible. The SDI-202 will provide an even frequency response on any input signal connected with the benefit of cancellation of interference, hums and buzzes. The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.

Frequency Response: 10Hz-40KHz Noise Level: < -105db Distortion (THD): < 0.005% at 1khz, 0dbu output Inputs: 6,3 TRS Jack, RCA Link out: 6,3 TRS Jack Output: XLR Male balanced Power supply: 9V Battery or 18 - 48V DC (phantom) Input Impedance instrument: 1Meg Input Impedance speaker: 47 kOhm Max input level instrument: +9dBu / 2.18V Max input level speaker: +39dBu / 69V Dimensions: 53 x 158 x 135 mm (HxWxD) Weight: 0,7 Kg

Leverandør beskrivelse:
• Jack & RCA inputs
• 9V power supply ore 18-48V phantom power
• Ground lift
• Instrument & speaker inputs
The SDI-202 is a multi-purpose unit and can be powered by an 9V battery or mixer with phantom power. The instrument mode has a high impedance which makes it possible to connect an instrument with high output impedances, like an electric guitar or acoustical guitars with a piezo-ceramic pick-up element. But this mode also allows you to connect electric devices with an unbalanced output like keyboards or Dj mixers without balanced outputs. The RCA input is ideal for these kind of setups. It also has a speaker mode which allows you to connect guitar amplifiers direct with the SDI-202. The SDI-202 balanced outputs will give a clean signal at a low level which makes long runs of cable possible. The SDI-202 will provide an even frequency response on any input signal connected with the benefit of cancellation of interference, hums and buzzes. The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.

Specifikationer

Detaljer

• Frequency Response: 10Hz-40KHz
• Noise Level: < -105db
• Distortion (THD): < 0.005% at 1khz, 0dbu output
• Inputs: 6,3 TRS Jack, RCA
• Link out: 6,3 TRS Jack
• Output: XLR Male balanced
• Power supply: 9V Battery or 18 - 48V DC (phantom)
• Input Impedance instrument: 1Meg
• Input Impedance speaker: 47 kOhm
• Max input level instrument: +9dBu / 2.18V
• Max input level speaker: +39dBu / 69V
• Dimensions: 53 x 158 x 135 mm (HxWxD)
• Weight: 0,7 Kg

Download

D1947_MANUAL_GB_V1.pdf
