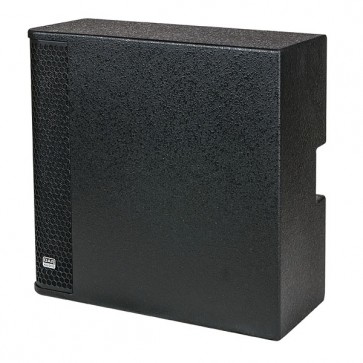

DAP Xi-28B - 2x8" installationssubbas 800W sort

Varenr: D3426
• Impedans 4 ohm
• Vedvarende belastning: 400 watt
• Musik belastning: 800 watt
• Peak belastning: 1600 watt
• Frekvensgang (-3dB): 45-110 Hz
• Anbefalet delefrekvens: 100 Hz
• Ikke indbygget delefilter
• Følsomhed: 100 dB
• Teoretisk peak SPL: 132 dB
• Flyvepunkter til 8mm øjebolte
• Mål: 520 x 240 x 540 mm - Vægt: 18 kg


XI serien er en utrolig kraftig installations- højttaler, der kan bruges med og uden subbas.

Yderst velegnede til lavloftede lokaler, hvor der ønskes en jævn dækning af lyd i et lydniveau, hvor mindre installations højttalere må give op. F.eks. Barer, cafe'er, pub's, m.v.
Læs mere om DAP-Audio
2.895,00 DKK



Inkl. moms
  • Udgået

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• Impedans 4 ohm
• Vedvarende belastning: 400 watt
• Musik belastning: 800 watt
• Peak belastning: 1600 watt
• Frekvensgang (-3dB): 45-110 Hz
• Anbefalet delefrekvens: 100 Hz
• Ikke indbygget delefilter
• Følsomhed: 100 dB
• Teoretisk peak SPL: 132 dB
• Flyvepunkter til 8mm øjebolte
• Mål: 520 x 240 x 540 mm - Vægt: 18 kg


XI serien er en utrolig kraftig installations- højttaler, der kan bruges med og uden subbas.

Yderst velegnede til lavloftede lokaler, hvor der ønskes en jævn dækning af lyd i et lydniveau, hvor mindre installations højttalere må give op. F.eks. Barer, cafe'er, pub's, m.v.

Leverandør beskrivelse:
• Recessed Speakon chassis
• Smooth frequency response.
• Detachable metal grill
• Rotatable logo
• Ultra compact design
The Xi-28B is a compact lightweight subwoofer designed to combine with the Xi-8 or Xi-10 top cabinets. Together with the optional Xi-28B bracket it can be installed flat against the wall which makes it very suitable for situations were space is limited. The two 8" speakers and the sophisticated bass reflex horn housing offers a very powerful precise bass sound reproduction with high sound pressure levels. The XI Series is designed for installation use. The Top cabinets have special mountings at the backside which fits the DAP D8429 Compact speaker wall bracket but also the K&M 24470/80 bracket. To create a nice design it has no inner adapter and only one grip on the backside with a recessed Speakon chassis. It is finished with scratch resistant paint and a fast and easy detachable metal grill. The horn (Xi-8/10) can be rotated if you like to use the cabinet vertical. The high power Subwoofer has a ultra-compact design so it will fit in every location. A special designed wall bracket makes it also possible to mount the subwoofer to a wall. The Xi-series has a HIFI sound quality and can handle high pressure levels.

Specifikationer

Detaljer

• Nominal Impedance: 4 Ohm
• Continuous power: 400 Watt
• Program power: 800 Watt
• Peak power: 1600 Watt
• Freq. Response (processed): 45 - 110 Hz
• Freq. Range (flat): 45 - 4000 Hz
• Internal Crossover: None
• Recommended High Pass Filter: 45 Hz, BW-24
• Recommended Low Pass Filter: 110 Hz, LR-24
• Sensitivity (Half Space): 100 dB/W /m
• Peak SPL at 1 m (Theoretical): 132 dB
• Nominal Dispersion (HxV): 360° x 180°
• Dimensions(W x H x D): 520 x 240 x 540 mm
• Net Weight: 18Kg
