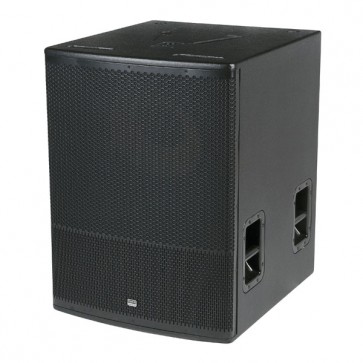

DAP XT-18B MKII - 18" subbas 1200w indbyg. X-over

• Prof. 18" subbass med 4" svingspole
• Belastning: 600W RMS/1200W musik/2400W peak
• 38Hz-160Hz (-10dB) - følsomhed 104dB
• Indb. 160Hz delefilter til topkasser - SPL 138dB
• Mål 615x600x760cm (BxDxH) - Vægt 43,2 kg
Kraftig bundkasse med finish helt i top. Passer perfekt som bund til XT-serien, og kan også bruges i den store hjemmebiograf eller bandet.

Kan bruges uden elektronisk delefilter med det indbyggede passive delefilter.

Det kompakte design sammen med den direkte og naturlige lyd gør XT serien til en meget attraktiv serie. Kvaliteten fås næppe bedre i dette prisleje.


• Cross-over bypass switch
• High pass filtered output with phase switch
• Only one amplifier needed for a complete set-up
with 4 subs and 2 tops
• Long excursion subwoofer with 4" Voice coil
18 inch subwoofer with a 4" voice coil and a long cone excursion for minimal distortion at full power. High efficiency and high power handling capacity. It has an optimal Q-load for a very smooth and deep frequency response. The cabinet is finished with scratch resistant black paint. The DAP X-series is a successful speaker range since 2006. They have proven their reliability, sound quality and high power handling for many years now. DAP audio has upgraded the looks with the XT series, the metal grill made it more road-proof and more stylish. Now DAP audio again improved this range by using a better scratch resistant paint and reducing the weight of the complete range. Also the XT MKII is better protected against overload and gives the sound more definition and less distortion in high frequencies when playing on max power.

Nominal Impedance: 8 Ohm Continuous power: 600 Watt Program power: 1200 Watt Peak power: 2400 Watt Freq. Response (-3 dB): 38 - 160 Hz Freq. Range (-10 dB): 31 - 200 Hz Recommended High Pass Filter: 32 Hz, BW-24 Crossover Frequency: 160 Hz, 12 dB/Oct Crossover Frequency High out: 160 Hz, 6 dB/Oct Sensitivity (Half Space): 104 dB / W / m Peak SPL at 1 m (Theoretical): 137,8 dB Nominal Dispersion (H x V): 360° x 180° Pole-mount: 35mm + M20 Thread Dimensions : 615 x 600 x 760 mm Weight: 43,2 kg

Leverandør beskrivelse:
• Cross-over bypass switch
• High pass filtered output with phase switch
• Only one amplifier needed for a complete set-up
with 4 subs and 2 tops
• Long excursion subwoofer with 4" Voice coil
18 inch subwoofer with a 4" voice coil and a long cone excursion for minimal distortion at full power. High efficiency and high power handling capacity. It has an optimal Q-load for a very smooth and deep frequency response. The cabinet is finished with scratch resistant black paint. The DAP X-series is a successful speaker range since 2006. They have proven their reliability, sound quality and high power handling for many years now. DAP audio has upgraded the looks with the XT series, the metal grill made it more road-proof and more stylish. Now DAP audio again improved this range by using a better scratch resistant paint and reducing the weight of the complete range. Also the XT MKII is better protected against overload and gives the sound more definition and less distortion in high frequencies when playing on max power.
