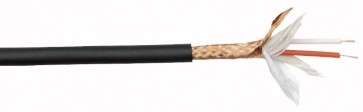

DIG-110 AES-EBU 110 Ohm Digital DMX kabel 100 mtr sort

• Conductor drains Ø mm: OFC 18 x 0,10
• Conductor insulation: FPE red+white
• Conductor insulation: 1,9 (Ø in mm)
• Filler material: paper + cotton yarn
• 1st shield: OFC braided 128 x 0,12
• 2nd shield: -
• Outer isolation: PVC black+blue
• Outer isolation Ø in mm: 6
• Conductor resistance: 130 Ohm/Km
• Shield resistance: 12.5 Ohm/Km
• Capacity Inner conductor: 35 pF/m
• Cap. Inner conduct. Shield/Inner conduct.: 52 pF/m
• Working temperature: -20~60 °C (min. / max.)
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
