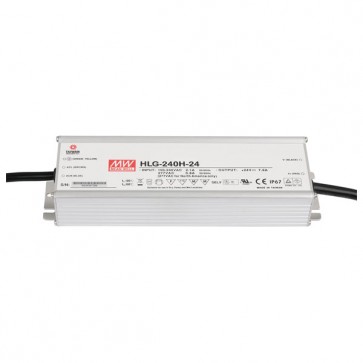

LED strømforsyning 24V DC 240W IP67

Varenr: A9900385
• Strømforsyning til LED bånd, slanger, moduler,mv
• MEAN WELL strømforsyning
• Output ved 24V DC: 240 watt/10A
• Input volt: 90 ~ 305 VAC
• Current rated: 10 A
• IP rating: IP67 - Beskyttelsesklasse II
• Dimensions: 244x68x38.8 mm - Vægt: 1.3 Kg
• Operating temperature: -40 - +80°C
• Power factor: 0.92
Læs mere om Artecta
945,00 DKK



Inkl. moms
  • På lagerPå lager

Kan ses i vores butik

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• Strømforsyning til LED bånd, slanger, moduler,mv
• MEAN WELL strømforsyning
• Output ved 24V DC: 240 watt/10A
• Input volt: 90 ~ 305 VAC
• Current rated: 10 A
• IP rating: IP67 - Beskyttelsesklasse II
• Dimensions: 244x68x38.8 mm - Vægt: 1.3 Kg
• Operating temperature: -40 - +80°C
• Power factor: 0.92

Leverandør beskrivelse:
High performance IP67 24 V LED power supplies with built-in active PFC-function (Power Factor Correction). The HLG-power supplies meet the harmonic current limitation per EN61000-3-2 Class-C, also fulfill PF>0.9 if loading over 50-60% and possess 4KV surge immunity ability complying with the requierments of street lighting. With up-to date LLC and synchronize rectify technology, they posses up to 94% of high efficiency, so they can be cooled by free air convection from -30°C to +70° ambient temp. and meet the requirements of outdoor installation. This high efficiency power supplies offer system designers great flexibility of designing luminairs with energy saving and brightness reduction alternative. The HLG-serie is very suitable for LED garden- & street-lighting,  LED spotlights, outdoor electric display and LED decorative lighting and also good solutions for general applications at outdoor environment with high dust and moisture.

Specifikationer

Detaljer

• • Input voltage: 90 ~ 305 VAC
• • Power consumption: 240 W
• • Current rated: 10 A
• • Output voltage: 24 VDC
• • Power factor: 0.92
• • Dimensions: 244x68x38.8 mm
• • Product weight: 1.3 Kg
• • Operating temperature: -40 - +70°C
• • IP rating: IP67
• • Protection class: II
