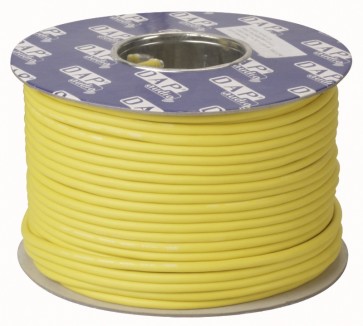

MC-216B Line/mikrofon kabel gul - 100 mtr.

Varenr: D9431Y
• Conductor drains Ø mm: OFC 28 x 0,10
• Conductor insulation: PE red+blue
• Conductor insulation Ø in mm: 1,5
• Filler material: paper + cotton yarn
• 1st shield: OFC twisted 83 x 0,12
• 2nd shield: -
• Outer isolation: PVC black, blue, red, yellow,
• green
• Outer isolation Ø in mm: 6
• Conductor resistance: 80 Ohm/Km
• Shield resistance: 25 Ohm/Km
• Capacity Inner conductor: 60 pF/m
• Cap. Inner conduct. Shield/Inner conduct.: 78 pF/m
• Working temperature: -20~60 °C (min. / max.)
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
Læs mere om DAP-Audio
849,00 DKK



Inkl. moms
  • Ring for leveringstid

Video

Ingen video tilgængelig

Beskrivelse

Ingen beskrivelse tilgængelig

Specifikationer

Detaljer

• Conductor drains Ø mm: OFC 28 x 0,10
• Conductor insulation: PE red+blue
• Conductor insulation Ø in mm: 1,5
• Filler material: paper + cotton yarn
• 1st shield: OFC twisted 83 x 0,12
• 2nd shield: -
• Outer isolation: PVC black, blue, red, yellow,
• green
• Outer isolation Ø in mm: 6
• Conductor resistance: 80 Ohm/Km
• Shield resistance: 25 Ohm/Km
• Capacity Inner conductor: 60 pF/m
• Cap. Inner conduct. Shield/Inner conduct.: 78 pF/m
• Working temperature: -20~60 °C (min. / max.)
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
