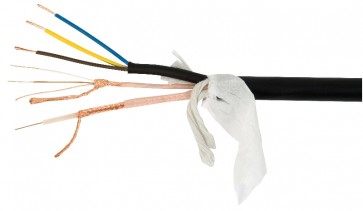

MediaFlex 113 multikabel med power, audio & coax

Varenr: D9472
• 3x1,5mm2 powerkabel
• 75 ohms coaxkabel
• Balanceret audiokabel
• Pris pr. meter
Læs mere om DMT
59,00 DKK



Inkl. moms
  • Ring for leveringstid

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• 3x1,5mm2 powerkabel
• 75 ohms coaxkabel
• Balanceret audiokabel
• Pris pr. meter

Specifikationer

Detaljer

• 250M on spool price p/m
• Video cable (1x)
• Conductor drains: OFC 0,58
• Conductor insulation: PE
• Conductor insulation: 3,71 mm
• Conductor resistance: 65 Ohm/Km
• Outer insulation: PVC 4,2 mm
• Impedance: 75 Ohm
• Attenuation: 10 MHz - 0,02270
• 90 MHz - 0,18650
• 100 MHz - 0,19060
• 220 MHz - 0,30640
• 470 MHz - 0,76580
• 770 MHz - 0,96420
• 1000 MHz - 1,6122
• Audio cable (1x)
• Conductor drains: OFC 20 x 0,10
• Conductor insulation: PE red + white
• Conductor insulation: 1,3 mm
• Filler material: paper
• 1st shield: twisted copper NF 96x0,10
• Outer isolation: Black
• Conductor resistance: 80 Ohm /Km
• Shield resistance: 30 Ohm /km
• Capacity inner conductor: 60 pF/m
• Cap. Inner conduct. Shield/Inner conduct.: 78 pF/m
• Impedance: 110 Ohm
• Power cable
• Conductor drains: 3 x 1,5 mm2
• Conductor insulation: PVC Black
• Working Temperature: -20 - +50 degree
• Voltage overflash: 30V
