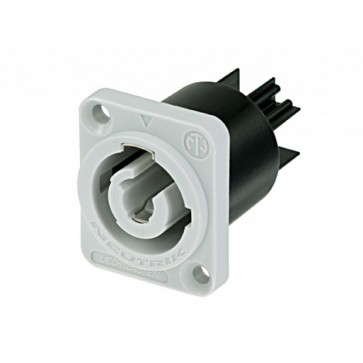

Neutrik NAC-3MPB Powercon chassis output stik

Varenr: 90531
• Neutrik Powercon - spænding ud af apparat
• Diameter er 23mm (til montage i 23mm hul)
Læs mere om Neutrik
39,00 DKK



Inkl. moms
  • På lagerPå lager

Kan ses i vores butik

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• Neutrik Powercon - spænding ud af apparat
• Diameter er 23mm (til montage i 23mm hul)

Leverandør beskrivelse:
The Neutrik Powercon is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The Powercon is a connector without breaking capacity, i.e. the Powercon should not be connected or disconnected under load or live! Always use MFD Mounting frame (905311) for safe mounting.

Specifikationer

Detaljer

• Title NAC3MPB
• Gender male
• Coding B-type for power outlet (color coding gray)

• Contact resistance ? 3 m? (inner)
• Number of electronical contacts 2 + PE
• Rated current per contact 20A max
• Rated maximum voltage 250 V ac
• Locking device Quick Lock
• Temperature range -30 °C to +80 °C

Download

PowerCon[2].pdf
