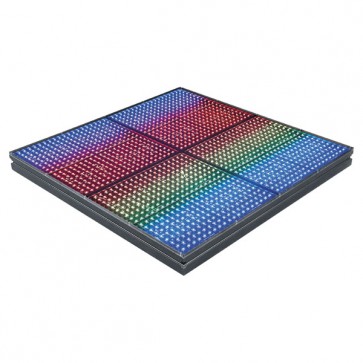

Pixelfloor Klingnet P25 LED dansegulv

Varenr: 42280
• Størrelse: 1000x1000x110mm, vægt 40 kg
• Bærende konstruktion: Aluminium
• Pixel afstand: 25 mm, 1600 pixels ialt
• Refresh rate: 2000 Hz
• Interface: Cat5, Ethernet
• Protokol: Klign-Net (Arkaos, VisionExpress)
• IP40
• Leveres med: 2 stk beslag + strømkabel
Læs mere om DMT
37.428,00 DKK



Inkl. moms
  • Kontakt os for levering

Video

Beskrivelse

Detaljer

• Størrelse: 1000x1000x110mm, vægt 40 kg
• Bærende konstruktion: Aluminium
• Pixel afstand: 25 mm, 1600 pixels ialt
• Refresh rate: 2000 Hz
• Interface: Cat5, Ethernet
• Protokol: Klign-Net (Arkaos, VisionExpress)
• IP40
• Leveres med: 2 stk beslag + strømkabel

Leverandør beskrivelse:
• Plug & Play with Klingnet protocol
• Quick setup due to deck brackets
• Liquid resistant CAT5 connections
• Bright colors
• Robust housing with max. load of 750 Kg
The Pixelfloor P25 is an one square meter LED tile working on the Klingnet-protocol. This makes it simple to integrate these dance floors in a setup with strips and batterns. Klingnet allows you to display visuals across all fixtures in the right proportions, regardless of their position. The Pixelfloor P25 has a 25mm pixelpitch and a wide viewing angle of 120 degrees. The power and data connections are liquid resistant and made for daisy chain setup. Coupling the floors is very easy with 2 special connection brackets which are included. By introducing the DMT Pixelstrip Pixelbatten and Pixelfloor DMT introduces a new and revolutionary concept which makes pixel control easy and affordable. DMT has been licensed to introduce the new protocol created by ArKaos Interactive Visual Technologies for controlling pixel driven fixtures: Kling-Net. Kling-Net is an unique, stable and very user friendly protocol. In the past it was necessary to use a lot of interfaces or expensive nodes, Kling-Net now only requires a simple CAT-5 cable. There is no need for any interface or converter anymore, just plug and play. That's Kling-Net, as simple as ABC, the new standard for pixel control. The DMT PixelStrip and PixelBatten are the first introduced fixtures of a wide range of pixel driven fixtures which combine easy operation and affordable cost. How does it work? Step 1: Install DMT VisionExpress on your laptop or Mac book this will already include the Kling-Net protocol. Step 2: Connect the Pixelstrips and Pixelbatten by a CAT-5 cable with your laptop or Mac book. Once you have connected the fixtures, the VisionExpress software immediately recognizes them. Step 3: Map the devices to the right position, a step which is very easy because you can actually drag and drop the fixtures in an onscreen interface into the right position. This only requires a few minutes and you're ready to go. DMT VisionExpress is developed by ArKaos and it includes all major functionalities to control your visuals. It also has DMX control which allows you to synchronize the visuals with your lightshow. Be part of the future and join the Kling-Net family today !

Specifikationer

Detaljer

• Pixel pitch: 25 mm
• Pixel quantity: 1600 pixels
• Control: Kling-Net
• LED Light source: RGB 5050SMD LED
• Luminance: 1000 nits
• Refresh rate: 2000 Hz
• Viewing angle: 120 degrees
• Connection: CAT-5
• IP-Rating: IP-40
• Housing: Aluminum
• Finish: Black powder coat
• Dimensions: 1000 x 1000 x 110mm
• Max Load: 500Kg
• Power supply: AC 100-230V / 50-60Hz
• Power consumption: 350W
• Weight: 40 Kg
• Max. Load: 750 Kg
• Accessories included: Power cable, 2x Connection
• brackets
• Optional accessories: CAT-5 cables, spare bracket
• 42281, spare powercable 42282

Download

Ingen download tilgængelig
