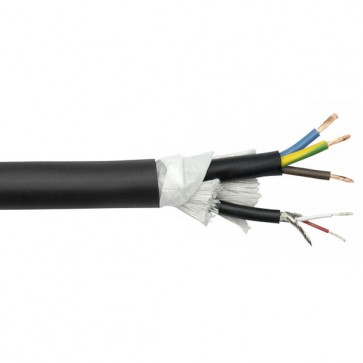

PMC-216 230V og signalkabel/DMX i ét pr. mtr. sort

• 500M on spool price p/m
• Conductor drains Ø mm: OFC 20 x 0,10 (NF) & 3 x
• 1,5 (power)
• Conductor insulation: PE red+white & PVC black
• (power)
• Conductor insulation Ø: 1,3 mm (NF) & 3,7 mm
• (power)
• Filler material: paper+cotton yarn
• 1st shield: twisted tinned copper NF 96 x 0,10
• 2nd shield: -
• Outer isolation: PVC 15mm, matte black
• Conductor resistance: 80 Ohm/Km
• Shield resistance: 30 Ohm/Km
• Capacity Inner conductor: 60 pF/m
• Cap. Inner conduct. Shield/Inner conduct.: 78 pF/m
• Working temperature: -20~60 °C (min./max.)
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
