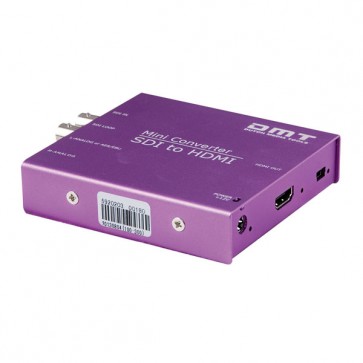

SDI to HDMI converter can realize the switching from 3G/HD/SD-SDI to HDMI. It supports 1 SDI input, 2 balanced analog audio input or 1 digital AES/EBU input, and 1 HDMI output, 1 SDI loop out. SDI to HDMI converter supports input and output resolution of 480i, 576i, 720p, 1080i and 1080p, also supports left and right analog sound channel input, digital AES/EBU input, SDI embedded audio input and mute function. It can adapt to multiple rates of SDI signal, including 3G-SDI, HD-SDI and SD-SDI. Easy operation.
Specifikationer
Detaljer
• Input:
• 1) 1 x SDI (SD/HD Compatible)
• 2) 2 x Analog audio
• Output:
• 1) 1 x SDI loop through
• 2) 1 x HDMI
• Output resolution: Same to input resolution. SDI
• support SD, HD, 3G.
• Control Interface: USB
• Size: 98mm x 92mm x 22mm
• Power supply: +12V 3.5 inch
• Temperature: 0°C~40°C
• Humidity: 10%~85%
• 1) 1 x SDI (SD/HD Compatible)
• 2) 2 x Analog audio
• Output:
• 1) 1 x SDI loop through
• 2) 1 x HDMI
• Output resolution: Same to input resolution. SDI
• support SD, HD, 3G.
• Control Interface: USB
• Size: 98mm x 92mm x 22mm
• Power supply: +12V 3.5 inch
• Temperature: 0°C~40°C
• Humidity: 10%~85%
