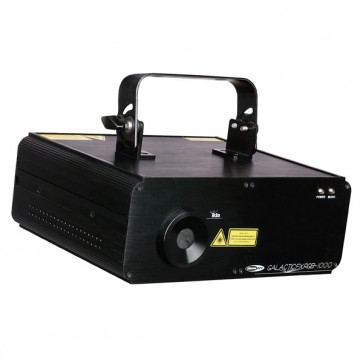

Showtec Galactic FX RGB-1000mW DMX ILDA 3D

Varenr: 51343
• 3D built-in laser shows
• DMX & ILDA control
• 20K Scanner pair
• 8 FX
The Galactic FX RGB-1000 is a 3D 1000mW RGB laser unit. It has beautiful clear colors created by 3 separate laser-diodes, Red, Green and Blue with TTL modulation. The FX RGB-1000 can be controlled by DMX and has many built-in figures and patterns, as even 3D built-in Laser shows. All built-in programs are easy selectable in the menu and also selectable by DMX. In DMX mode you have many possibilities to control the 80 built-in patterns like color, clipping, zooming, X-roll, Y-Roll, Z-Roll, X-move, Y-move and applying effects. You can create your own designs and shows with any kind of ILDA laser software. The RGB1000 is equipped with a 20K scanner pair for smooth projections with less flickering. Attention, the laser only works when the interlock connector is connected with a remote interlock (order code 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's a remote interlock is necessary for safety regulations.
Læs mere om Showtec
9.812,50 DKK



Inkl. moms
  • Udgået

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• 3D built-in laser shows
• DMX & ILDA control
• 20K Scanner pair
• 8 FX
The Galactic FX RGB-1000 is a 3D 1000mW RGB laser unit. It has beautiful clear colors created by 3 separate laser-diodes, Red, Green and Blue with TTL modulation. The FX RGB-1000 can be controlled by DMX and has many built-in figures and patterns, as even 3D built-in Laser shows. All built-in programs are easy selectable in the menu and also selectable by DMX. In DMX mode you have many possibilities to control the 80 built-in patterns like color, clipping, zooming, X-roll, Y-Roll, Z-Roll, X-move, Y-move and applying effects. You can create your own designs and shows with any kind of ILDA laser software. The RGB1000 is equipped with a 20K scanner pair for smooth projections with less flickering. Attention, the laser only works when the interlock connector is connected with a remote interlock (order code 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's a remote interlock is necessary for safety regulations.

Specifikationer

Detaljer

• Power Input: AC 100-240V, 50/60Hz
• Power Consumption: 50 Watt
• Laser Color: Red, Yellow, Green, Blue, Purple,
• Cyan, White
• Laser Power: 1000mW (200mW 638nm Red, 150mW 532nm
• Green, 650mW 450nm Blue)
• Laser Modulation: TTL
• Laser Class: 4
• Scan Speed: 20K
• Scan Angle: +/-20?
• Control Modes: Auto, Sound, Master/Slave, DMX,
• ILDA
• Control Display: 3 Digits LED
• DMX Channels: 19
• Data Connector: In/Out, XLR 3Pin & ILDA DB25
• Safety Features: Key switch, Interlock, Safety eye
• Laser Safety: EN/IEC 60825-1 Ed 2, 2007-03
• Dimensions: 290 x 240 x 110mm (excl. bracket)
• Weight: 4.2 kg
• Accessories: 2 Keys, Interlock connector
