• Red, Green, Yellow, Blue, Purple, Cyan and White colors
• 80 Patterns
• 600mW, 15K Scanning
• Different auto and sound shows integrated
• Free upgrade, IR remote control

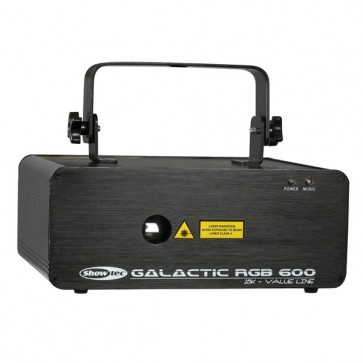

The Galactic RGB 600 is the top model of the Galactic Value Line series. It has a full color output of 600mw created by 3 separate laser-diodes, Red, Green and Blue. With these three laser-diodes you can create Red, Green, Yellow, Blue, Purple, Cyan and White colors by TTL modulation. The RGB-600 has 80 patterns and different auto or sound to light programs which are selectable by DMX. Besides the higher power and more possibilities than the other models of the Galactic Value Line, the RGB-600 is also equipped with a 15K Scanner pair. This makes it possible to have faster and bigger projections with less flickering. If you want to have total control of all 80 patterns, X-Y movements, scrolling, zooming, speed and rotation you can use the 17 Channel DMX mode. Attention, the laser only works when the interlock connector is connected with a remote interlock (ordercode 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's a remote interlock is necessary for safety regulations.
• 80 Patterns
• 600mW, 15K Scanning
• Different auto and sound shows integrated
• Free upgrade, IR remote control
The Galactic RGB 600 is the top model of the Galactic Value Line series. It has a full color output of 600mw created by 3 separate laser-diodes, Red, Green and Blue. With these three laser-diodes you can create Red, Green, Yellow, Blue, Purple, Cyan and White colors by TTL modulation. The RGB-600 has 80 patterns and different auto or sound to light programs which are selectable by DMX. Besides the higher power and more possibilities than the other models of the Galactic Value Line, the RGB-600 is also equipped with a 15K Scanner pair. This makes it possible to have faster and bigger projections with less flickering. If you want to have total control of all 80 patterns, X-Y movements, scrolling, zooming, speed and rotation you can use the 17 Channel DMX mode. Attention, the laser only works when the interlock connector is connected with a remote interlock (ordercode 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's a remote interlock is necessary for safety regulations.
Specifikationer
Detaljer
• Power Input: AC 100-240V, 50/60Hz
• Power Consumption: 20 Watt
• Laser Color: Red, Yellow, Green, Blue,
• Purple, Cyan, White
• Laser Power: 600mW (120mW 650nm Red,
• 180mW 532nm Green,
• 300mW 450nm Blue)
• Laser Modulation: TTL
• Laser Class: 4
• Scan Speed: 15K
• Scan Angle: +/-40?
• Control Modes: Auto, Sound, Master/Slave,
• DMX
• Control Display: 4 Digits LED
• DMX Channels: 17
• Data Connector: In/Out (XLR 3Pin)
• Safety Features: Key switch, Interlock,
• Safety eye
• Laser Safety: EN/IEC 60825-1 Ed 2,
• 2007-03
• Dimensions: 250 x 204 x 99 mm
• (excl. bracket)
• Weight: 2,8 kg
• Accessories: 2 Keys, Interlock test
• connector
• Power Consumption: 20 Watt
• Laser Color: Red, Yellow, Green, Blue,
• Purple, Cyan, White
• Laser Power: 600mW (120mW 650nm Red,
• 180mW 532nm Green,
• 300mW 450nm Blue)
• Laser Modulation: TTL
• Laser Class: 4
• Scan Speed: 15K
• Scan Angle: +/-40?
• Control Modes: Auto, Sound, Master/Slave,
• DMX
• Control Display: 4 Digits LED
• DMX Channels: 17
• Data Connector: In/Out (XLR 3Pin)
• Safety Features: Key switch, Interlock,
• Safety eye
• Laser Safety: EN/IEC 60825-1 Ed 2,
• 2007-03
• Dimensions: 250 x 204 x 99 mm
• (excl. bracket)
• Weight: 2,8 kg
• Accessories: 2 Keys, Interlock test
• connector
