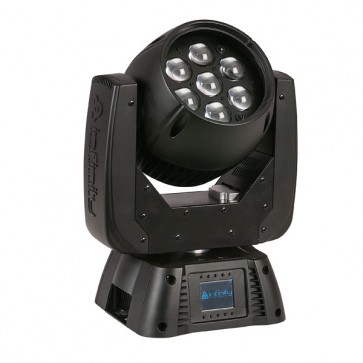

Showtec Infinity iW-720 140W LED RGBW moving wash

Varenr: 41521
• 7 stk.20W 4-in-1 highpower RGBW LED lysdioder: Rød, grøn, blå og coolwhite
• Output: Lux @ 2m: 31300 - 0-20Hz strobe
• Motoriseret zoom. Spredning: 7-50°
• LCD autoflip display med indbygget batteri
• DMX: Avanceret/normal: 29/14 kanaler
• Variabel dimmerkurve - 0-100% dimmer
• Mode: DMX, Auto og Master/slave
• 540 grader pan/270 grader tilt - 16 bit
• Mål 204x219x380mm (WxDxH)- vægt 8 kg- 240Wmax


Ultra hurtigt og kraftig LED moving wash med zoom. God til opgaver, hvor lyset skal projecteres langt

Med sine 7 stk. 4-in-1 LED dioder, der både har rød, grøn, blå og hvid, kan man lave endnu flere lyse farvenuancer end med traditionel RGB.

Se den i vores udstilling, hvis ikonet "på lager" vises på varen.

Læs mere om Infinity
8.745,00 DKK



Inkl. moms
  • Ring for leveringstid

Video

Beskrivelse

Detaljer

• 7 stk.20W 4-in-1 highpower RGBW LED lysdioder: Rød, grøn, blå og coolwhite
• Output: Lux @ 2m: 31300 - 0-20Hz strobe
• Motoriseret zoom. Spredning: 7-50°
• LCD autoflip display med indbygget batteri
• DMX: Avanceret/normal: 29/14 kanaler
• Variabel dimmerkurve - 0-100% dimmer
• Mode: DMX, Auto og Master/slave
• 540 grader pan/270 grader tilt - 16 bit
• Mål 204x219x380mm (WxDxH)- vægt 8 kg- 240Wmax


Ultra hurtigt og kraftig LED moving wash med zoom. God til opgaver, hvor lyset skal projecteres langt

Med sine 7 stk. 4-in-1 LED dioder, der både har rød, grøn, blå og hvid, kan man lave endnu flere lyse farvenuancer end med traditionel RGB.

Se den i vores udstilling, hvis ikonet "på lager" vises på varen.



Leverandør beskrivelse:
• Motorized Zoom
• 4 Section control
• Ultra-fast movements
• 1 Clamp rigging
• Battery powered menu
The Infinity® iW-720 is equipped with seven, 20W, quad color RGBW LEDs and offers seamless zoom from 7° to 50°. Another significant key feature is the segment control of the LEDs these are divided into 4 sections which can be controlled individually offering the user endless creative possibilities. High speed motors for pan and tilt movement are used for accurate and very fast movements. Multiple dimming curves can be selected by the GUI where both, halogen modes or quick dimming can be achieved. Dimming and strobe are microprocessor controlled, ensuring smooth 0-100% dimming as well high speed 0-20Hz strobe effects.

Specifikationer

Detaljer

• Output
• Lux @ 2m: 31300
• Beam Angle: 7-50°
• Light Source: 7x 20W RGBW 4-in-1 LED (LED Engin)
• Electrical
• Input Voltage: 100-240 VAC
• Power consumption: 240W max. at full output
• Control
• On-Board: Battery powered full color display
• including gravity sensor
• Battery lifetime: max 30 days (full charge)
• Mode: DMX, Auto & Master/Slave
• Control Protocol: DMX512
• Control Personality: Advanced 29ch /Basic 16ch,
• 14ch
• Wireless DMX: optional available
• Optical system
• Dimmer: 0-100%
• Dimmer curves: Linear, Square, I-Square, S curve
• Dimmer speed: Smooth, fast
• Color balance: Separate RGBW adjustment
• Strobe: 0-20Hz
• Zoom: Motorized
• Movement
• Pan: 540°
• Tilt: 270°
• Pan/Tilt resolution: 16 bit
• Special: Pan/ Tilt, change blackout,
• User-selectable Pan & Tilt ranges,
• 540°/360°/180°, Reverse Pan / Tilt movement
• Physical
• Color: Black
• Housing: Metal & Flame-retardant plastic
• Fixture Connection: XLR 3p Data in/out, Powercon
• in- & output
• Dimensions (WxDxH): 204 x 219 x 380 mm
• Weight: 8 kg
• Certification and Safety
• Certification: CE
• Max. ambient Temp.: 40°C

Download

41521_MANUAL_GB_V3.pdf
