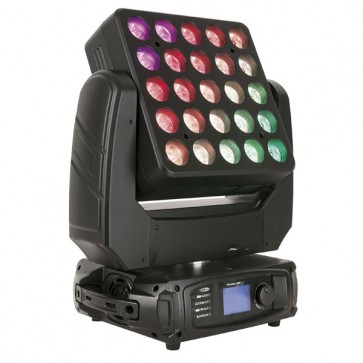

Showtec Phantom 300 LED Matrix Moving Head

Varenr: 40060
• 25x 10W RGBW LEDs
• DMX & Artnet
• Pixel control
• Continuous pan & tilt
The Showtec Phantom 300 LED Matrix, is a 5x5 matrix moving head with 25 pcs 10W RGBW LEDs and 15° optics. Even though it has a 5x5 matrix it is a compact fixture with a 270x270mm head and a 360x230mm base. It has a 12, 20 and a 120 channel personality to serve the basic users as well as the advanced users that like to have full pixel control. In all personalities preset colors, color programs, built-in animations, gobos and characters are selectable by DMX. Because of the 120 channel personality it is also equipped with Artnet. It has IFS Technology which helps the user to combine other IFS fixtures with similar functions to get synchronized. This makes it easy to program similar colors, programs, strobes, and speed.
Læs mere om Showtec

16.123,75 DKK Vejledende pris

11.245,00 DKK DLT salgspris



Inkl. moms
  • udgået - se 40062

Video

Beskrivelse

Detaljer

• 25x 10W RGBW LEDs
• DMX & Artnet
• Pixel control
• Continuous pan & tilt
The Showtec Phantom 300 LED Matrix, is a 5x5 matrix moving head with 25 pcs 10W RGBW LEDs and 15° optics. Even though it has a 5x5 matrix it is a compact fixture with a 270x270mm head and a 360x230mm base. It has a 12, 20 and a 120 channel personality to serve the basic users as well as the advanced users that like to have full pixel control. In all personalities preset colors, color programs, built-in animations, gobos and characters are selectable by DMX. Because of the 120 channel personality it is also equipped with Artnet. It has IFS Technology which helps the user to combine other IFS fixtures with similar functions to get synchronized. This makes it easy to program similar colors, programs, strobes, and speed.

Specifikationer

Detaljer

• Output:
• Lux @ 2m: 44950 lux
• Beam Angle: 15°
• Light Source: 25x10W RGBW 4-in-1
• Electrical:
• Input voltage: 100-240V / 50-60Hz (auto ranging)
• Power consumption: 700W at full output
• Control:
• On Board: Display including gravity sensor
• Mode: DMX, Auto, Sound, Master/Slave
• Control protocol: DMX-512, Artnet
• Control personality: 12, 20,120 Channels
• Optical system:
• Dimmer: 0-100%
• Dimmer curves: Linear, Square, I-Square, S curve
• Strobe: 0-20Hz
• Movement:
• Pan: 540° & Continuous
• Tilt: 270° & Continuous
• Pan/Tilt resolution: 16 bit
• Special: Pan/ Tilt reverse & Black out by DMX
• Physical:
• Color: Black
• Housing: Metal & Flame retardant plastic
• Data connections: XLR 3p & RJ-45
• Power connections: Pro power in- & output
• Dimensions: 360 x 230 x 480 mm
• Weight: 13 kg
• Certification and Safety:
• Certification: CE
• Max. ambient temp: 40°

Download

Ingen download tilgængelig
