Beskrivelse
Detaljer
• DMX, Klingnet & artnet
• Built-in Ethernet switch
• Ready to use
• Built-in programs

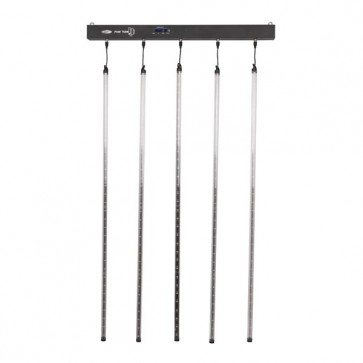

The Pixel Tube set creates dynamic and stunning visual effects to any venue or gig. Multiple Pixel Tubes even can create impressive 3D effects. Controlling of the Pixel Tubes is easy by DMX, Artnet or Klingnet allowing pixel mapping or full media control. Every tube is 150cm long and contains 32 pixels with a pitch of 45mm. Due to the transparent tubes the Pixel Tube Set has an viewing angle of 360 degrees.
• Built-in Ethernet switch
• Ready to use
• Built-in programs
The Pixel Tube set creates dynamic and stunning visual effects to any venue or gig. Multiple Pixel Tubes even can create impressive 3D effects. Controlling of the Pixel Tubes is easy by DMX, Artnet or Klingnet allowing pixel mapping or full media control. Every tube is 150cm long and contains 32 pixels with a pitch of 45mm. Due to the transparent tubes the Pixel Tube Set has an viewing angle of 360 degrees.
Specifikationer
Detaljer
• Light source: 5050SMD RGB LED
• Pixel Pitch: 45mm
• Included tubes: 5
• Tube length: 150cm (not extendable)
• Beam angle: 360°
• Refresh rate: >500 Hz
• Operation: Master/Slave, DMX, Artnet, Klingnet,
• DMX Channels: 8, 150, 225, 300, 375, 450, 480
• Power supply: 100-240VAC?50/60Hz
• Power consumption: 90W max @FO
• Mounting: top mounting points 3x M8 and 2x M10
• Bar Size: 65 x 72 x 1050mm
• Operating temperature: -5°C - +40°C
• Cooling: Convection
• Power connection: Blue/White power connector
• Data connection: RJ45 in/out. Built-in switch
• Environment: IP-20
• Weight: 4 kg
• Pixel Pitch: 45mm
• Included tubes: 5
• Tube length: 150cm (not extendable)
• Beam angle: 360°
• Refresh rate: >500 Hz
• Operation: Master/Slave, DMX, Artnet, Klingnet,
• DMX Channels: 8, 150, 225, 300, 375, 450, 480
• Power supply: 100-240VAC?50/60Hz
• Power consumption: 90W max @FO
• Mounting: top mounting points 3x M8 and 2x M10
• Bar Size: 65 x 72 x 1050mm
• Operating temperature: -5°C - +40°C
• Cooling: Convection
• Power connection: Blue/White power connector
• Data connection: RJ45 in/out. Built-in switch
• Environment: IP-20
• Weight: 4 kg
